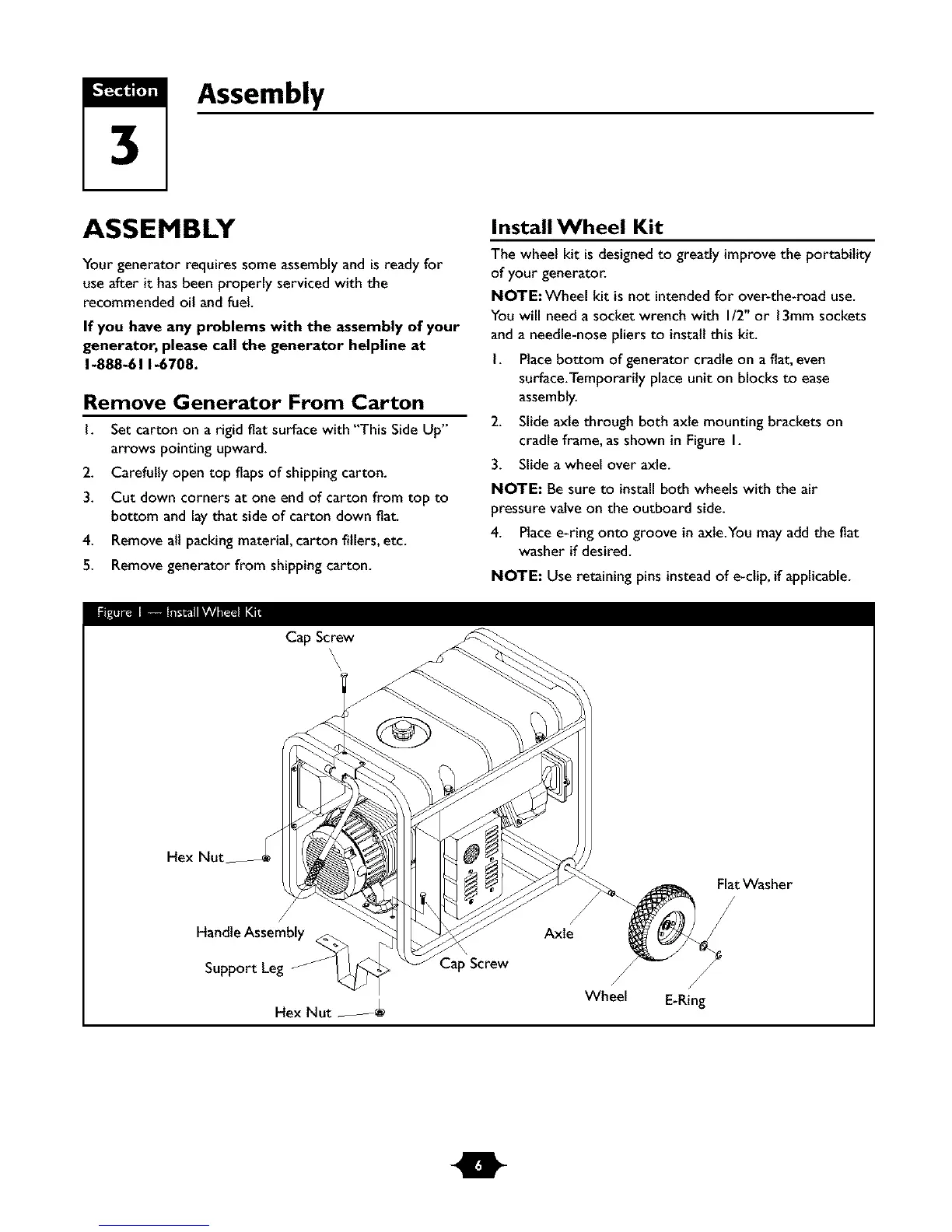

ASSEMBLY
Your generator requires some assembly and isready for
use after it has been properly serviced with the
recommended oil and fuel.
If you have any problems with the assembly of your
generator, please call the generator helpline at
1-888-61 1-6708.
Remove Generator From Carton
I. Set carton on a rigid fiat surface with "This Side Up"
arrows pointing upward.
2. Carefully open top flapsof shipping carton.
3. Cut down corners at one end of carton from top to
bottom and laythat side of carton down fiat
4. Removeall packing material, carton fillers, etc.
5. Removegenerator from shipping carton.
Install Wheel Kit
The wheel kit isdesigned to greatly improvethe portability
of your generator.
NOTE: Wheel kit is not intendedfor over-the-road use.
You will need a socket wrench with I/2" or 13mm sockets
and a needle-nose pliers to install this kit.
I. Placebottom of generator cradle on afiat, even
surface.Temporarily place unit on blocks to ease
assembly.
2. Slide axle through both axle mounting brackets on
cradle frame, as shown in Figure I.
3. Slide a wheel over axle.
NOTE: Be sure to install both wheels with the air
pressure valve on the outboard side.
4. Placee-ring onto groove in axle.You may add the fiat
washer if desired.
NOTE: Use retaining pins insteadof e-clip, if applicable.
Cap Screw
\
\
\
Hex Nut
/
/
HandleAssembly
Support Leg
Hex Nut _
Cap Screw
Axle
J
Wheel
/
E-Ring
Flat Washer
