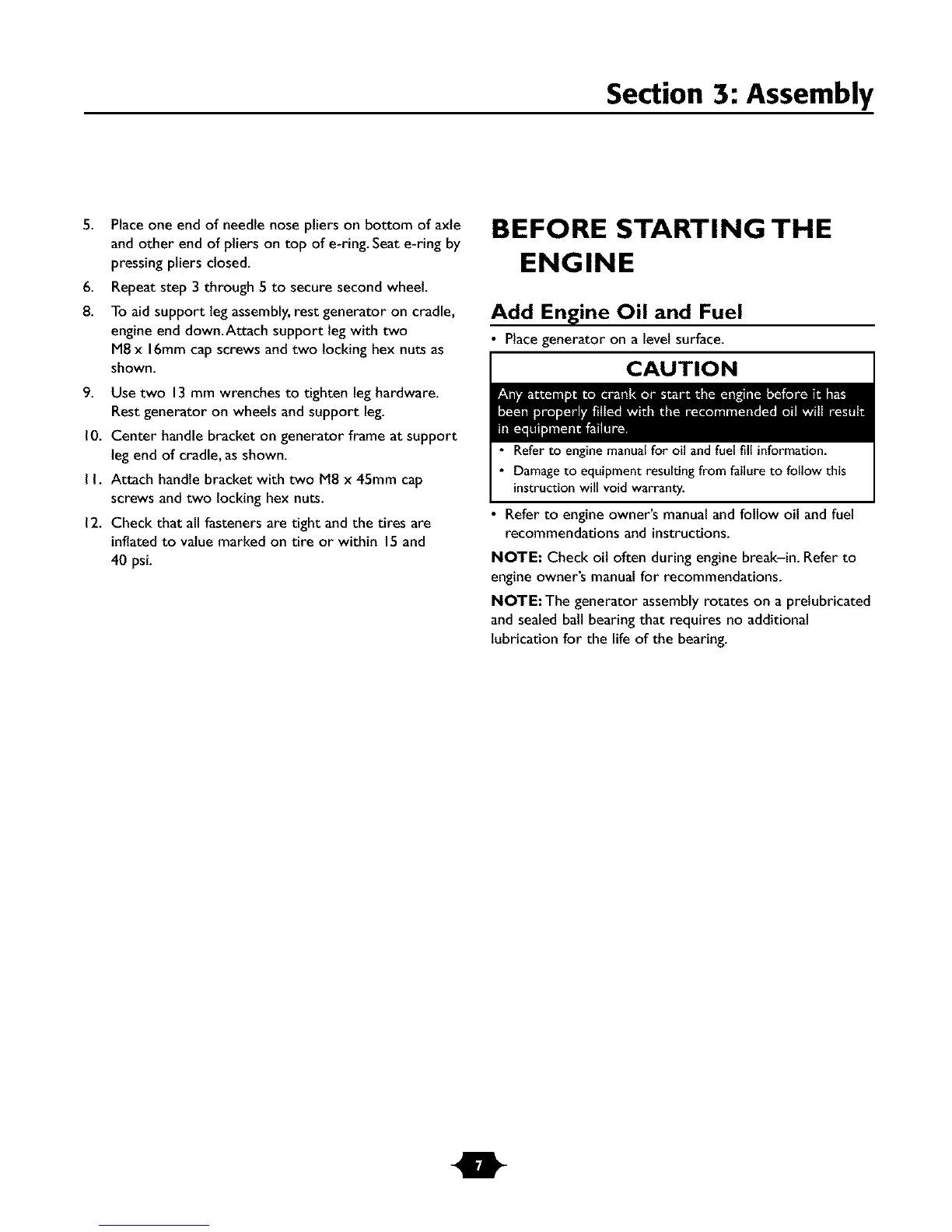

Section 3: Assembly
5. Placeone end of needlenose pliers on bottom of axle
and other end of pliers on top of e-ring. Seate-ring by
pressing pliers closed.
6. Repeat step 3 through 5 to secure second wheel.
8. To aid support leg assembly,rest generator on cradle,
engine end down.Attach support leg with two
M8x 16mm cap screws and two locking hex nuts as
shown.
9. Use two 13 mm wrenches to tighten leg hardware.
Rest generator on wheels and support leg.
10. Center handle bracket on generator frame at support
leg end of cradle, as shown.
I I. Attach handle bracket with two M8 x 45mm cap
screws and two locking hex nuts.
12. Check that all fasteners are tight and the tires are
inflated to value marked on tire or within 15 and
40 psi.
BEFORE STARTING THE
ENGINE
Add Engine Oil and Fuel
• Place generator on a level surface.
CAUTION
• Refer to engine manualfor oil andfuel fill information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
• Refer to engine owner's manual and follow oil and fuel
recommendations and instructions.
NOTE: Check oil often during engine break-in. Refer to
engine owner's manual for recommendations.
NOTE: The generator assembly rotates on a prelubricated
and sealed ball bearing that requires no additional
lubrication for the life of the bearing.
