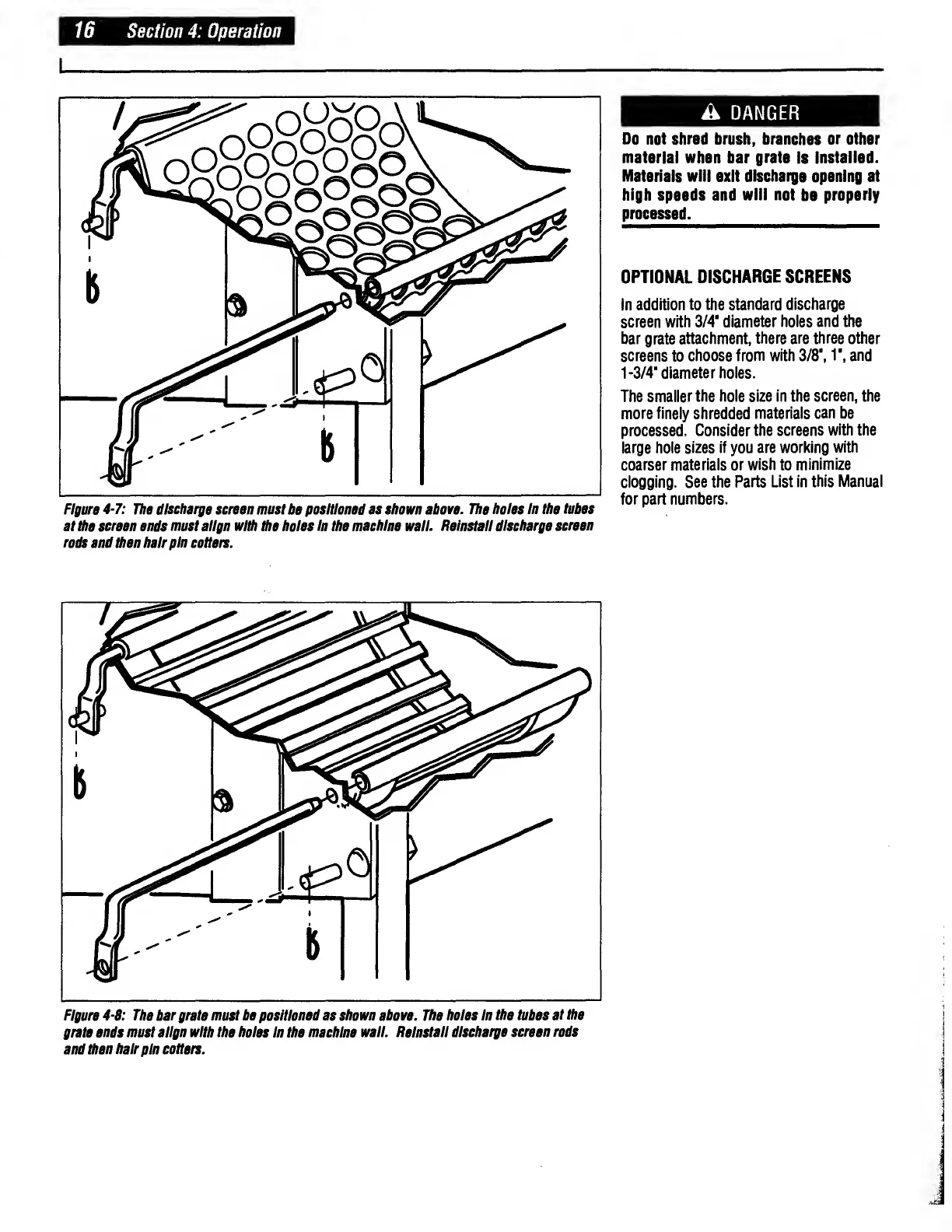

16 Section 4: Operation
2qPXo%o°>&
Figure 4-7: The discharge screen must be positioned as shown above. The holes In the tubes
at the screen ends must align with the holes In the machine wall. Reinstall discharge screen
rods and then hairpin cotters.
A DANGER
Do not shred brush, branches or other
material when bar grate is installed.
Materials will exit discharge opening at
high speeds and will not be properly
processed.
OPTIONAL DISCHARGE SCREENS
In addition to the standard discharge
screen with 3/4' diameter holes and the
bar grate attachment, there are three other
screens to choose from with 3/8“, 1', and
1-3/4“ diameter holes.
The smaller the hole size in the screen, the
more finely shredded materials can be
processed. Consider the screens with the
large hole sizes if you are working with
coarser materials or wish to minimize
clogging. See the Parts List in this Manual
for part numbers.
Figure 4-8: The bar grate must be positioned as shown above. The holes In the tubes at the
grate ends must align with the holes In the machine wall. Reinstall discharge screen rods
and then hairpin cotters.
