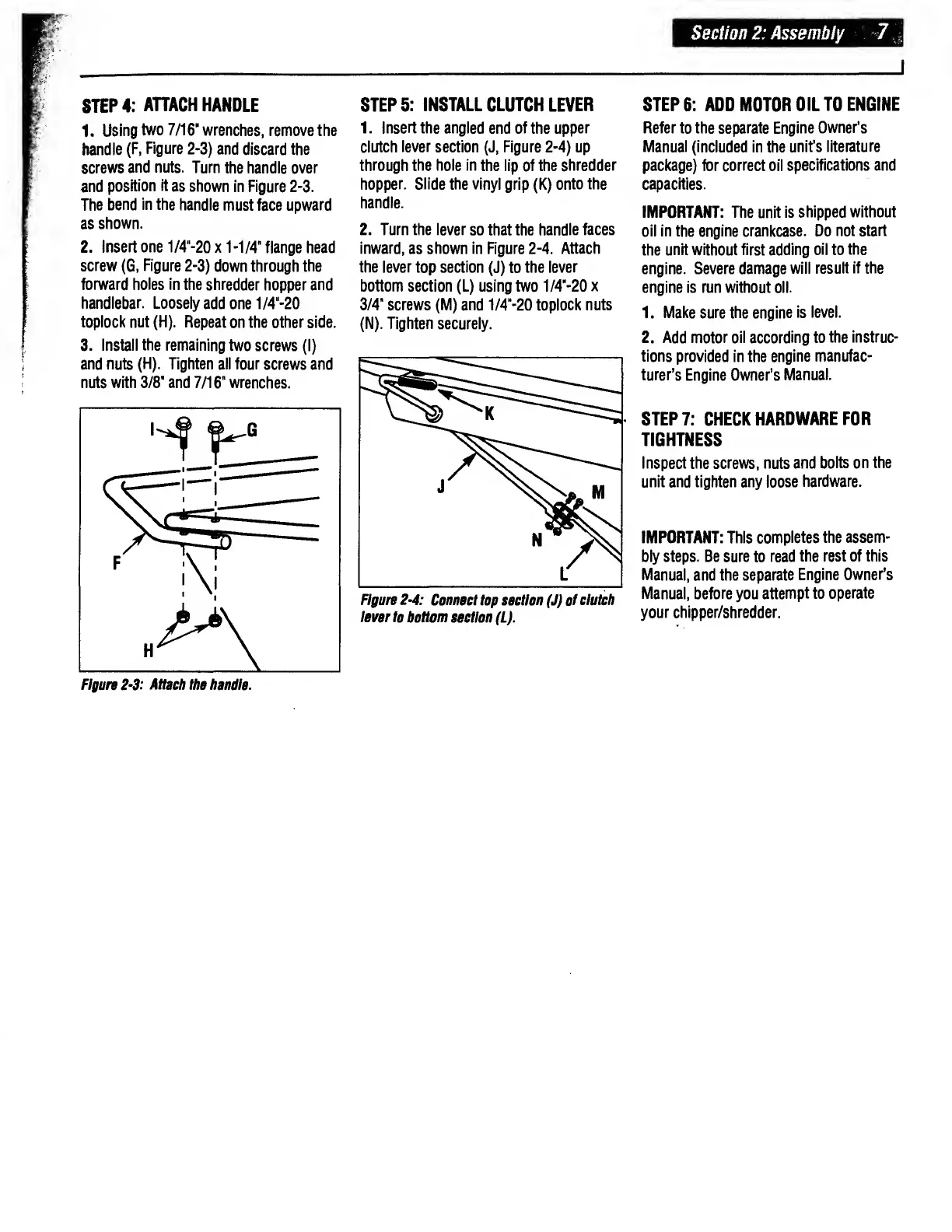

STEP 4: ATTACH HANDLE
1. U sing two 7/16" wrenches, remove the
handle (F, Figure 2-3) and discard the
screws and nuts. Turn the handle over
and position it as shown in Figure 2-3.
The bend in the handle must face upward
as shown.
2. Insert one 1/4“-20 x 1-1/4" flange head
screw (G, Figure 2-3) down through the
forward holes in the shredder hopper and
handlebar. Loosely add one 1/4“-20
toplock nut (H). Repeat on the other side.
3. Install the remaining two screws (I)
and nuts (H). Tighten all four screws and
nuts with 3/8" and 7/16’ wrenches.
Section 2: Assembly 7
J
STEP 5: INSTALL CLUTCH LEVER
1. Insert the angled end of the upper
clutch lever section (J, Figure 2-4) up
through the hole in the lip of the shredder
hopper. Slide the vinyl grip (K) onto the
handle.
2. Turn the lever so that the handle faces
inward, as shown in Figure 2-4. Attach
the lever top section (J) to the lever
bottom section (L) using two 1/4'-20 x
3/4' screws (M) and 1/4"-20 toplock nuts
(N). Tighten securely.
Figure 2-4: Connect top section (J) of dutch
lever to bottom section (L).
STEP 6: ADD MOTOR OIL TO ENGINE
Refer to the separate Engine Owner’s
Manual (included in the unit’s literature
package) for correct oil specifications and
capacities.
IMPORTANT: The unit is shipped without
oil in the engine crankcase. Do not start
the unit without first adding oil to the
engine. Severe damage will result if the
engine is run without oil.
1. Make sure the engine is level.
2. Add motor oil according to the instruc¬
tions provided in the engine manufac¬
turer’s Engine Owner’s Manual.
STEP 7: CHECK HARDWARE FOR
TIGHTNESS
Inspect the screws, nuts and bolts on the
unit and tighten any loose hardware.
IMPORTANT: This completes the assem¬
bly steps. Be sure to read the rest of this
Manual, and the separate Engine Owner’s
Manual, before you attempt to operate
your chipper/shredder.
