Section
31 Features
and Controls
A WARNING
Before operating your machine, carefully read and under¬
stand all safety, controls, and operating instructions in this
Manual, in the separate Engine Owner’s Manual, and on the
decals on the machine.
Failure to follow these instructions can result in serious per¬
sonal injury.
INTRODUCTION
This Section describes the location and function of the main fea¬
tures and controls on your chipper/shredder. Refer to Section 4:
Operation for detailed operating instructions.
IMPORTANT: Refer to the separate Engine Owner’s Manual for
detailed information about the controls on the engine.
A DANGER
The cutting blades inside the chipper/shredder chamber
rotate when the engine is started. Contact with rotating
blades will cause severe personal injury.
Keep hands, face, feet and clothing away from chipper chute
inlet, shredder hopper inlet, discharge opening and dis¬
charge area at all times.

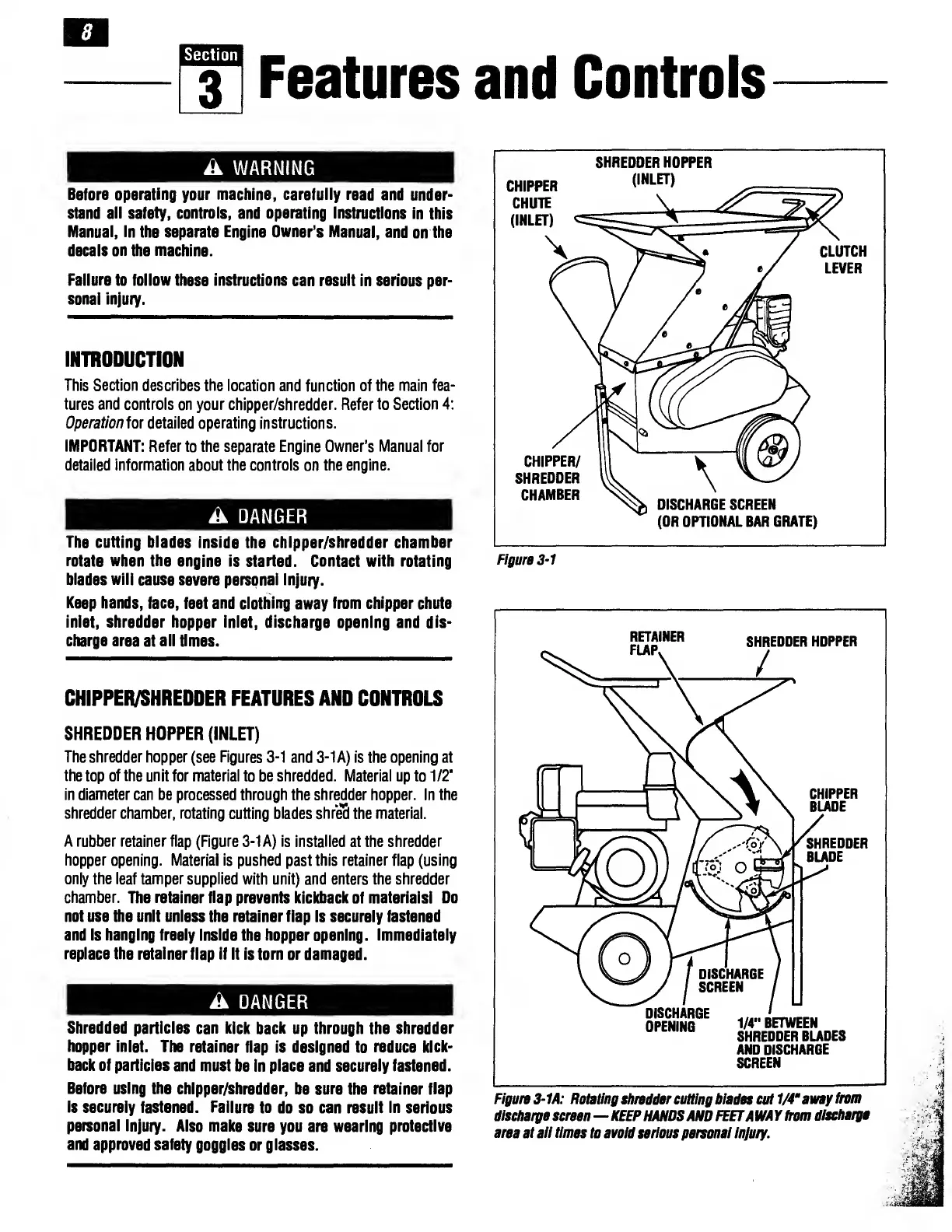

CHIPPER/SHREDDER FEATURES AND CONTROLS
SHREDDER HOPPER (INLET)
The shredder hopper (see Figures 3-1 and 3-1 A) is the opening at
the top of the unit for material to be shredded. Material up to 1/2'
in diameter can be processed through the shredder hopper. In the
shredder chamber, rotating cutting blades shreS the material.
A rubber retainer flap (Figure 3-1 A) is installed at the shredder
hopper opening. Material is pushed past this retainer flap (using
only the leaf tamper supplied with unit) and enters the shredder
chamber. The retainer flap prevents kickback of materialsl Do
not use the unit unless the retainer flap is securely fastened
and is hanging freely inside the hopper opening. Immediately
replace the retainer flap if it is torn or damaged.
A DANGER
Shredded particles can kick back up through the shredder
hopper inlet. The retainer flap is designed to reduce kick-
back of particles and must be in place and securely fastened.
Before using the chipper/shredder, be sure the retainer flap
is securely fastened. Failure to do so can result in serious
personal injury. Also make sure you are wearing protective
and approved safety goggles or g lasses.
Figure 3-1A: Rotating shredder cutting blades cut 1/4"away from
discharge screen—KEEP HANDS AND FEET AWAY from discharge
area at all times to avoid serious personal Injury.
