Troy-Bilt 5024 User Manual

Auger Shaft
At least once a season, remove the shear pins from the auger
shaft. Spray lubricant inside the shaft and around the spacers
and the flange bearings found at either end of the shaft.
See Fig. 6-3.
Adjustments
Shift Cable
If the full range of speeds (forward and reverse) cannot be
achieved, refer to the figures to the right and adjust the shift
cable as follows:
Place the shift lever in the fastest forward speed position.
Loosen the hex nut on the shift cable index bracket. See
Fig. 6-4.
Pivot the bracket downward to take up slack in the cable.
Retighten the hex nut.
Auger Control
Refer to the Assembly and Set-up section for instructions on
adjusting the auger control cable.
Chute Assembly
Refer to the Assembly and Set-up section for instructions on
adjusting the skid shoes chute assembly.
Skid Shoes
Refer to the Assembly and Set-up section for instructions on
adjusting the skid shoes.
1.
2.
3.
4.

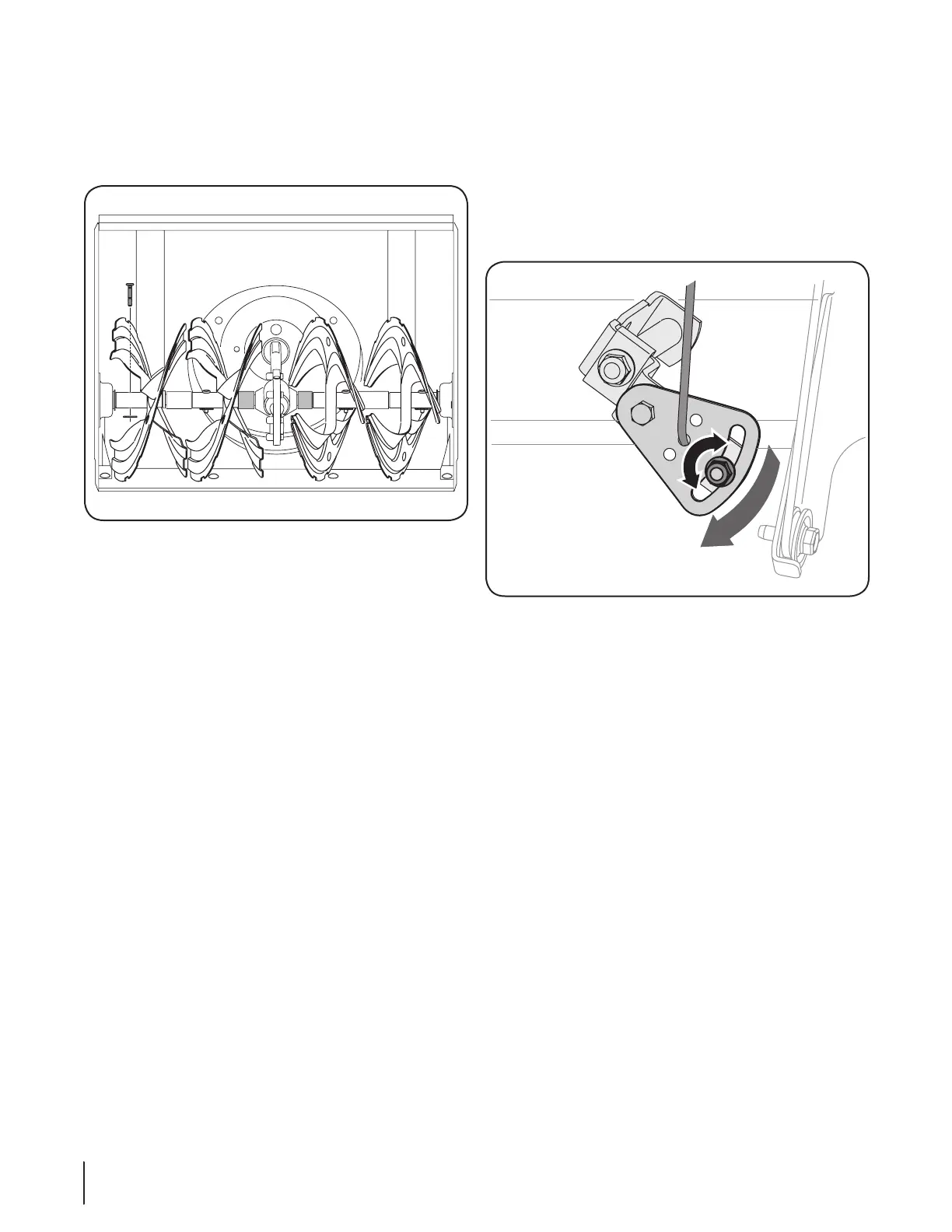

Figure 6-4
Figure 6-3
16 sectiOn 6— Maintenance & adjustMents
