Troy-Bilt Bronco CRT Service Manual

Troy-Bilt Small Frame Tillers
12
6.35. Remove both large E-Clips from the right and left
sides of the wheel shaft using a large flat blade
screwdriver. See Figure 6.35.
7. TRANSMISSION DISASSEMBLY:
7.1. Thoroughly clean the wheel shaft and tine shaft
using contact cleaner and a shop rag. See Fig-
ure 7.1.
NOTE: Lubricate both shafts before assembly.
7.2. Remove all four hex flange screws securing the
front transmission cover and gasket to the trans-
mission housing assembly using a 1/2” socket.
See Figure 7.2.
7.3. Remove the front transmission cover and clean
it.
7.4. Position a suitable oil drain pan directly in front
of the bench. See Figure 7.4.
7.5. Rotate the transmission 180° to the right and
drain the transmission assembly into a suitable
containers.
NOTE: When refilling an empty transmission,
use only GL-4 gear oil having a viscosity of SAE
85W-140 (Part Number GW-1360A) or SAE 140.
The Tuffy transmission will use approximately?
ounces of gear oil.

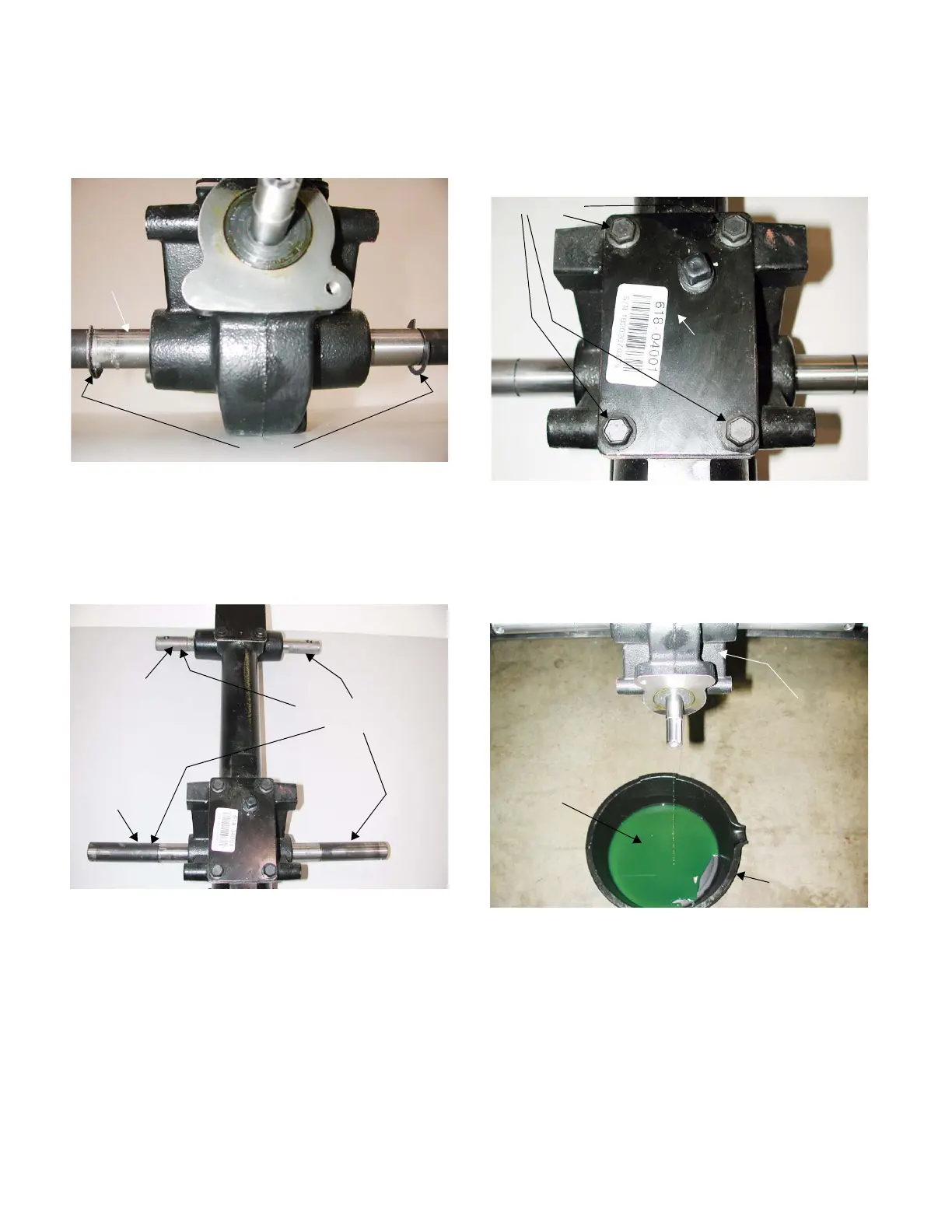

Figure 6.35
E-Clips
Wheel Shaft
Figure 7.1
Wheel Shaft
Tine Shaft
Thoroughly Clean
Surfaces
Figure 7.2
Hex Screws
Front
Transmission
Cover
Figure 7.4
Drain Pan
85W-140
Gear Oil
GL-4
Transmission
Assembly
