Troy-Bilt Bronco CRT Service Manual

Troy-Bilt Small Frame Tillers
21

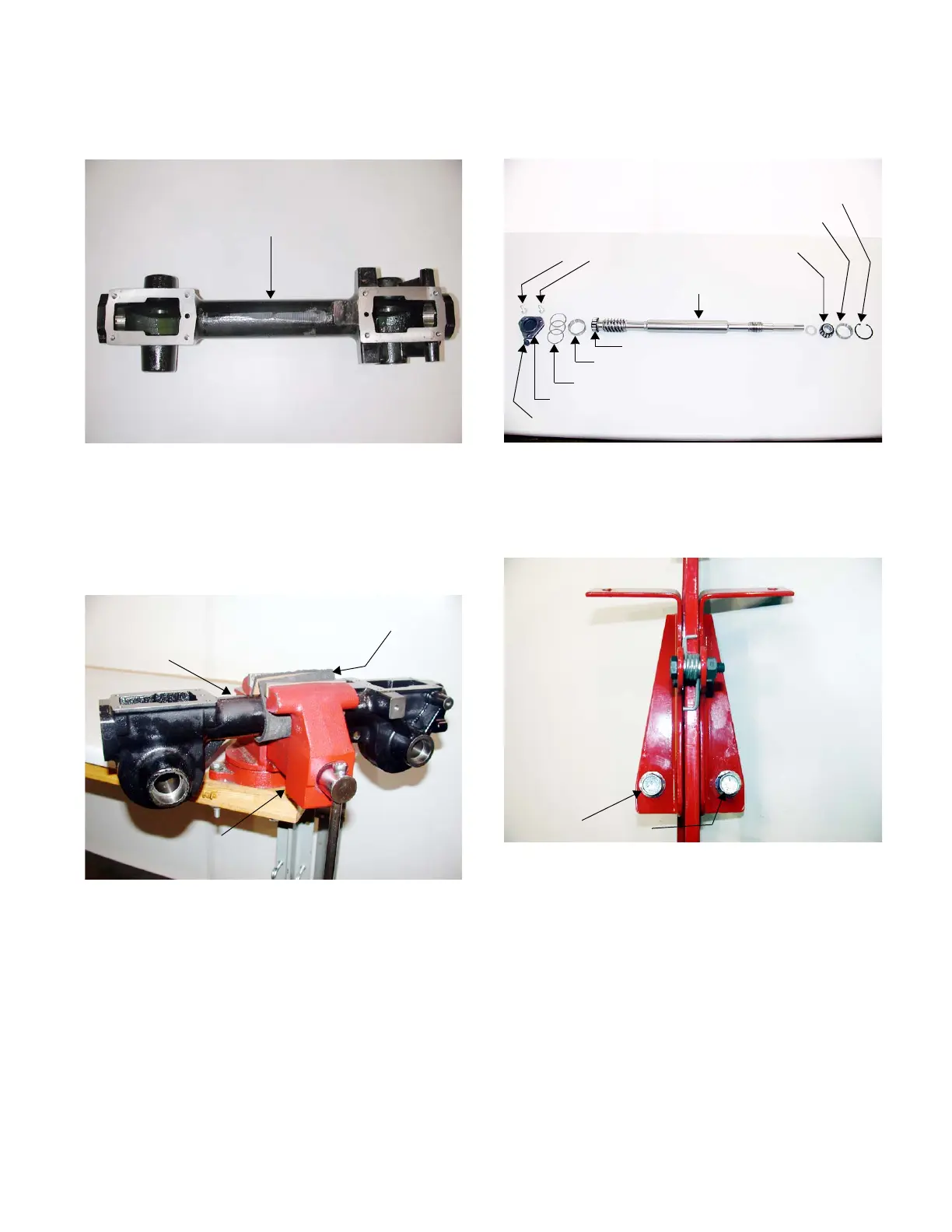

7.61. Inspect the transmission housing for wear or
damage. See Figure 7.61.
8. TRANSMISSION ASSEMBLY:
8.1. Thoroughly clean the transmission housing.
8.2. Set the transmission housing in a vice that is
lined with a protective material. See Figure 8.2.
Figure 7.61
Transmission Housing
Figure 8.2
Transmission Housing
Protective Material
Vice
8.3. Make certain all the drive shaft components are
accounted for. See Figure 8.3.
8.4. Locate both hex flange screws that were secur-
ing the left and right hood brackets to the trans-
mission assembly. See Figure 8.4.
Figure 8.3
Snap Ring
Tapered Roller
Bearing
Race
Drive Shaft Assembly
Tapered Roller Bearing
Race
Shims
Rear Bearing Cap
Hex Flange Screws
Short Hex Flange Screw and Lock Washer
Figure 8.4
Hex Flange Screws
