2. REVERSE CLUTCH CABLE ADJUSTMENT:
2.1. Fully engage the reverse clutch cable using the
T-knob. See Figure 2.1.
2.2. Measure the amount of exposed clutch cable
between the end of the threaded clutch cable
end and the Z-fitting. See Figure 2.2.
2.3. Release the reverse clutch cable T-knob.
2.4. Loosen the hex jam nuts securing the threaded
portion of the reverse clutch cable to the belt
cover bracket using two 1/2” wrenches.

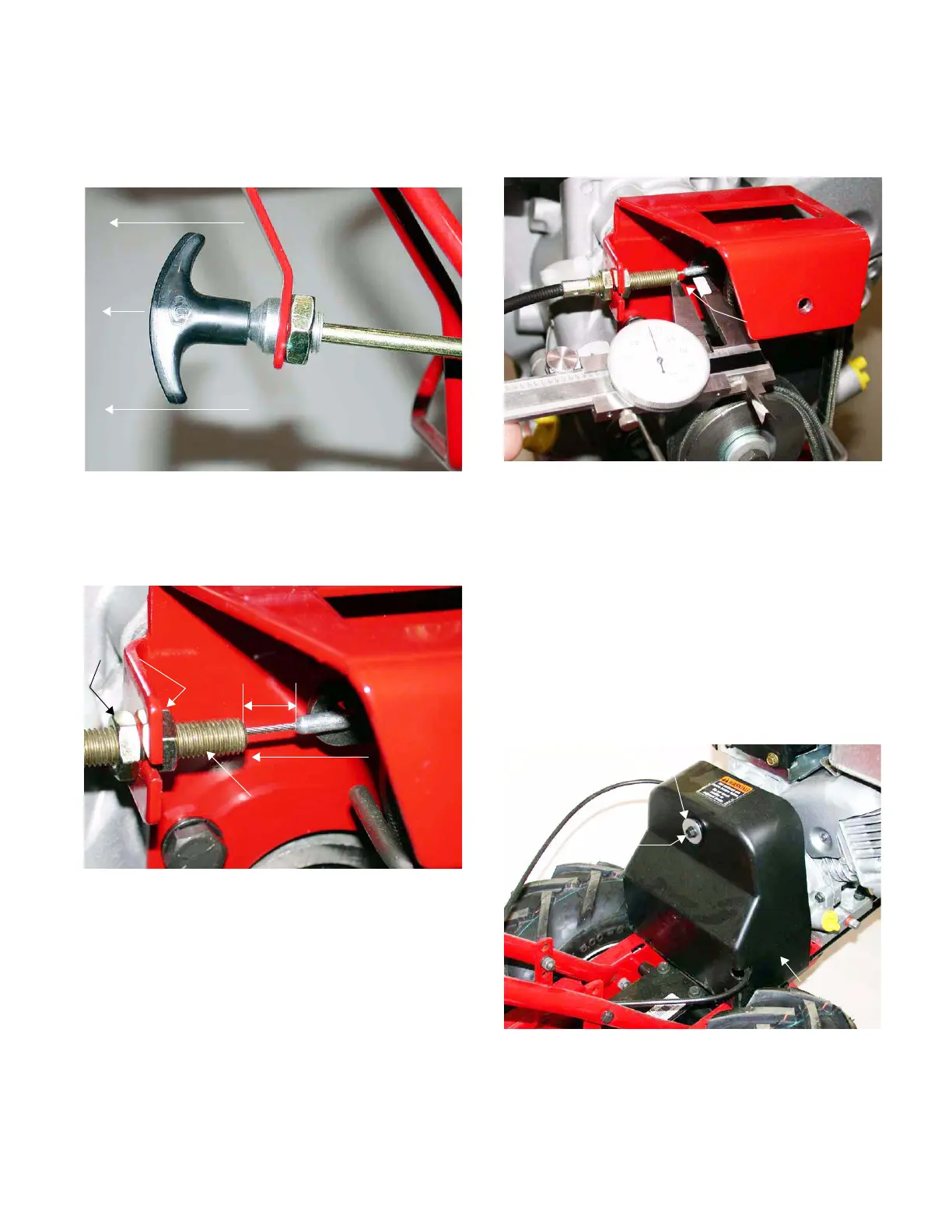

Figure 2.1
Pull Out
Pull Out
Figure 2.2
Exposed Clutch Cable
Cable Fully Engaged
Threaded Clutch Cable End
Hex Jam
Nuts
2.5. Adjust both hex jam nuts until the exposed por-
tion of the reverse clutch cable is between 1/8”
and 1/4” when it is engaged. See Figure 2.5.
2.6. Secure the hex jam nuts using two 1/2”
wrenches.
2.7. Check the adjustment on last time.
2.8. Install the belt cover in the reverse order of
removal, per the Reverse Clutch Cable Replace-
ment section.
3. REVERSE DRIVE BELT REPLACEMENT:
3.1. Remove the hex flange screw and large flat
washer securing the belt cover to the belt cover
bracket using a 3/8” socket. See Figure 3.1.
3.2. Pivot the belt cover around the forward clutch
cable until it is out of the work area.
Figure 2.5
1/8” to 1/4”
Figure 3.1
Hex Screw
Flat Washer
Belt Cover
