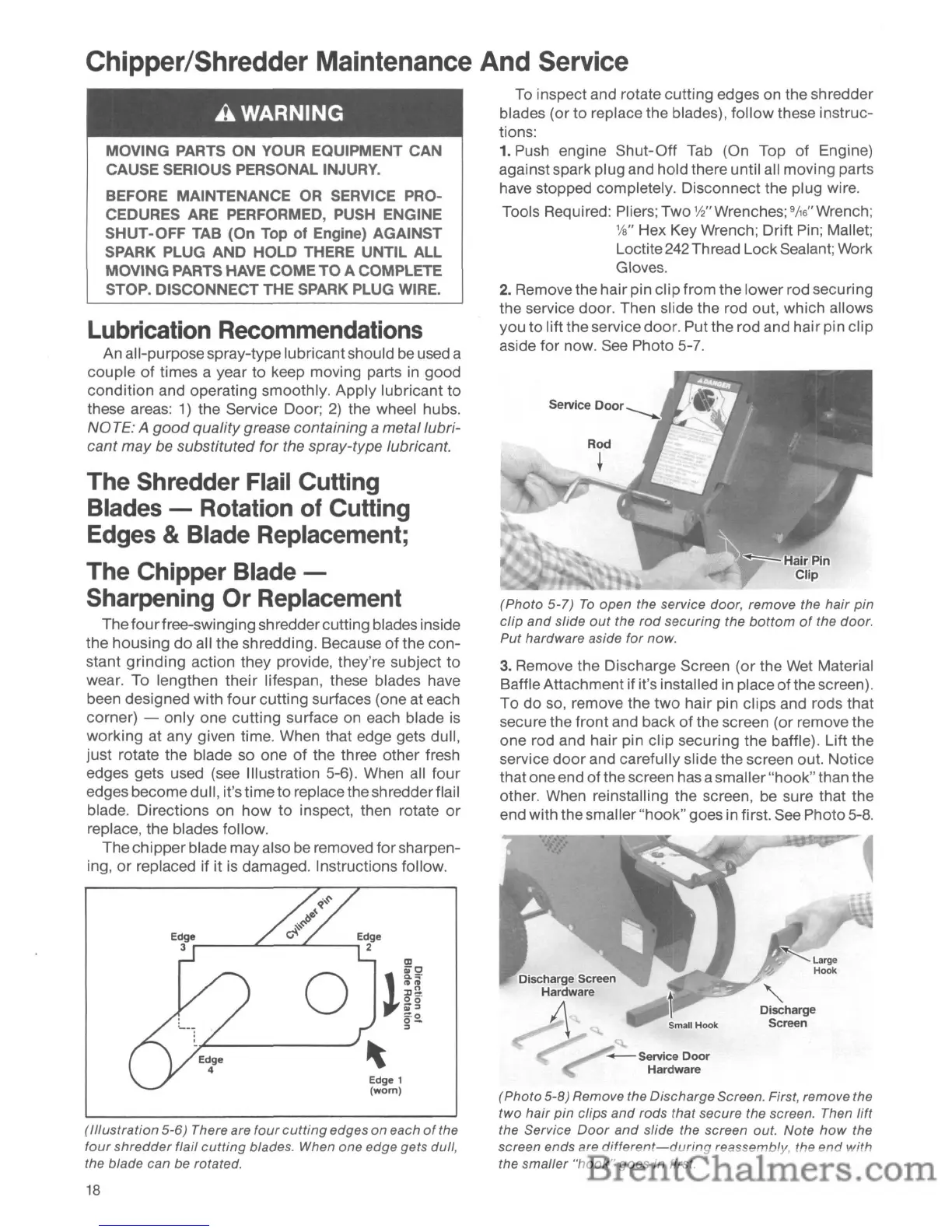

Chipper/Shredder
Maintenance
And
Service
A
WARNING
MOVING PARTS ON YOUR EQUIPMENT CAN
CAUSE SERIOUS PERSONAL INJURY.
BEFORE MAINTENANCE
OR
SERVICE PRO-
CEDURES
ARE
PERFORMED, PUSH ENGINE
SHUT-OFF
TAB
(On Top
of
Engine) AGAINST
SPARK PLUG AND HOLD THERE UNTIL
ALL
MOVING PARTS HAVE COME
TO
A COMPLETE
STOP. DISCONNECT THE
SPARK
PLUG WIRE.
Lubrication
Recommendations
An all-purposespray-type lubricantshould be used a
couple
of
times a year to keep moving parts
in
good
condition
and operating smoothly. Apply lubricant to
these areas:
1)
the Service Door;
2)
the wheel hubs.
NO
TE:
A
good
quality grease containing a meta/lubri-
cant
may
be substituted for the spray-type lubricant.
The Shredder
Flail
Cutting
Blades
-
Rotation
of
Cutting
Edges
&
Blade
Replacement;
The Chipper
Blade
-
Sharpening Or
Replacement
Thefourfree-swinging shreddercutting blades inside
the housing
do
all the shredding. Because
of
the
con-
stant
grinding
action they provide, they're subject
to
wear. To lengthen their lifespan, these blades have
been designed with
four
cutting surfaces (one at each
corner) - only one cutting surface on each blade is
working at any given time. When that edge gets dull,
just rotate the blade so one
of
the three other fresh
edges gets used (see Illustration 5-6). When all
four
edges become dull, it's time
to
replace the
sh
redder flaiI
blade. Directions on
how
to
inspect, then rotate
or
replace, the blades follow.
The chipper blade may also be removed
for
sharpen-
ing,
or
replaced if it is damaged. Instructions follow.
Edge 1
(worn)
(Illustration
5-6)
There are
four
cutting
edges on each
of
the
four
shredder
flail
cutting
blades. When one edge gets dull,
the blade can be rotated.
18
To inspect and rotate cutting edges on the shredder
blades (or
to
replace the blades),
follow
these instruc-
tions:
1.
Push engine Shut-Off Tab (On Top of Engine)
against spark plug and hold there until all moving parts
have stopped completely. Disconnect the plug wire.
Tools Required: Pliers; Two
1f2"Wrenches; 9j,s"Wrench;
Va"
Hex Key Wrench; Drift Pin; Mallet;
Loctite
242
Thread Lock Sealant; Work
Gloves.
2.
Remove the hair pin clip from the lower rod securing
the service door. Then slide the rod out, which allows
you
to
lift the service door. Put the rod and hair pin clip
aside for now. See Photo 5-7.
(Photo
5-7)
To
open the service door, remove the
hair
pin
clip
and
slide
out
the
rod
securing
the
bottom
of
the door.
Put hardware aside for now.
3.
Remove the Discharge Screen (or the Wet Material
Baffle Attachment if it's installed in place
of
the screen).
To
do
so, remove the
two
hair pin clips and rods that
secure the front and back
of
the screen (or remove the
one rod and hair pin clip securing the baffle). Lift the
service
door
and carefully slide the screen out. Notice
that one end
of
the screen has asmaller "hook" than the
other. When reinstalling the screen, be sure that the
end with the smaller "hook" goes in first. See Photo 5-8.
"-
Discharge
Screen
- Service
Door
Hardware
(Photo
5-8)
Remove the Discharge Screen. First, remove the
two
hair
pin
clips
and
rods that secure the screen. Then
lift
the Service
Door
and
slide the screen out. Note
how
the
screen ends are
different-during
reassembly, the
end
with
the smaller
"hook"
goes in first.
