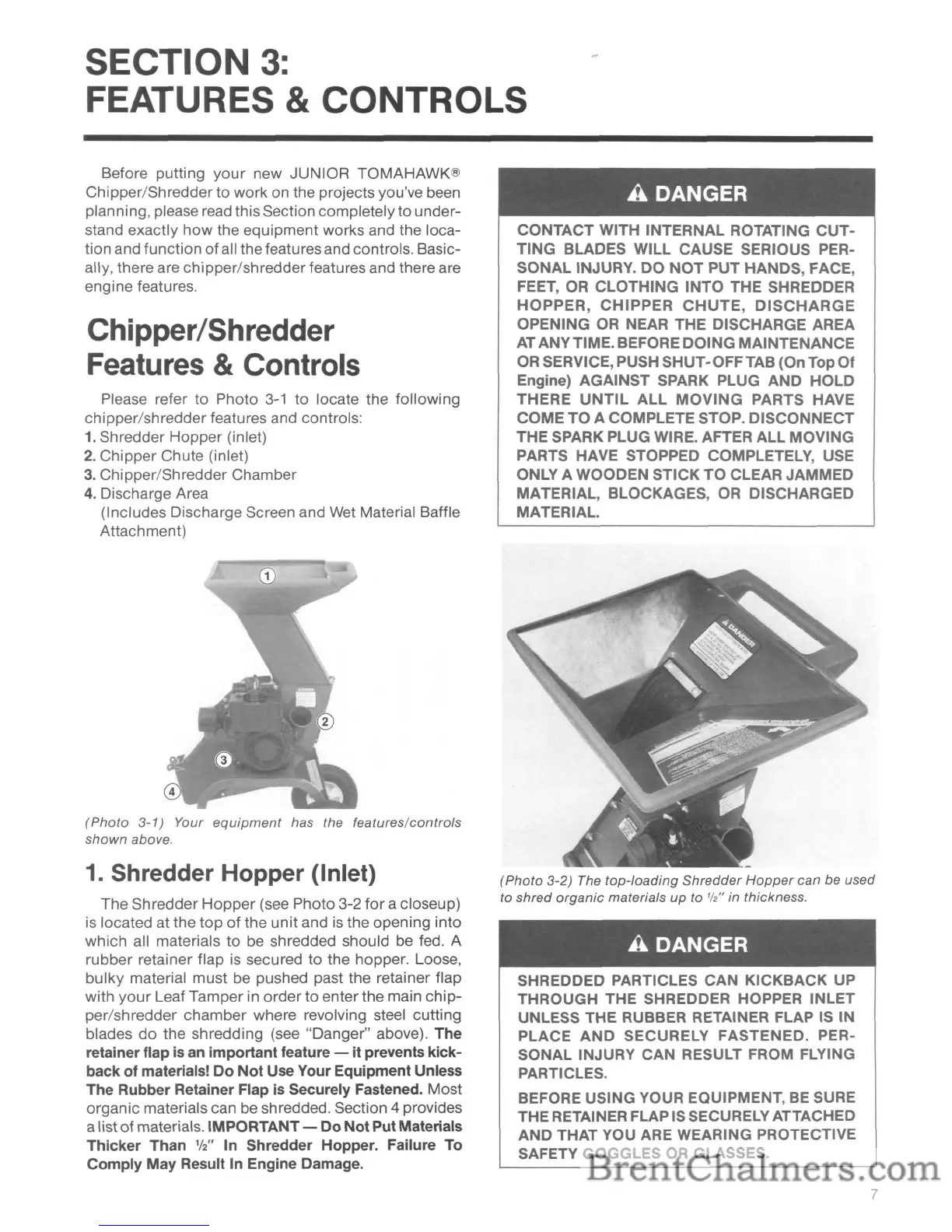

SECTION
3:
FEATURES &CONTROLS
Before putting
your
new JUNIOR TOMAHAWK®
Chipper/Shredder to work on the projects you've been
planning, please read this Section completely to under-
stand exactly
how
the equipment works and the loca-
tion and function ofall the features and controls. Basic-
ally, there are chipper/shredder features and there are
engine features.
Chipper/Shredder
Features
&Controls
Please refer to Photo
3-1
to locate the following
chipper/shredder features and controls:
1.
Shredder Hopper (inlet)
2.
Chipper Chute (inlet)
3. Chipper/Shredder Chamber
4. Discharge Area
(Includes Discharge Screen and Wet Material Baffle
Attachment)
(Photo
3-1)
Your
equipment
has the
features/controls
shown
above.
1.
Shredder Hopper (Inlet)
The Shredder
Hopper
(see Photo 3-2
for
a closeup)
is located at the
top
of
the unit and is the opening into
which
all materials
to
be shredded should be fed. A
rubber retainer flap is secured to the hopper. Loose,
bulky material must be pushed past the retainer flap
with
your
Leaf Tamper in
order
to enter the main
chip-
per/shredder chamber where revolving steel cutting
blades
do
the shredding (see "Danger" above). The
retainer flap
is
an
important feature -
it
prevents kick-
back
of
materials! Do Not Use Your Equipment Unless
The Rubber Retainer Flap
is
Securely Fastened. Most
organic materials can be shredded. Section 4 provides
a list of materials.
IMPORTANT- Do NotPut Materials
Thicker Than
112"
In
Shredder Hopper. Failure
To
Comply May
Result
In
Engine Damage.
A
DANGER
CONTACT WITH INTERNAL ROTATING CUT-
TING
BLADES WILL CAUSE SERIOUS PER-
SONAL INJURY. DO
NOT
PUT HANDS, FACE,
FEET, OR CLOTHING INTO THE SHREDDER
HOPPER,
CHIPPER
CHUTE,
DISCHARGE
OPENING
OR
NEAR THE DISCHARGE AREA
AT
ANYTIME. BEFORE DOING MAINTENANCE
OR
SERVICE, PUSH SHUT-OFF
TAB
(On Top Of
Engine) AGAINST SPARK PLUG AND HOLD
THERE
UNTIL
ALL
MOVING
PARTS HAVE
COME
TO
A COMPLETE STOP. DISCONNECT
THE SPARK PLUG WIRE. AFTER ALL MOVING
PARTS HAVE STOPPED COMPLETELY, USE
ONLY A WOODEN STICK
TO
CLEAR JAMMED
MATERIAL, BLOCKAGES, OR DISCHARGED
MATERIAL.
(Photo
3-2) The
top-loading
Shredder
Hopper
can
be used
to
shred
organic
materials
up
to
112"
in thickness.
A
DANGER
I
SHREDDED PARTICLES CAN KICKBACK UP
THROUGH THE SHREDDER HOPPER INLET
UNLESS THE RUBBER RETAINER FLAP IS IN
PLACE AND SECURELY FASTENED. PER-
SONAL INJURY CAN RESULT FROM FLYING
PARTICLES.
BEFORE USING YOUR EQUIPMENT,
BE
SURE
THE RETAINER FLAP
IS
SECURELY ATTACHED
AND THAT YOU ARE WEARING PROTECTIVE
SAFETY GOGGLES
OR
GLASSES.
7
