SECTION
2:
INITIAL PREPARATION
STEP
1:
Inspection After Delivery
STEP
2:
Checklist
of
Components
Shipped
To
You
NowthatyourTROY-BILT® JUNIOR TOMAHAWK®
Chipper/Shredderhas arrived, you'll find it's easy to get
your
equipment ready
for
use. Be sure to follow all
directions
in
this Section!
~®
®

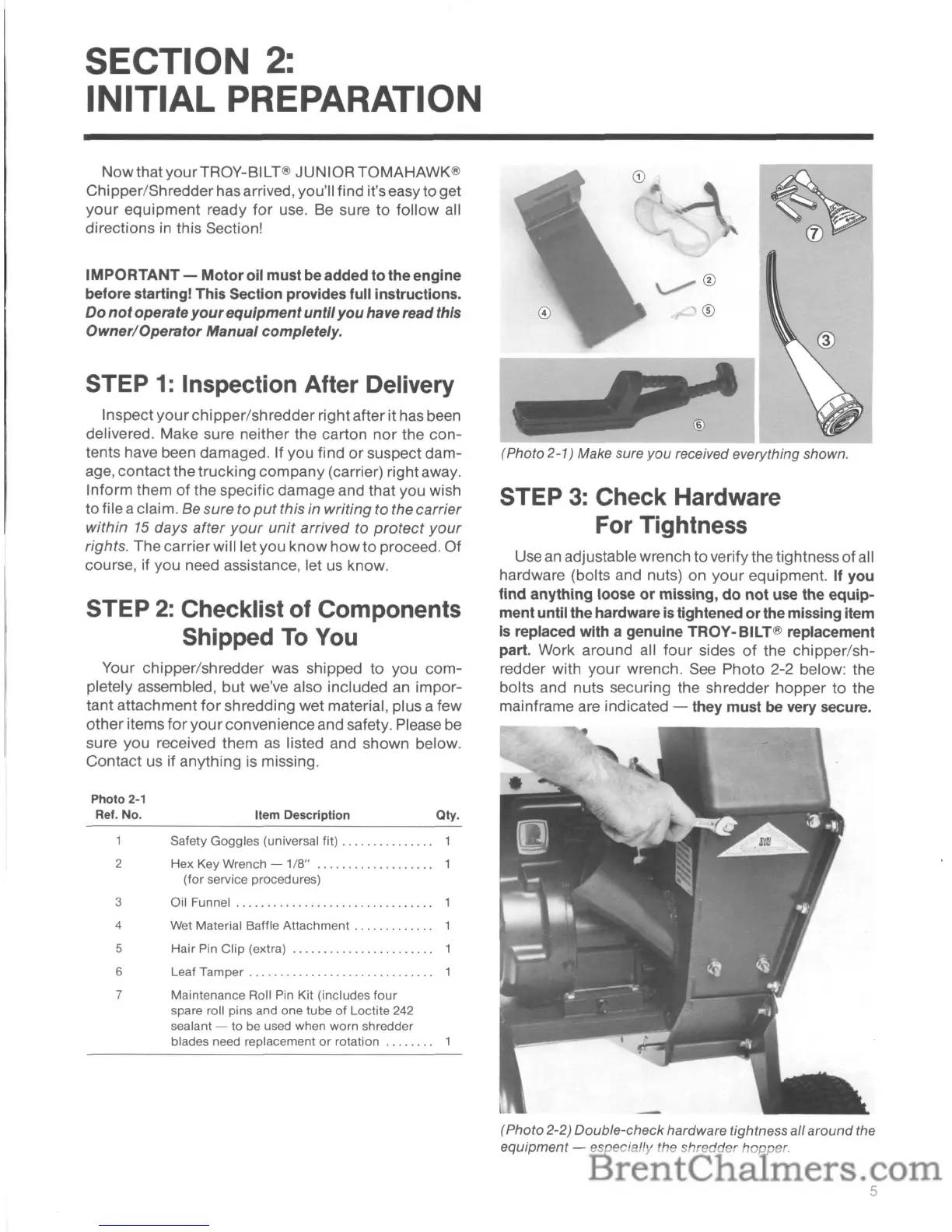

(Photo 2
-1
) Make sure
you
received everything shown.
STEP
3:
Check Hardware
For Tightness
Use
an
adjustable wrench to verify the tightness
of
all
hardware (bolts and nuts) on
your
equipment. If you
find
anything loose
or
missing,
do
not
use the equip-
mentuntil the hardware is tightened
or
the missing item
is replaced with a genuine TROY-BILT® replacement
part. Work around all
four
sides
of
the chipper/sh-
redder with
your
wrench. See Photo 2-2 below: the
bolts and nuts securing the shredder hopper to the
mainframe are indicated - they must
be
very secure.
Qty.
Item Description
2-1
Ref. No.
Your chipper/shredder was shipped to you com-
pletely assembled, but we've also included
an
impor-
tant attachment
for
shredding wet material, plus a few
otheritems
for
your
convenience and safety. Please be
sure you received them
as
listed and shown below.
Contact us if anything is missing.
Safety Goggles (universal fit) . . . .
..
. . . . . . .
..
1
2 Hex Key Wrench -
1/8"
1
(for
service procedures)
3 Oil Funnel
......................•.........
1
4 Wet Material Baffle
Attachment.
. . . . . . . . . .
..
1
5 Hair Pin Clip (extra) 1
6 Leaf
Tamper.
. . . . . . . . . . . . . . . . . . . . . . . . . . .
..
1
7 Maintenance Roll Pin Kit (includes
four
spare roll pins and one tube
of
Loctite 242
sealant - to be used when worn shredder
blades need replacement
or
rotation 1
IMPORTANT-
Motor
oil must be added to the engine
before starting! This Section provides full instructions.
Do
not
operate
your
equipment
until
you
have read this
Owner/Operator
Manual completely.
Inspect
your
chipper/shredder right after it has been
delivered. Make sure neither the carton nor the
con-
tents have been damaged. If you find
or
suspect dam-
age, contact the trucking company (carrier) right away.
Inform them of the specific damage and that you wish
to file aclaim.
Be sure to
put
this in writing to the carrier
within
15
days after
your
unit
arrived to
protect
your
rights. The carrier will let you
know
how
to proceed. Of
course, if you need assistance, let
us
know.
(Photo 2-2) Double-check hardware tightness all aroundthe
equipment - especially the shredder hopper.
