- 30 -
5.3 Setting Ethernet by Diagnostic Tool (For DA220 series)
The Diagnostic Utility is enclosed in the CD disk \Utilities directory or can be downloaded from
www.tscprinters.com website. Users can use Diagnostic Tool to setup the Ethernet by USB and Ethernet
interfaces. The following contents will instruct users how to configure the Ethernet by these interfaces.

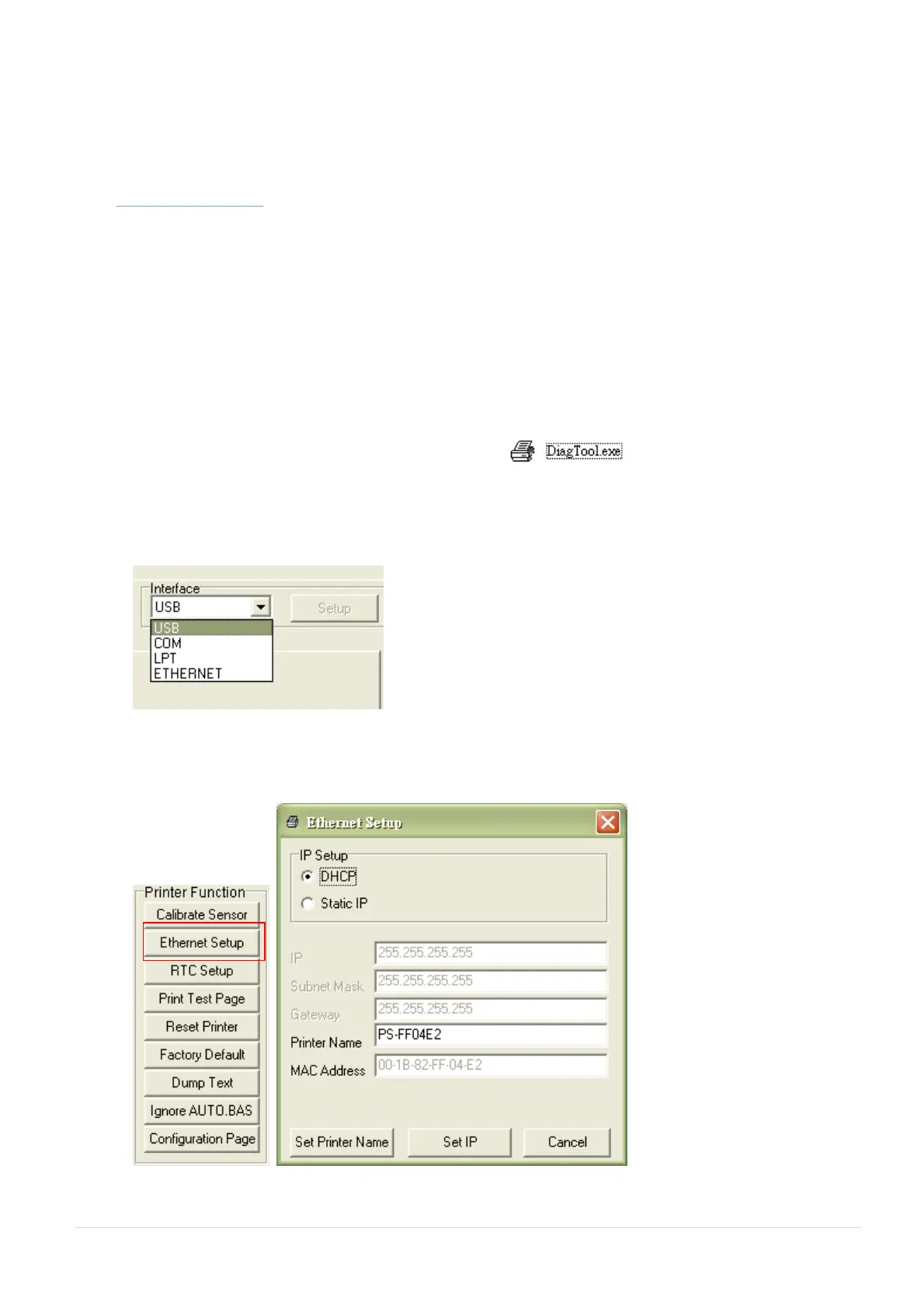

5.3.1 Using USB interface to setup Ethernet interface
1. Connect the USB cable between the computer and the printer.
2. Turn on the printer power.
3. Start the Diagnostic Utility by double clicking on the icon.
4. The Diagnostic Utility default interface setting is USB interface. If USB interface is connected with printer,
no other settings need to be changed in the interface field.
5. Click on the “Ethernet Setup” button from “Printer Function” group in Printer Configuration tab to setup the
IP address, subnet mask and gateway for the on board Ethernet.
To Next Page
