TSC DA310 Series User Manual

- 31 -

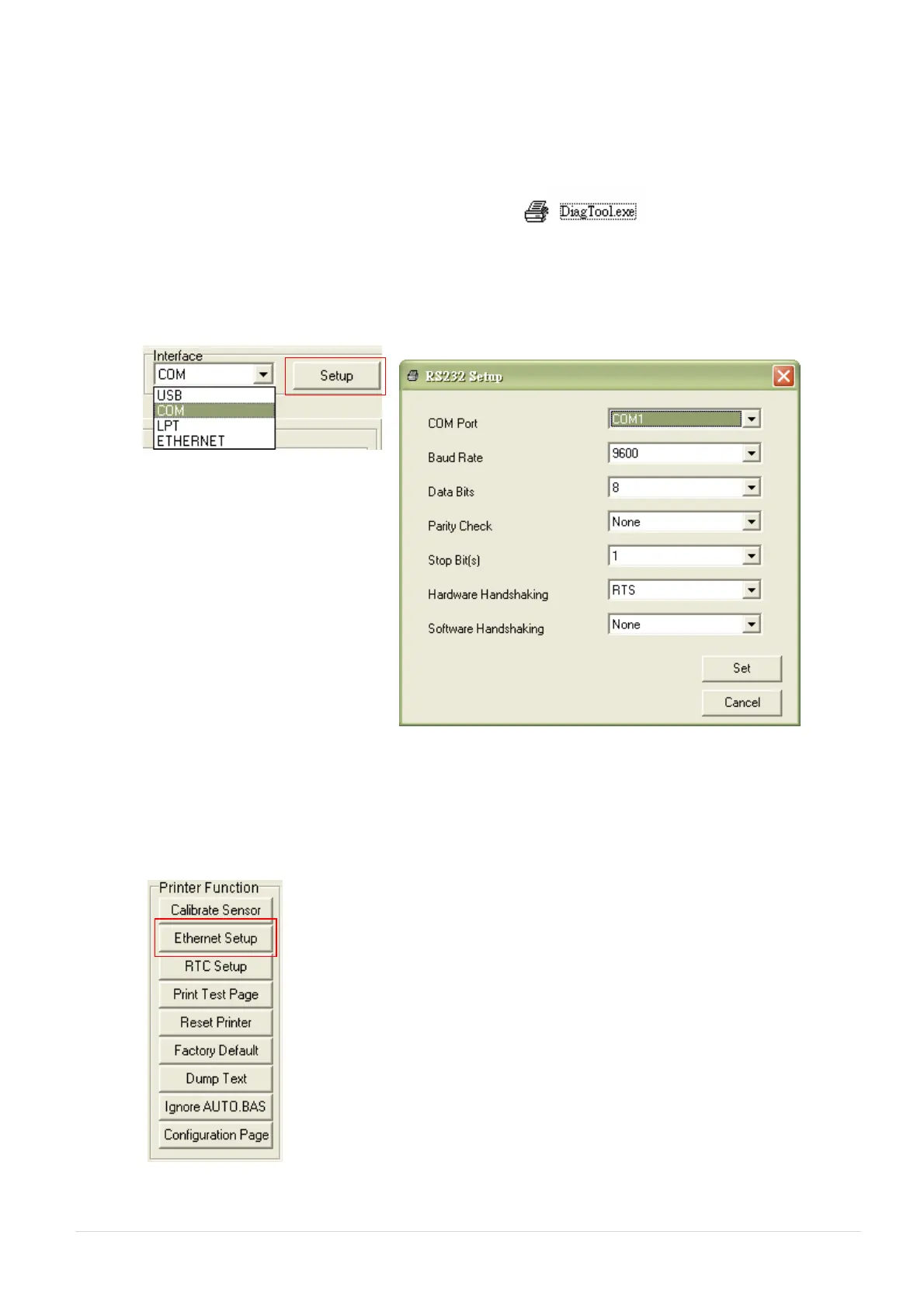

5.3.2 Using RS-232 interface to setup Ethernet interface
1. Connect the computer and the printer with a RS-232 cable.
2. Turn on the printer power.
3. Start the Diagnostic Utility by double clicks on the icon.
4. Select “COM” as interface then click on the “Setup” button to setup the serial port baud rate, parity check,
data bits, stop bit and flow control parameters.
5. Click on the “Ethernet Setup” button from printer function of Printer Configuration tab to setup the IP
address, subnet mask and the gateway for the on board Ethernet.

TSC DA310 Series Specifications

General

Brand	TSC
Model	DA310 Series
Category	Barcode Reader
Language	English
