TSC TDP-225 User Manual

9

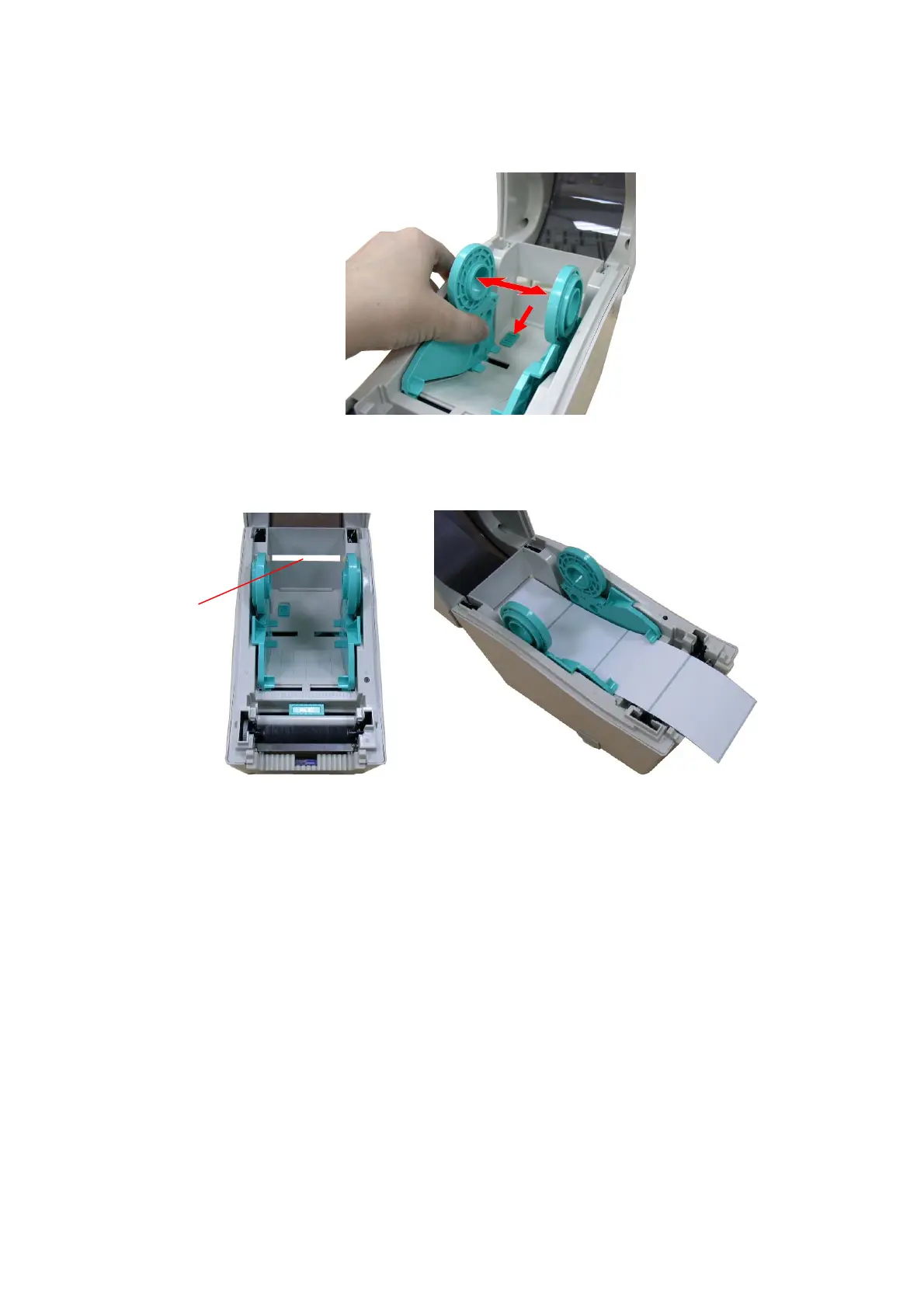

3.2.2 Loading External Media (For TDP-225 model only)
1. Open the printer’s top cover and separate the media holders to fit the media width.
2. Press down the media holder lock switch to fix the media holder.
3. Feeds the media through the rear external label entrance chute. And place the paper,
printing side face up, through the media guides, media sensor and place the label leading
edge onto the platen roller.
4. Close the top cover gently.
5. Use “Diagnostic Tool” to set the media sensor type and calibrate the selected sensor.
(Start the “Diagnostic tool” Æ Select the “Printer Configuration” tab Æ Click the “Calibrate
Sensor” button)
Note: Please calibrate the gap/black mark sensor when changing media.
Rear external
label entrance

TSC TDP-225 Specifications

General

Print technology	Direct thermal
Vertical printing	Yes
Maximum resolution	203 x 203 DPI
Maximum print height	2286 mm
Maximum printing width	54 mm
Ethernet LAN	No
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Certification	FCC, CE, TUV, CUL, UL, CCC, C-Tick
Internal memory	8 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in processor	RISC 32-bit
Compatible memory cards	SD
Power requirements	100 - 240
AC adapter output current	2 A
AC adapter output voltage	24 V
Display	LCD
Product color	-
Core diameter	38 mm
Ribbon length	90 m
Media thickness	0.06 - 0.19 mm
Maximum label width	60 mm
Maximum label length	2.286 m
Maximum roll diameter	127 mm
Supported paper width	15 - 60 mm
Maximum media length (imperial)	90 \
Supported paper width (imperial)	0.59 - 2.36 \
LED indicators	Power, Status
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	41 - 104 °F

Weight and Dimensions

Depth	209 mm
Width	109 mm
Height	171 mm
