TSC TDP-225 User Manual

25
Self-test

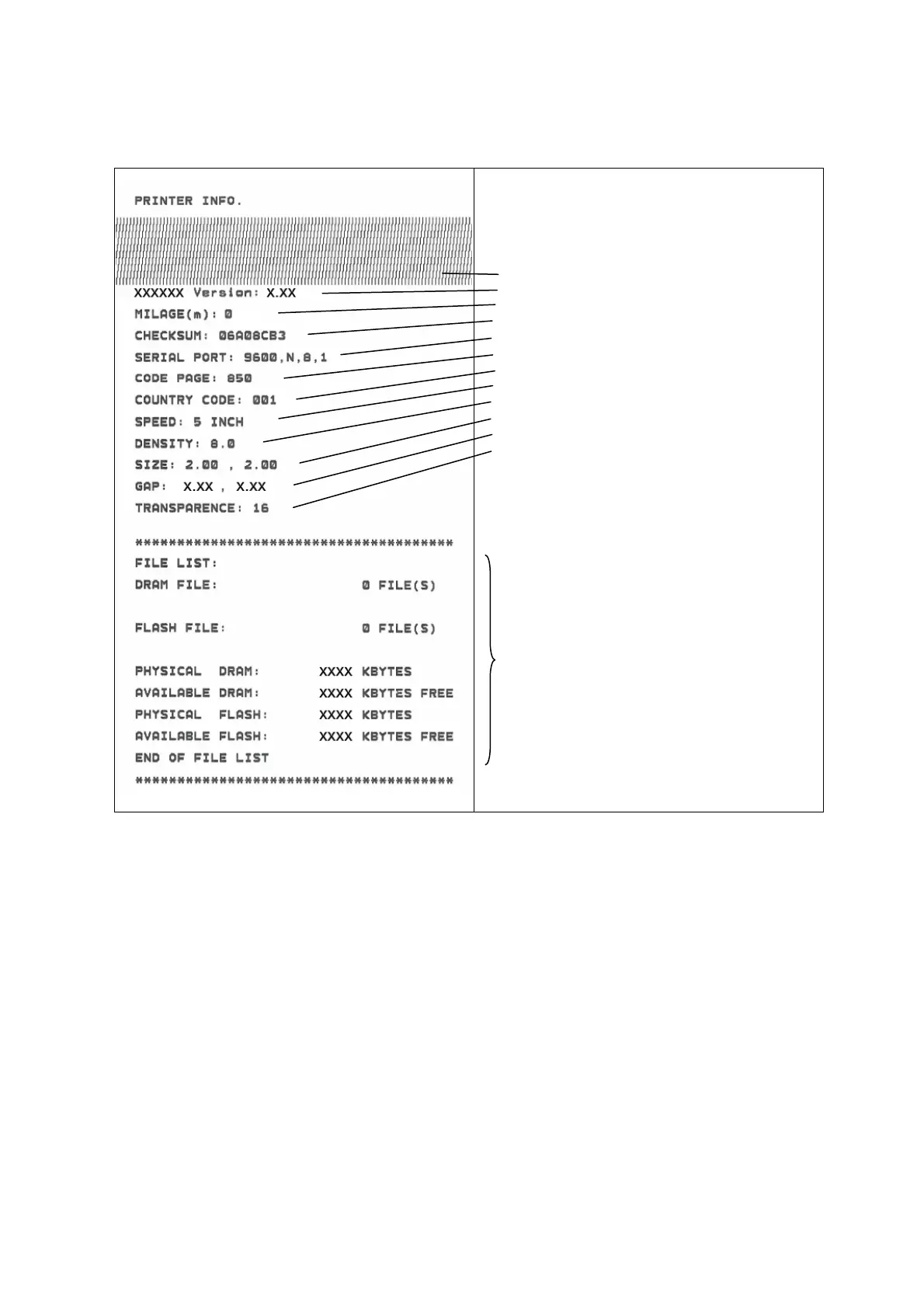

Printer will print the printer configuration after gap/black mark sensor calibration. Self-test
printout can be used to check if there is any dot damage on the heater element, printer
configurations and available memory space.
Print head test pattern
Printer model name & Main board firmware version
Printed mileage
Main board firmware checksum
Serial port setting
Code page
Country code
Print speed
Print darkness
Label size (width, height)
Gap size (vertical gap, offset)
Sensor sensitivity
File management information
 Dump mode
Printer will enter dump mode after printing printer configuration. In the dump mode, all
characters will be printed in 2 columns as following. The left side characters are received from
your system and right side data are the corresponding hexadecimal value of the characters. It
allows users or engineers to verify and debug the program.

TSC TDP-225 Specifications

General

Print technology	Direct thermal
Vertical printing	Yes
Maximum resolution	203 x 203 DPI
Maximum print height	2286 mm
Maximum printing width	54 mm
Ethernet LAN	No
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Certification	FCC, CE, TUV, CUL, UL, CCC, C-Tick
Internal memory	8 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in processor	RISC 32-bit
Compatible memory cards	SD
Power requirements	100 - 240
AC adapter output current	2 A
AC adapter output voltage	24 V
Display	LCD
Product color	-
Core diameter	38 mm
Ribbon length	90 m
Media thickness	0.06 - 0.19 mm
Maximum label width	60 mm
Maximum label length	2.286 m
Maximum roll diameter	127 mm
Supported paper width	15 - 60 mm
Maximum media length (imperial)	90 \
Supported paper width (imperial)	0.59 - 2.36 \
LED indicators	Power, Status
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	41 - 104 °F

Weight and Dimensions

Depth	209 mm
Width	109 mm
Height	171 mm
