3.3 Diagnostic Tool
The Diagnostic Utility is enclosed in the CD disk \Utilities directory or can be downloaded
from www.tscprinters.com website. The Diagnostic Utility is a toolbox that allows users to
explore the printer's settings and status; change printer settings; download graphics, fonts,
and firmware; create printer bitmap fonts; and to send additional commands to the printer.
Using this convenient tool, you can explore the printer status and settings and troubleshoot
the printer.
Note: This utility works with printer firmware V6.00 and later versions.
3.3.1 Start the Diagnostic Tool

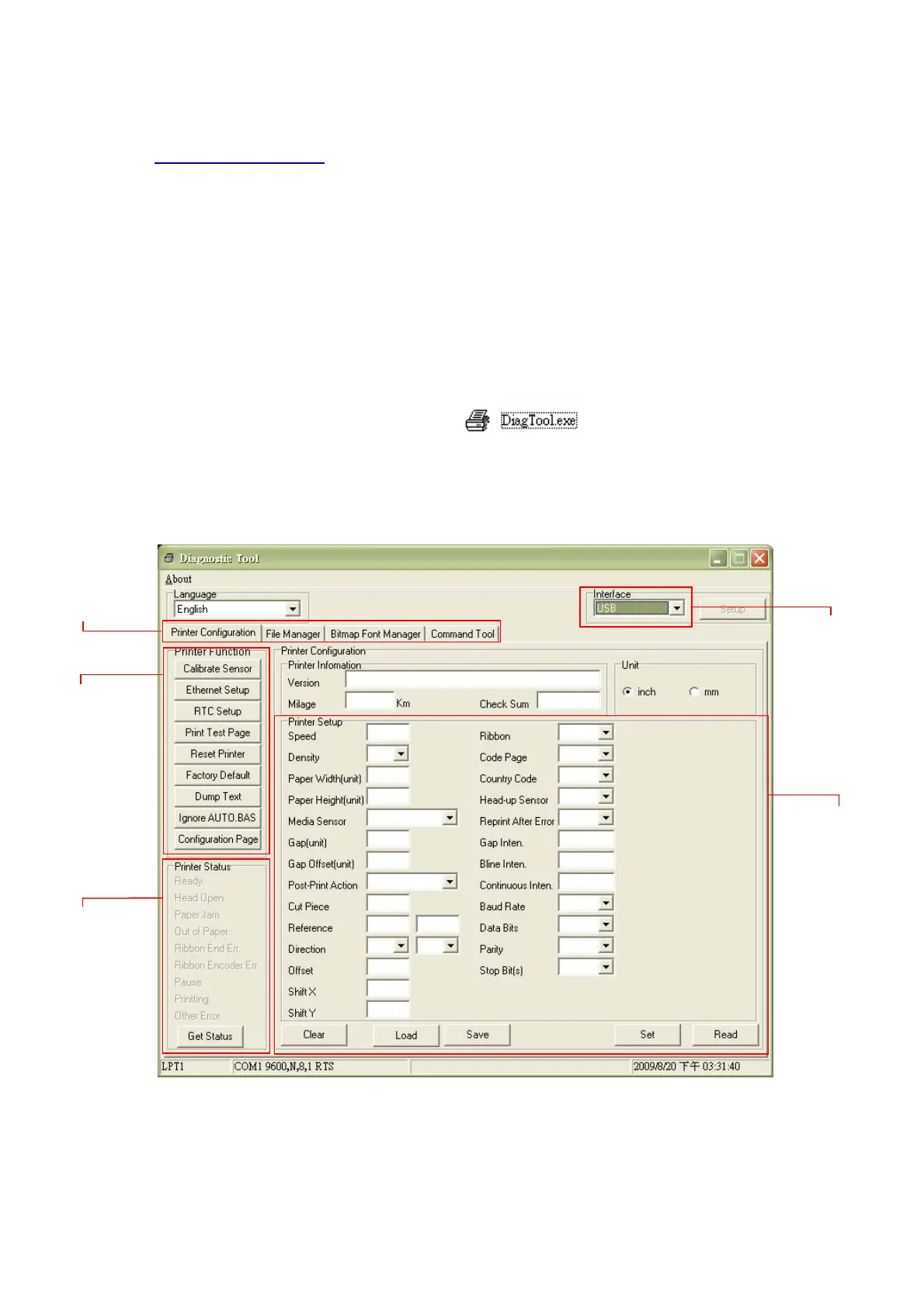

1. Double click on the Diagnostic tool icon to start the software.
2. There are four features (Printer Configuration, File Manager, Bitmap Font Manager,
Command Tool) included in the Diagnostic utility.
Features tab
Printer functions
Interface
Printer Status
Printer setup

TSC TDP-225 Specifications

General

Print technology	Direct thermal
Vertical printing	Yes
Maximum resolution	203 x 203 DPI
Maximum print height	2286 mm
Maximum printing width	54 mm
Ethernet LAN	No
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Certification	FCC, CE, TUV, CUL, UL, CCC, C-Tick
Internal memory	8 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in processor	RISC 32-bit
Compatible memory cards	SD
Power requirements	100 - 240
AC adapter output current	2 A
AC adapter output voltage	24 V
Display	LCD
Product color	-
Core diameter	38 mm
Ribbon length	90 m
Media thickness	0.06 - 0.19 mm
Maximum label width	60 mm
Maximum label length	2.286 m
Maximum roll diameter	127 mm
Supported paper width	15 - 60 mm
Maximum media length (imperial)	90 \
Supported paper width (imperial)	0.59 - 2.36 \
LED indicators	Power, Status
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	41 - 104 °F

Weight and Dimensions

Depth	209 mm
Width	109 mm
Height	171 mm
