TSC TDP-225 User Manual

17
3.4 Setting Ethernet by Diagnostic Utility (Option for TDP-225
model)
The Diagnostic Utility is enclosed in the CD disk \Utilities directory or can be downloaded from
www.tscprinters.com website. Users can use Diagnostic Tool to setup the Ethernet by USB and
Ethernet interfaces. The following contents will instruct users how to configure the Ethernet by
these interfaces.
3.4.1 Using USB interface to setup Ethernet interface
1. Connect the USB cable between the computer and the printer.
2. Turn on the printer power.
3. Start the Diagnostic Utility by double clicking on the icon.
Note: This utility works with printer firmware V6.00 and later versions.

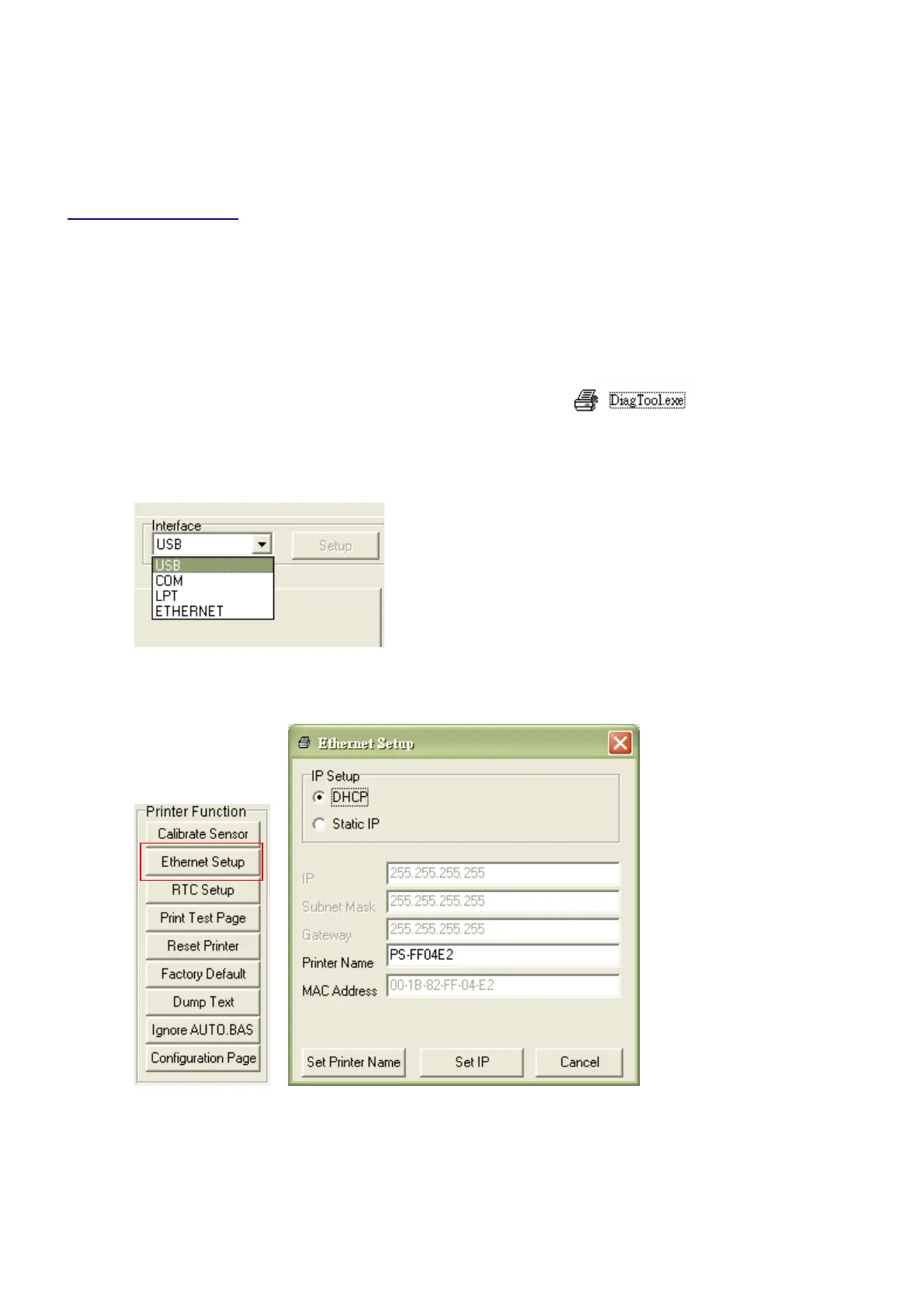

4. The Diagnostic Utility default interface setting is USB interface. If USB interface is
connected with printer, no other settings need to be changed in the interface field.
5. Click on the “Ethernet Setup” button from “Printer Function” group in Printer Configuration
tab to setup the IP address, subnet mask and gateway for the on board Ethernet.

TSC TDP-225 Specifications

General

Print technology	Direct thermal
Vertical printing	Yes
Maximum resolution	203 x 203 DPI
Maximum print height	2286 mm
Maximum printing width	54 mm
Ethernet LAN	No
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Certification	FCC, CE, TUV, CUL, UL, CCC, C-Tick
Internal memory	8 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in processor	RISC 32-bit
Compatible memory cards	SD
Power requirements	100 - 240
AC adapter output current	2 A
AC adapter output voltage	24 V
Display	LCD
Product color	-
Core diameter	38 mm
Ribbon length	90 m
Media thickness	0.06 - 0.19 mm
Maximum label width	60 mm
Maximum label length	2.286 m
Maximum roll diameter	127 mm
Supported paper width	15 - 60 mm
Maximum media length (imperial)	90 \
Supported paper width (imperial)	0.59 - 2.36 \
LED indicators	Power, Status
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	41 - 104 °F

Weight and Dimensions

Depth	209 mm
Width	109 mm
Height	171 mm
