3.14. Install Peel off Module (Option)
1. Open the top cover.
2. Remove two screws for hinge support and one screw for memory card cover in
lower cover.
3. Remove 6 screws on the lower inner cover.
4. Hold the lower cover and lift up the top cover open levers to separate the lower
inner cover and the lower cover. (Please refer to section 3.1 )

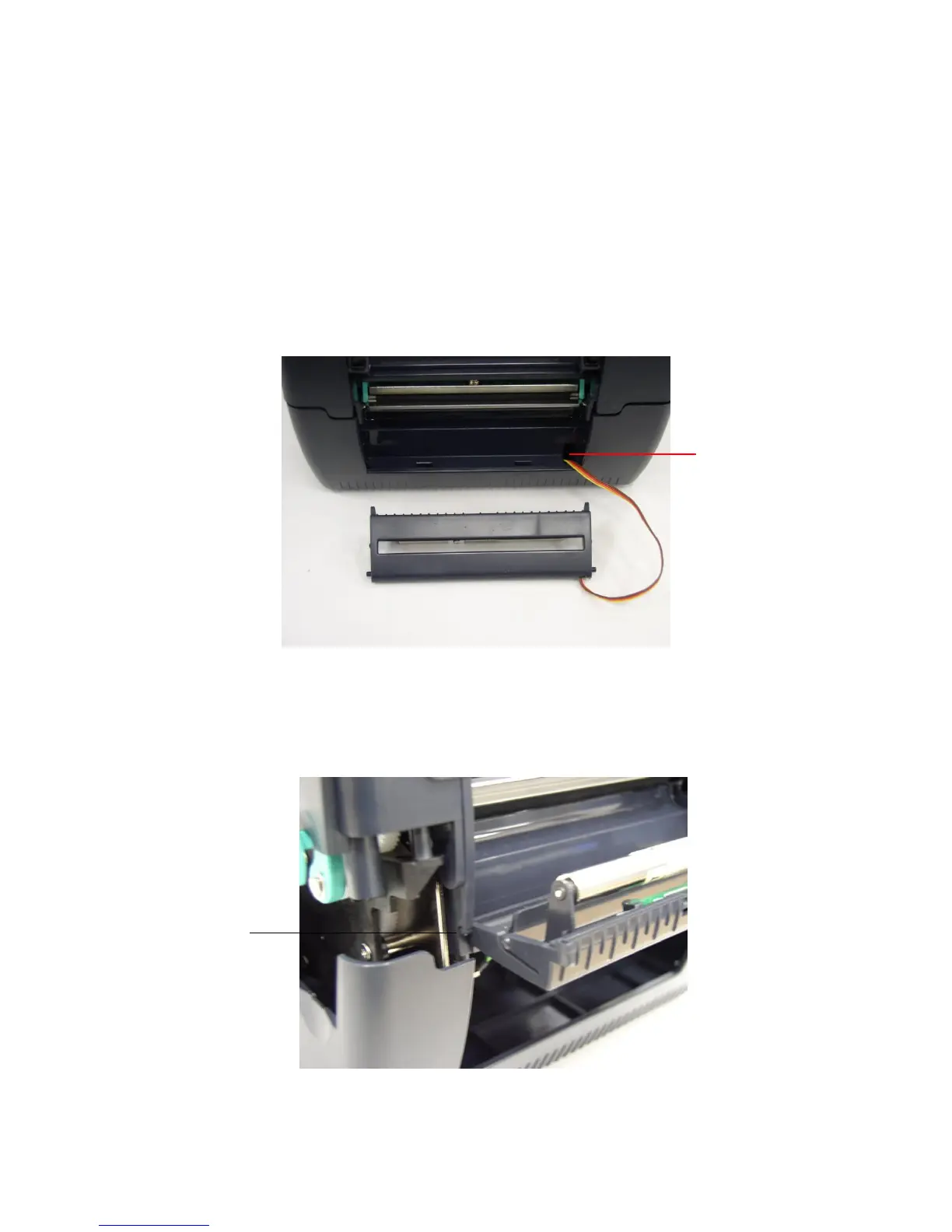

5. Connect the harness of peel-off module through the slot of lower inner cover.
6. Lift up the lower inner cover to gently push peel off panel into the two concaves of
lower cover front side.
Note: Must lift up the lower inner cover first, then, the peel-off module could
be installed into the concave of lower inner cover.
