14
9. Close the top cover by lifting up the top cover support and close the top cover
slowly.
Note: Pull the label outward tightly after closing the top cover.

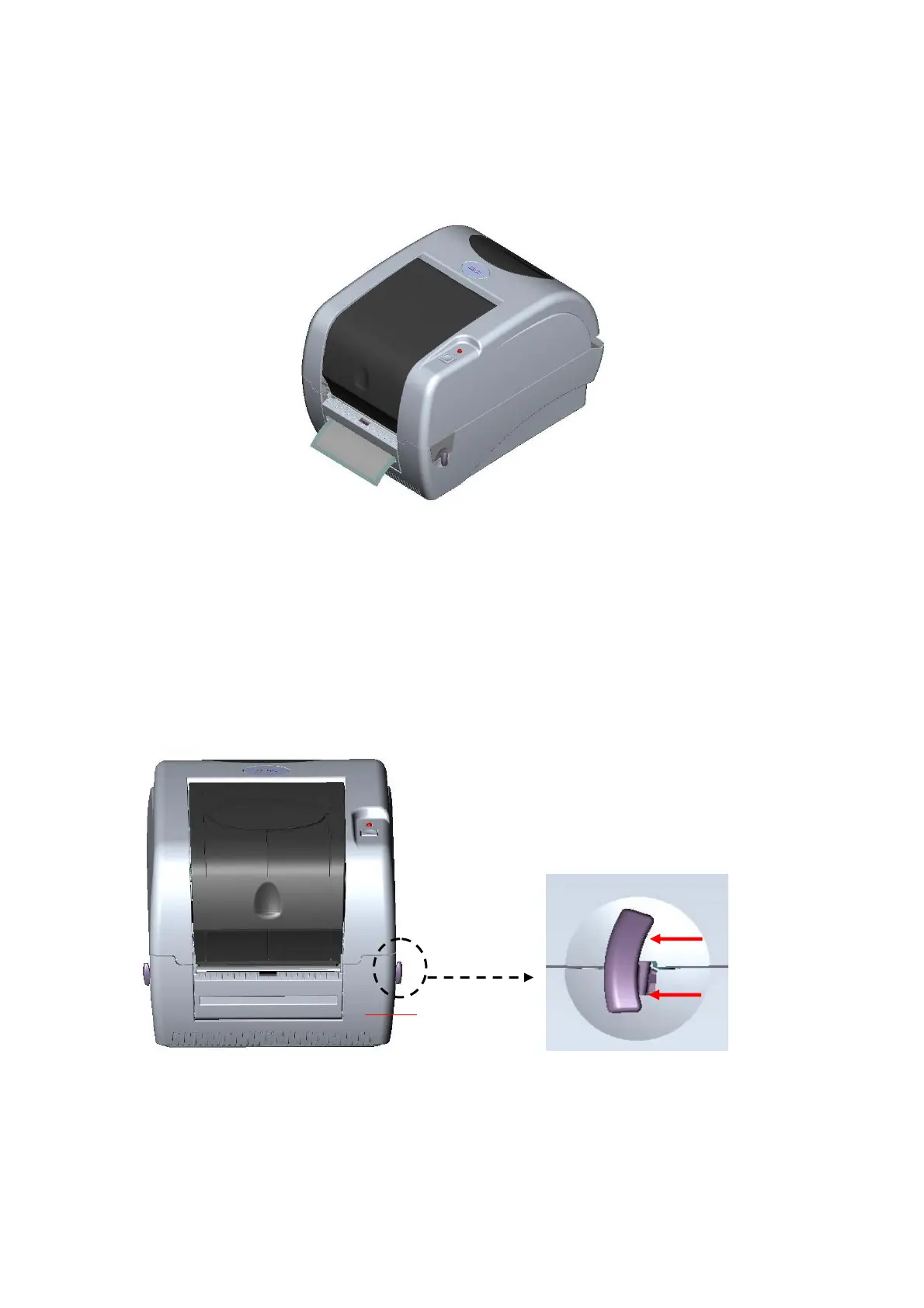

Fig. 21 Complete label installation for peel-off mode
3.6 Cutter Module Installation (Option)
1. Pull the top cover open levers to open the top cover.
2. Remove the front panel from the lower cover.
Fig. 22 Pull the lever to open the cover
3. Open the top cover and hold it and push down and push backward the top cover
support then push backward the top cover.
Lower Cover
To Next Page
