ASSEMBLY AND INSTALLATION

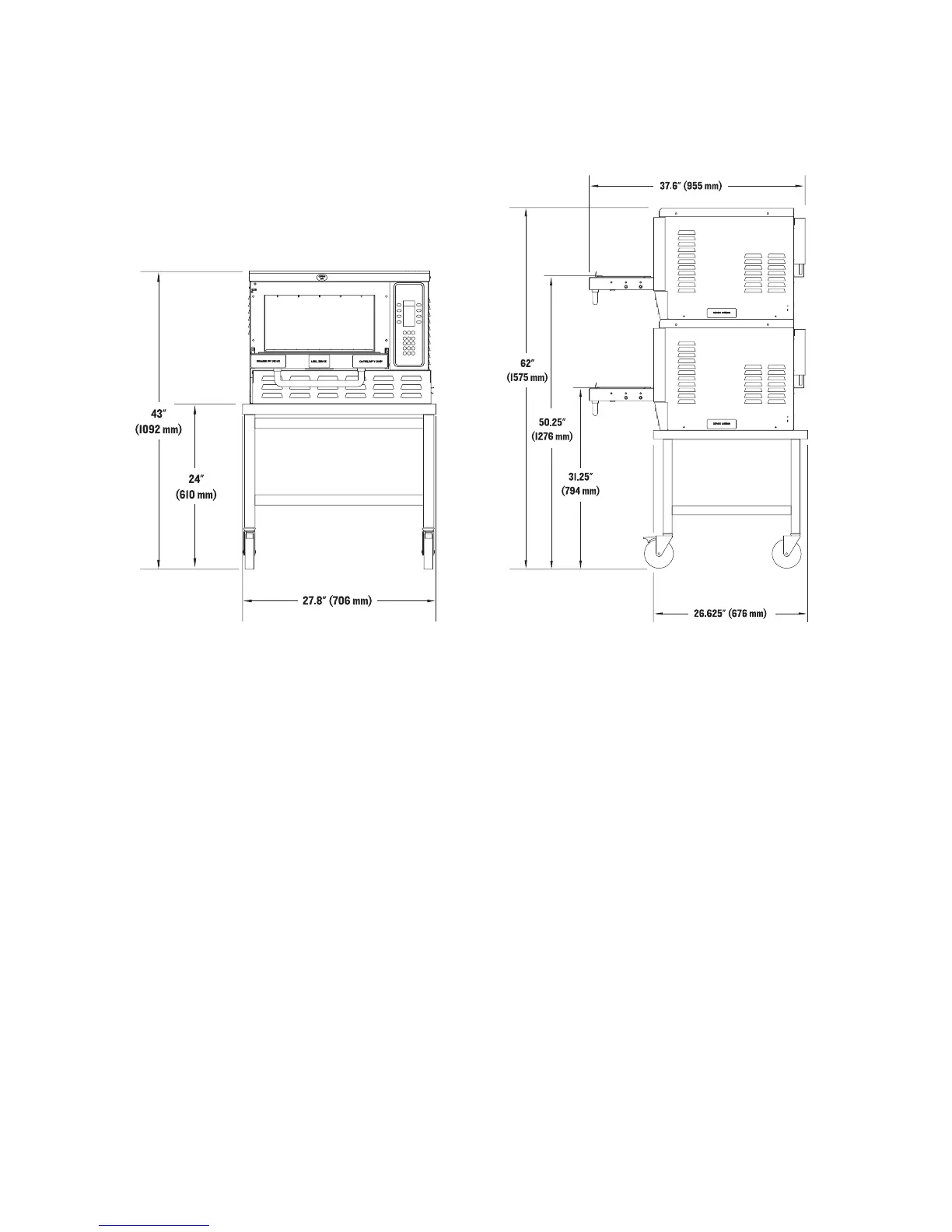

FIGURE 7: 24” (610mm) Cart with a Single Oven FIGURE 8: 24” (610mm) Cart with a Single Oven

Oven Carts (P/N TC3-0143-1 & P/N TC3-0143-2)

There are two carts – 18” (457 mm)

(TC3-0143-2)

and 24” (610 mm) (TC3-0143-1) – available for

use with the Tornado oven. See Figures 7 and 8

(above). Both carts can be used with single or

stacked ovens.

Dimensions for the two carts are listed below.

18” (457 mm) Cart:

Height 18” (457 mm)

with single oven 37” (940 mm)

with stacked ovens 56” (1422 mm)

Width 27.8” (706 mm)

with single oven 27.8” (706 mm)

with stacked ovens 27.8” (706 mm)

Depth* 26.625” (676 mm)

with single oven 37.6” (955 mm)

with stacked ovens 37.6” (955 mm)

24” (610 mm) Cart:

Height 24” (610 mm)

with single oven 43” (1092 mm)

with stacked ovens 62” (1575 mm)

Width 27.8” (706 mm)

with single oven 27.8” (706 mm)

with stacked ovens 27.8” (706 mm)

Depth* 26.625” (676 mm)

with single oven 37.6” (955 mm)

with stacked ovens 37.6” (955 mm)

*Depth with the oven door(s) open. With the

door(s) closed, the depth is 26.625” (676 mm)

or the depth of the cart.

Assembly instructions are included with the carts.

If additional help is needed, call Customer Service

at 800.90TURBO (+1 214-379-6000) or your

Authorized Distributor.
