AFTER USING THE MACHINE
1 Turn the Power Switch OFF (O) and unplug the Power Cord. Coil the cord around the Operator Handle (1).
2 To empty the solution tank, pull the Solution Drain Hose (12) off the upper hose barb. Direct the hose to a designated waste water “DISPOSAL
SITE”. Rinse the tank with clean water. Inspect the solution hoses; replace if kinked or damaged. Inspect the Solution Screen (6).
3 To empty the recovery tank, take the Recovery Tank Drain Hose (18) off its hanger. Direct the hose to a designated waste water “DISPOSAL
SITE” and remove the plug (hold the end of the hose above the water level in the tank to avoid sudden, uncontrolled fl ow of waste water).
Rinse the tank with clean water. Inspect the recovery and drain hoses; replace if kinked or damaged.
4 Remove the brush, rinse with warm water and remove any built-up string, hair or carpet fi bers.
5 Disconnect the Recovery Hose (19) from the Recovery Tank and fl ush with warm water to wash any debris out of the Recovery Hose and
Vacuum Shoe.
6 Wipe the machine with a damp cloth. Do not use abrasive chemicals or solvents.
7 Perform any required maintenance before storage.
MAINTENANCE SCHEDULE
MAINTENANCE ITEM Daily Weekly Monthly Yearly
Check / Clean Power Brush •
Check / Clean Tanks & Hoses •
Check / Clean Vacuum Shut-Off Float •
Clean Vacuum Shoe •
Inspect & Clean Solution Screen •
Clean Spray Nozzles •
*Check Carbon Brushes •
* Have a U.S. Products service technician check the vacuum motor carbon brushes once a year or after 300 operating hours. The brush motor
carbon brushes check every 500 hours or once a year.
IMPORTANT! Motor damage resulting from failure to service the carbon brushes is not covered under
warranty. See the Limited Warranty Statement.
8 Store the machine indoors in a clean, dry place with the tank lid open. Keep from freezing.
9 Place the machine in the storage position. This will prevent the brush from taking a “set”, and will increase the brush life and maintain the
performance of the brush. Tip the machine back to lift the vacuum shoe off of the fl oor, then push in and up on the Brush Pressure Control
Knob (20) until the knob locks into place.
VACUUM SHOE MAINTENANCE

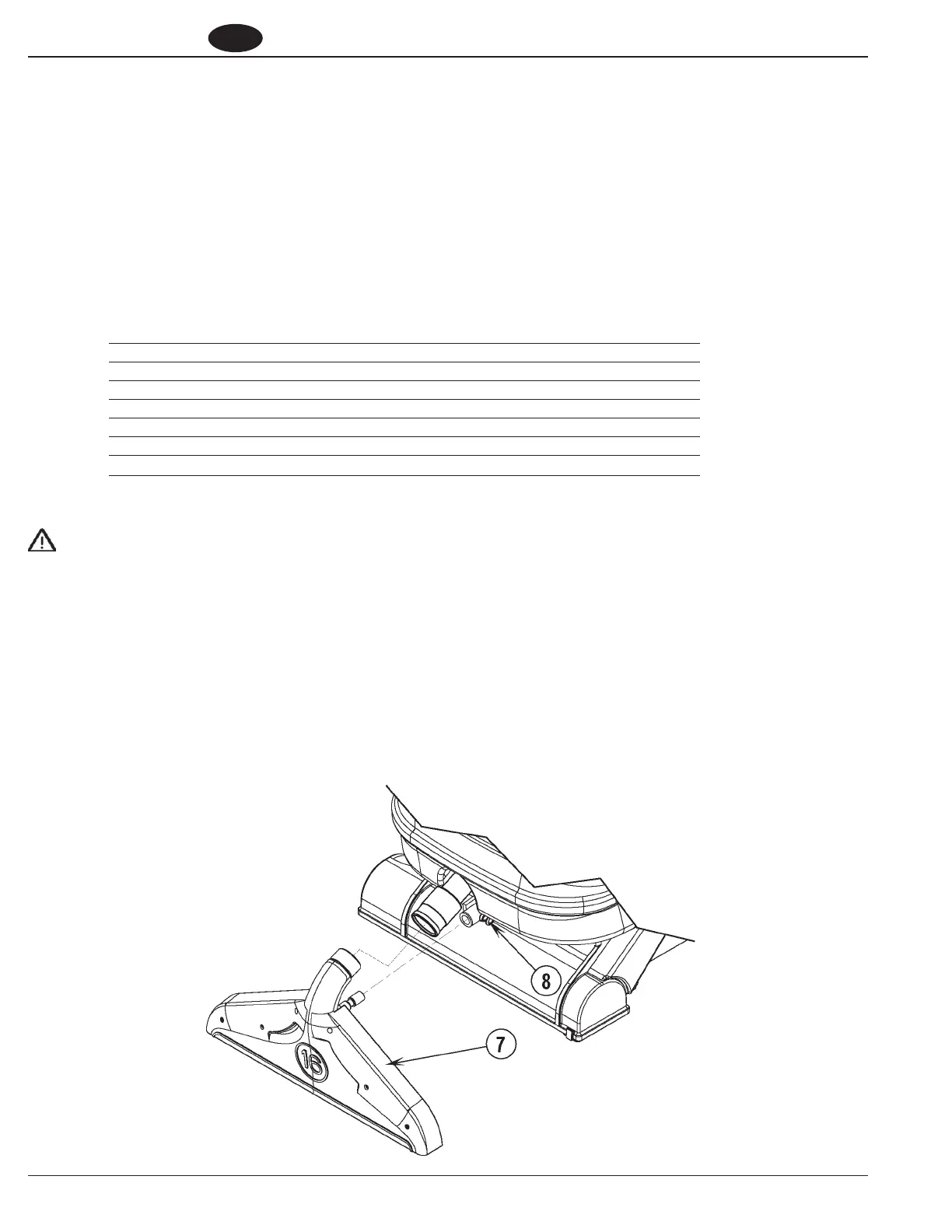

Check the vacuum shoe daily. Remove any built-up string, hair or carpet fi bers. See Figure 6. The vacuum shoe can be removed by pulling on the
Release Pin (8) and sliding the Vacuum Shoe (7) off. Then disconnect the recovery hose from the shoe.
