UNI-T UT60A User Manual

Measurement Operation (1)
A. AC & DC Voltage Measurement
Warning
To avoid harms to you or damages to the Meter from
electric shock, please do not attempt to measure
voltages higher than 1000V / 750V rms although
readings may be obtained.

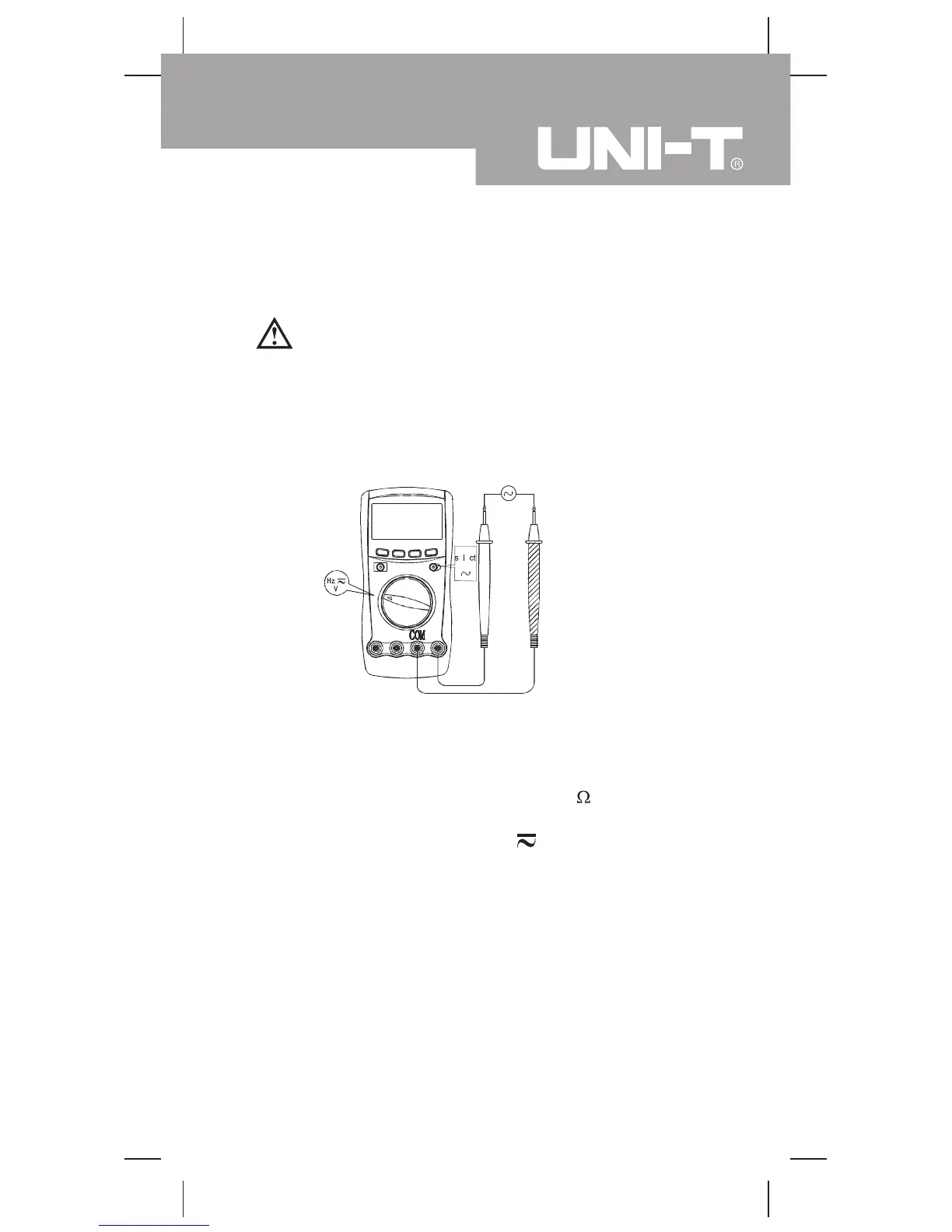

AC Voltage Measurement (see figure 3)
The AC voltage ranges are: 4.000V, 40.00V, 400.0V and
750.0V. To measure AC Voltage, connect the Meter as
follows:
1. Insert the red test lead into the HzV terminal and
the black test lead into the COM terminal.
2. Set the rotary switch to Hz
V and press BLUE
button to select AC measurement mode.
3. Connect the test leads across with the object being
measured.
The measured value shows on the display, which
is effective value of sine wave (mean value
response).
(figure 3)
Red Black
Model UT60A: OPERATING MANUAL
19

UNI-T UT60A Specifications

General

Data hold	Yes
Product type	Digital multimeter
Frequency range	0.01 - 10000 kHz
AC current range	0.4 - 10 A
AC voltage range	4 - 750 V
DC voltage range	0.4 - 1000 V
Dimensions (WxDxH)	85 x 177 x 40 mm
Battery voltage	9 V

Weight and Dimensions

Weight	340 g
