Utax P-4030D Service Manual

2LV/2L1/2L2/2MS/2MT
1-5-26
(5) Detaching and refitting the high voltage PWB
Procedure
1. Remove the cassette.
2. Remove the right upper cover and the
right lower cover. (See page 1-5-4)
3. Remove the left upper cover and the left
lower cover. (See page 1-5-6)
4. Remove the power source fan motor.
(See page1-5-30)
5. Remove the power source PWB.
(See page1-5-25)
6. Stand the printer front side up.
7. Remove four screws each and then
remove the bottom plate 1 and the bot-
tom plate 2.

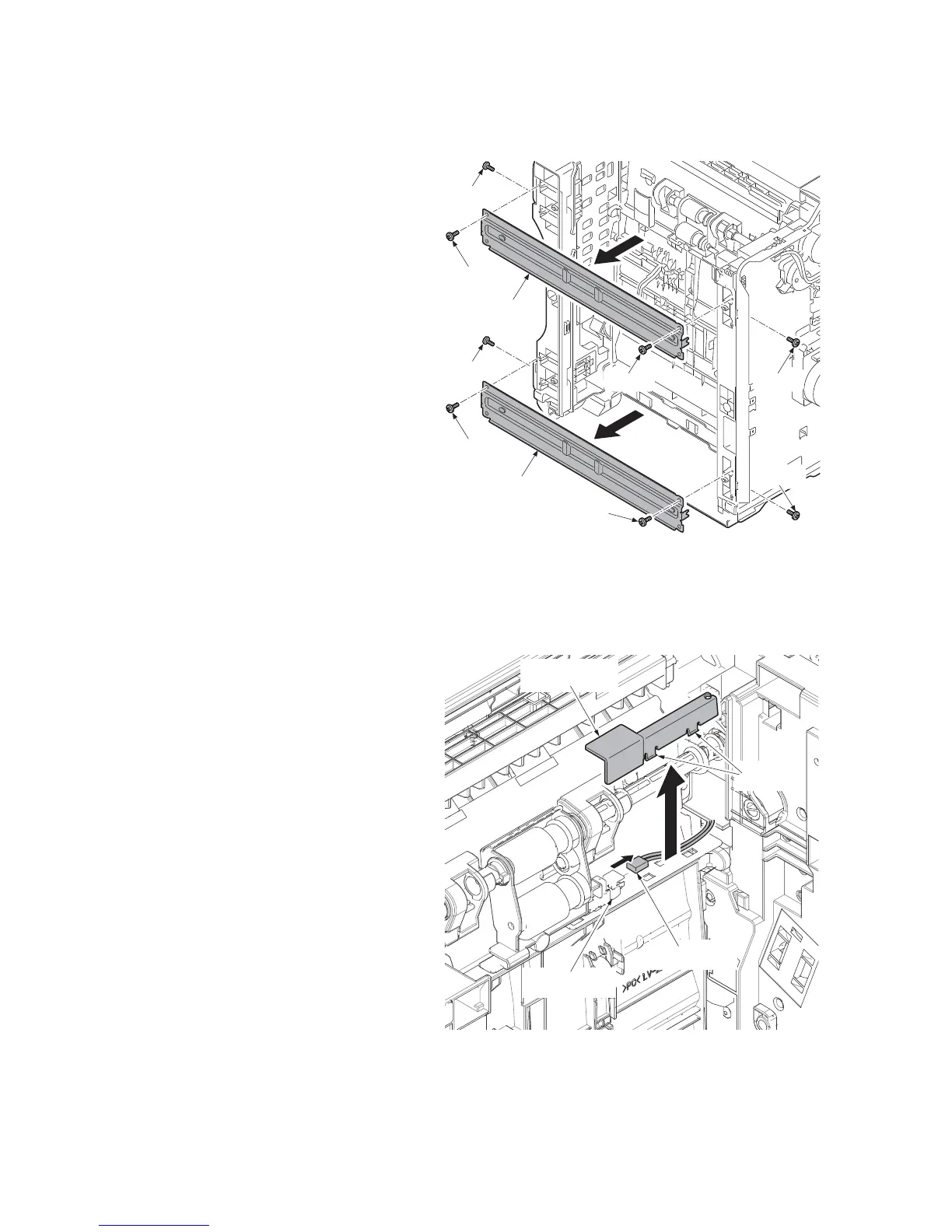

Figure 1-5-42
8. [60/50/45 ppm model only]
Release two hooks and then remove
the wire cover.
Pull the connector of lift sensor out.
Figure 1-5-43
Screw
Screw
ScrewScrew
Screw
Bottom plate 2
Screw
Screw
Screw
Bottom plate 1
Lift sensor
Hooks
Connector
Wire cover

Utax P-4030D Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	21 ppm
Maximum duty cycle	- pages per month
Number of print cartridges	1
Page description languages	Diablo 630, Epson LQ, PCL 5e, PCL 6, PCL XL, PDF 1.5
Total input capacity	500 sheets
Total output capacity	250 sheets
Paper tray media types	Glossy paper, Matte paper, Plain paper
Paper tray media weight	60 - 120 g/m²
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Mobile printing technologies	-
Standard interfaces	USB 2.0
Optional connectivity	Wireless LAN
Internal memory	128 MB
Compatible memory cards	SD
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
Product color	Black, White
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	11.5 W
Power consumption (printing)	564 W
Power consumption (PowerSave)	3 W
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Other operating systems supported	Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	410 mm
Width	390 mm
Height	285 mm
Weight	13500 g
