Utax P-4030D Service Manual

2LV/2L1/2L2/2MS/2MT
1-2-12
1-2-3 Install the expansion memory (option)
Procedure
1. Remove the inlet cover.
2. Remove the slot cover.
3. Unplug the power cable.
Caution: Do not insert or remove main
PWB assembly while machine power is
on.
Doing so may cause damage to the
machine and the main PWB.

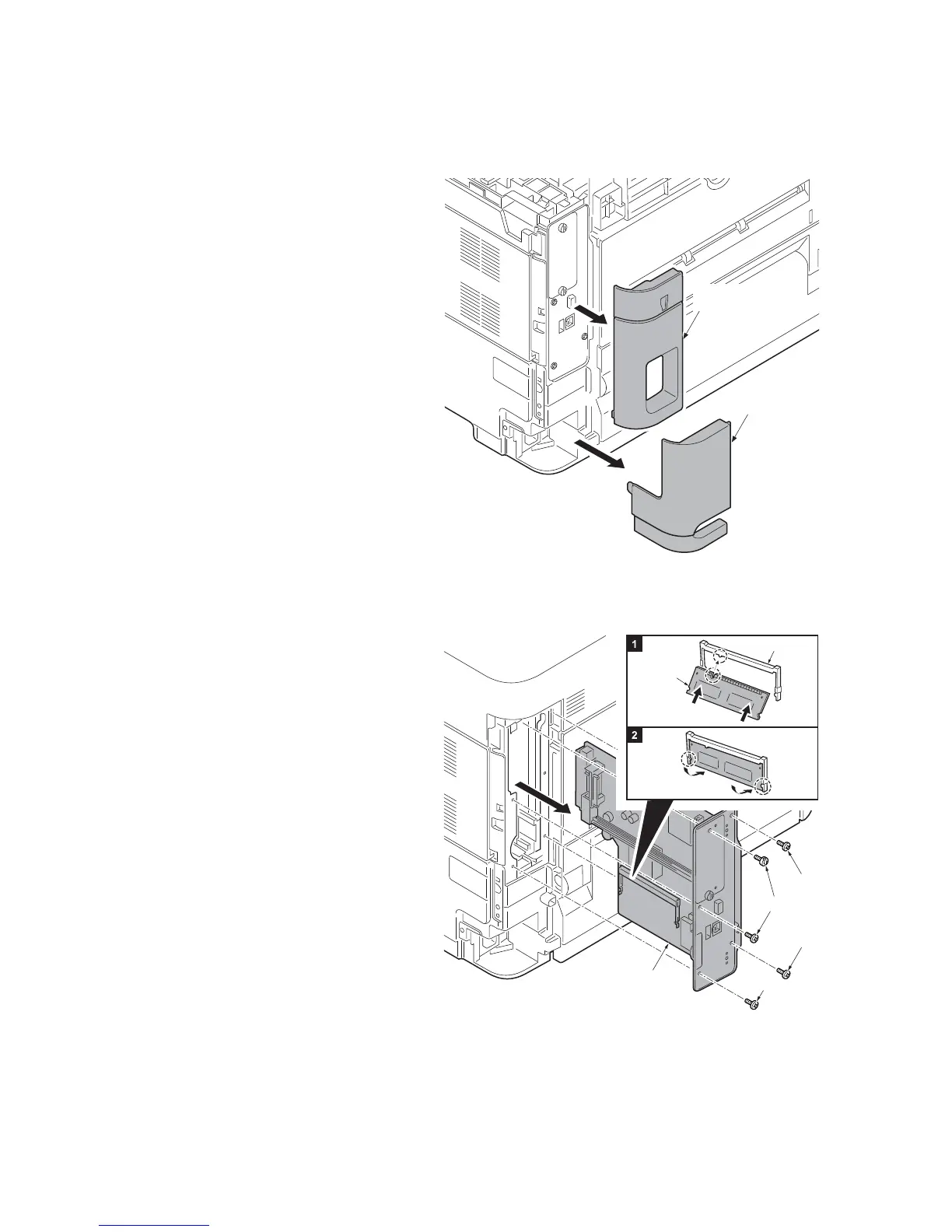

Figure 1-2-22
4. Remove five screws and then remove
the main PWB assembly.
5. Aligning the cutouts of the memory
module with the matching keys of the
socket, carefully plug the memory mod-
ule into the memory socket until it clicks
in place.
6. Then, push down the memory module
to secure.
7. Refit the main PWB assembly and the
screws.
8. Refit the covers.
9. Plug the printer into a power outlet.
10. Print a status page to check the mem-
ory expansion. (See page 1-3-2)
If memory expansion has been properly
performed, information on the installed
memory is printed with the total memory
capacity has been increased.
Standard memory capacity 256 MB. *1
*1: 40 ppm (without Metwork); 128MB
Figure 1-2-23
Slot cover
Inlet cover
Expansion
memory
Memory socket
Screw
Screw
Screw
Screw
Main PWB
Assembly

Utax P-4030D Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	21 ppm
Maximum duty cycle	- pages per month
Number of print cartridges	1
Page description languages	Diablo 630, Epson LQ, PCL 5e, PCL 6, PCL XL, PDF 1.5
Total input capacity	500 sheets
Total output capacity	250 sheets
Paper tray media types	Glossy paper, Matte paper, Plain paper
Paper tray media weight	60 - 120 g/m²
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Mobile printing technologies	-
Standard interfaces	USB 2.0
Optional connectivity	Wireless LAN
Internal memory	128 MB
Compatible memory cards	SD
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
Product color	Black, White
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	11.5 W
Power consumption (printing)	564 W
Power consumption (PowerSave)	3 W
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Other operating systems supported	Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	410 mm
Width	390 mm
Height	285 mm
Weight	13500 g
