Utax P-4030D Service Manual

2LV/2L1/2L2/2MS/2MT
2-1-6
2-1-3 Developer section
The developer unit consists of the developer roller that forms the magnetic brush, the developer blade and
the developer screws that agitate the toner.Also, the toner sensor (TS) checks whether or not toner remains in
the developer unit.

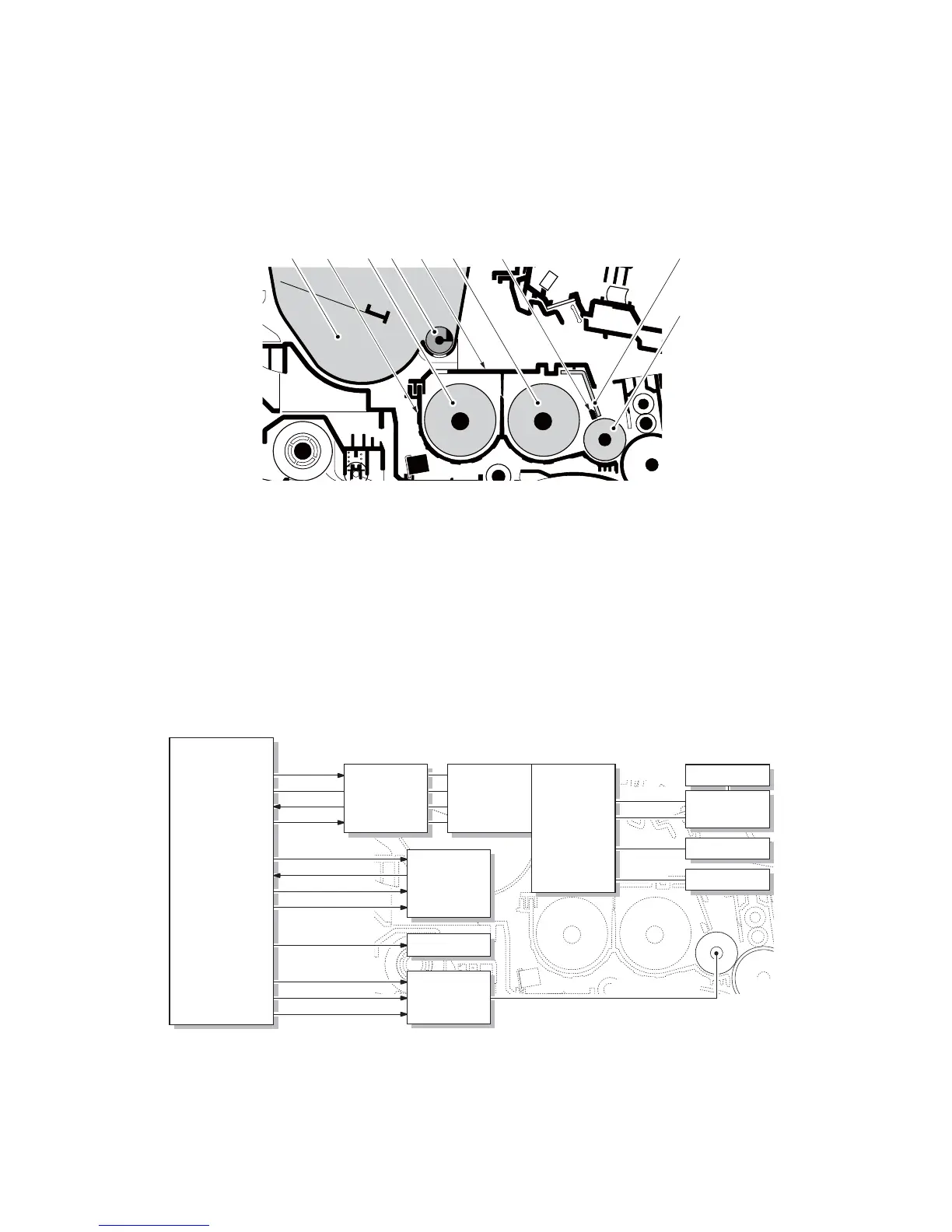

Figure 2-1-11 Developer section
Figure 2-1-12 Developer section block diagram
6 7 3
2
1
45 89
1. Developer roller
2. Developer blade
3. Magnet blade
4. Developer screw A
5. Developer screw B
6. Developer case
7. Upper developer cover
8. Toner supply roller
9. Toner container
MMOTCW
MMOTRDYN
MMOTCLKN
MMOTONN
HVCLK
EESIO
TSENS
YC3-2
YC4-1
TMOT
EECLK
EESIO
TSENS
TMOT
EECLK
YC2-6
YC2-15
6
5
MM
4
3
R-LPWB
DLPCLN
DEVSCL
CRPWB
TS
TS
TM
YC5-2
DRPWB
DRRPWB
HVPWB
YC2-3
YC2-2
YC4-1
YC4-2
YC4-3
YC4-4
YC19-7
YC2-3
YC2-1
Developer bias
Drum
EPWB
BDCNT
YC19-8
BACNT
YC19-9

Utax P-4030D Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	21 ppm
Maximum duty cycle	- pages per month
Number of print cartridges	1
Page description languages	Diablo 630, Epson LQ, PCL 5e, PCL 6, PCL XL, PDF 1.5
Total input capacity	500 sheets
Total output capacity	250 sheets
Paper tray media types	Glossy paper, Matte paper, Plain paper
Paper tray media weight	60 - 120 g/m²
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Mobile printing technologies	-
Standard interfaces	USB 2.0
Optional connectivity	Wireless LAN
Internal memory	128 MB
Compatible memory cards	SD
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
Product color	Black, White
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	11.5 W
Power consumption (printing)	564 W
Power consumption (PowerSave)	3 W
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Other operating systems supported	Novell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	410 mm
Width	390 mm
Height	285 mm
Weight	13500 g
