V2 ALFARISS User Manual

ENGLISH
37
4

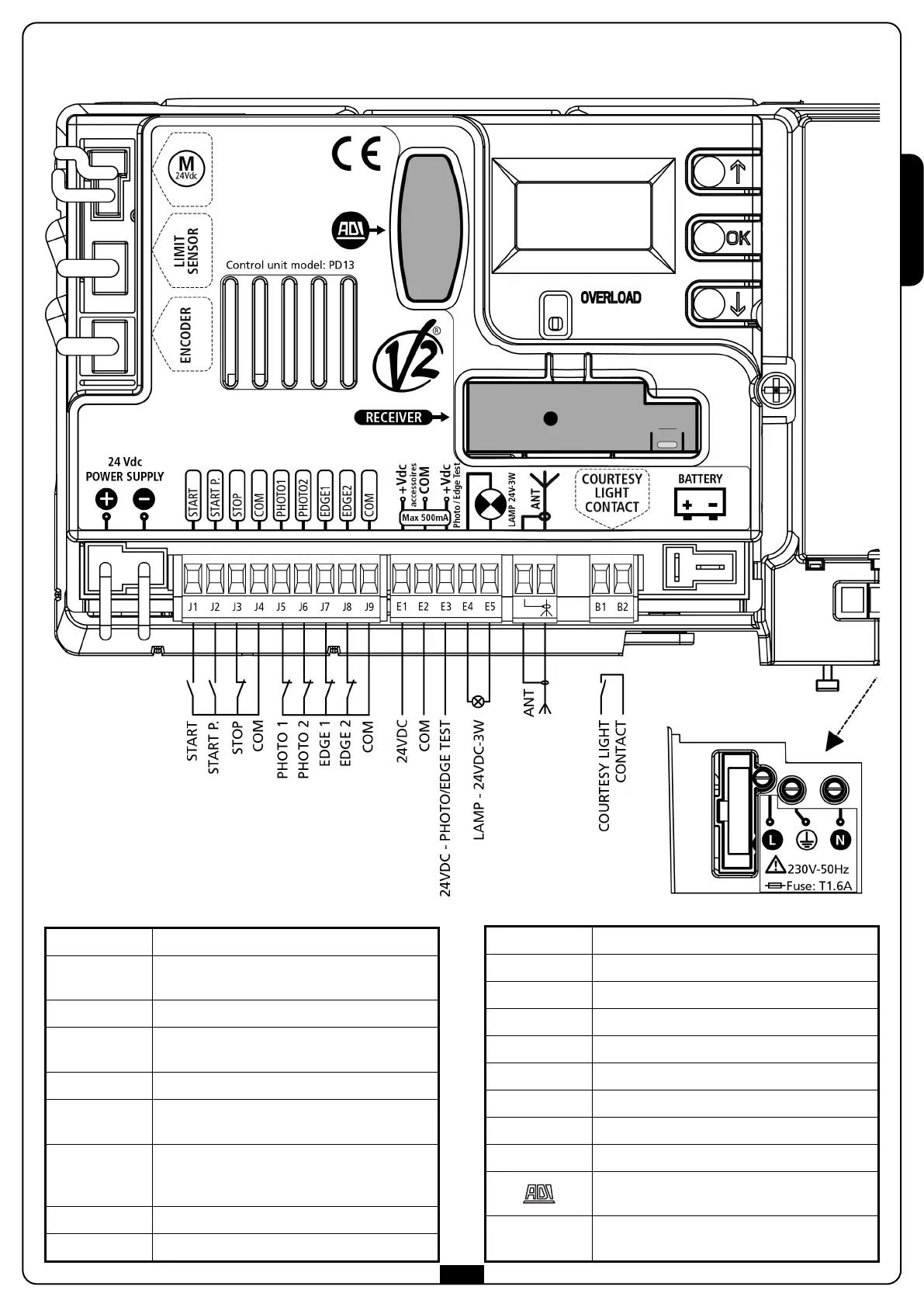

.13 - ELECTRICAL CONNECTION SUMMARY
B1 - B2 230Vac courtesy or flashing lights
E1
+24Vdc supply for photocells and other
accessories
E2 Accessory power common (-)
E3
+24Vdc supply - photocell/optical edge TX for
functional Test
E4 - E5 Warning light or flashing light (24V)
J1
Open command for connecting traditional
devices with N.O. contact
J2
Pedestrian open command for connecting
traditional devices with N.O. contact
J3 STOP command. N.C. contact
J4 Common (-)
J5 Photocell 1 (xterior). N.C. contact
J6 Photocell 2 (interior). N.C. contact
J7 Type 1 edges (fixed). N.C. contact
J8 Type 2 edges (mobile). N.C. contact
J9 Accessories common (-)
A1 Antenna shield
A2 Antenna
BATTERY Battery pack (code 161212)
RECEIVER Connector for MRx receiver
ADI Module interface
OVERLOAD
Signals an overload on the accessory power
supply
