Result
The total clearance on the pedal should be around 58 mm. Part of this measurement refers to the
slack between the rod (1) and the cylinder plunger (6 mm).
5. Drive the tractor at moderate speed on flat and level ground, apply the brakes simultaneously (using
the pedal lock) and verify that both rear wheels receive the same braking force and they do not have
the tendency to pull to one side. If necessary, correct the brake adjustment and check the free play of
the pedals again.
NOTE:
If satisfactory brake operating conditions are not found, request an inspection from your Dealer.

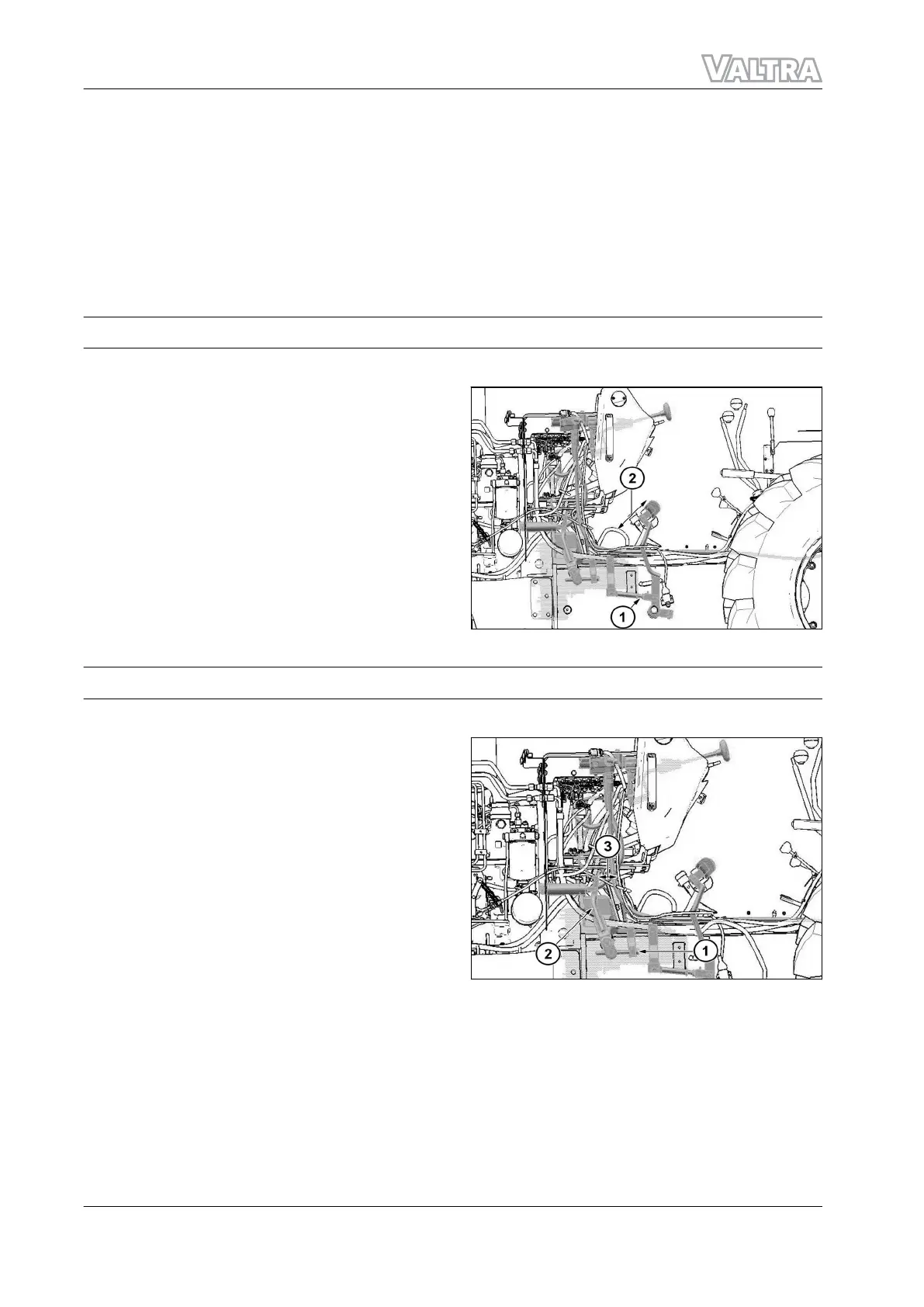

1.2.3 Checking and adjusting the free play of the clutch pedal
Procedure
Adjust the bar (1) so that the free play (2) of
the pedal is 29 mm.
GUID-206D2071-0213-4B13-B0F2-C52EC68199EF-high.jpg [High]
Fig. 5
1.2.4 Checking the slack of the power take-o clutch lever
Procedure
Adjust the screw (1) so that the free play (3)
at the tip of the lever (2) is 15 mm.
GUID-B070DD21-F7C1-4DFA-9513-A42950984676-high.jpg [High]
Fig. 6
GUID-F0682C32-7BFE-4854-8A7F-7CD88D7A7DCA [V2]
GUID-2BB81A4E-9943-4569-914E-2C15E7DD222C [V2]
1. Introduction
1-26
ACX2831410
