1.3 Fuse box
1.3.1 Replace a fuse
GUID-93C14421-9087-4C74-B998-8B72F9504D92-high.jpg [High]

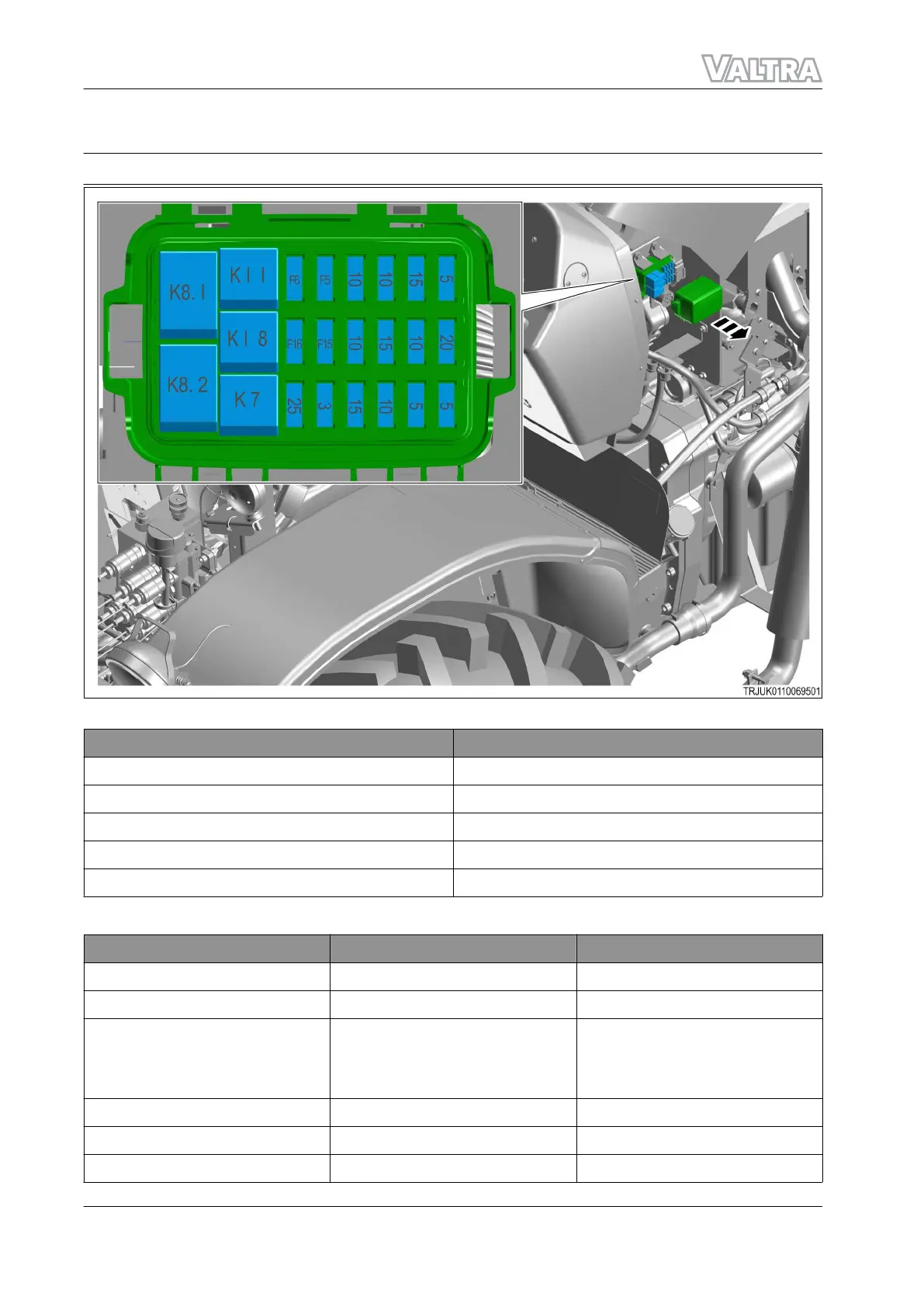

Fig. 8
Position Relay
K7 Continuous flow seal relay
K11 Clutch relay
K18 Front head lamp relay
K8.1 Brake lamp relay and left direction indicator
K8.2 Brake lamp relay and right direction indicator
Position Capacity (A) Fuse
F1 5 Ignition key
F2 15 Head lamps
F3 10
• High and low beam head
lamps
• License plate lamp
F4 10 Direction indicators
F11 25 Work lamp
F12 10 Horn
