DEVICE SETUP
SAM Card
16 T650P INSTALLATION GUIDE

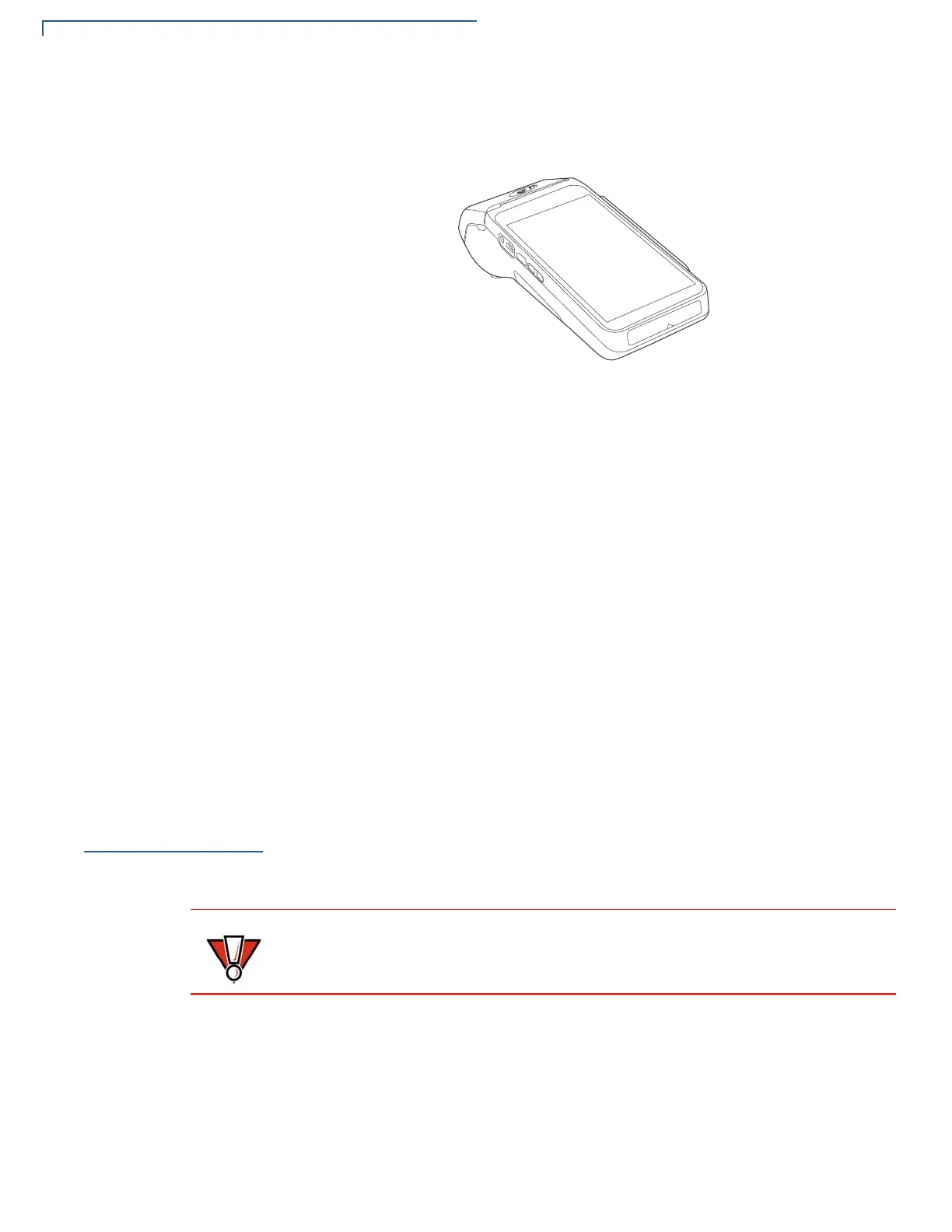

Figure 3 T650p (Front Panel)
Front Panel
The front panel offers the following features:
• The T650p device has a colored touch screen display.
• A smart card reader is built into the front of the device to process smart card-
based debit or credit transactions. For directions on how to use a smart card,
see Using the Smart Card Reader.
• A magnetic card reader built into the device for performing debit or credit card
transactions. The card can be swiped from either direction. To ensure a proper
read of the magnetic swipe card, insert the magnetic card from the side of the
device as shown in Figure 11.
• Contactless Reader and EMV have dedicated LEDs lower to the left of the
display for contactless payments. For directions on how to conduct contactless
transactions, see Using the Contactless Reader.
• A 3.5 mm audio jack to facilitate accessibility for the visually impaired.
SAM Card
When you first receive your T650p, you may need to install one or more SAM
cards, or you may need to replace old cards. You may need to install one or two
Multiple Security Access Module cards or replace an old one.
Installing or
Replacing SAM Card
To install or replace SAM cards:
1 Power off the device.
2 Place the device face down on a soft and clean surface.
3 Remove the back cover of the unit.
Observe standard precautions when handling electrostatically sensitive devices.
Electrostatic discharges can damage this equipment. Verifone recommends
using a grounded anti-static wrist strap.
