DEVICE SETUP
Cable Connections
24 T650P INSTALLATION GUIDE
Cable
Connections
You can connect the T650p to peripherals using the Full-Function Base.
Cable Connections Using the Full-Feature Base.
Cable Connections
Using the Full-
Feature Base
To connect the terminal to other devices via Ethernet, RS-232, and USB, use the
T650p Full-Feature (FF) Base. The FF Base provides a standard RJ-45 LAN
socket, RS-232 port, a micro-USB port. The T650p terminal must be docked on
the base to utilize cable connectivity and the Full Feature Base supports BT
pairing with the T650p. If the terminal is paired with the base the wired base
connection will be routed to the terminal via its BT connection.

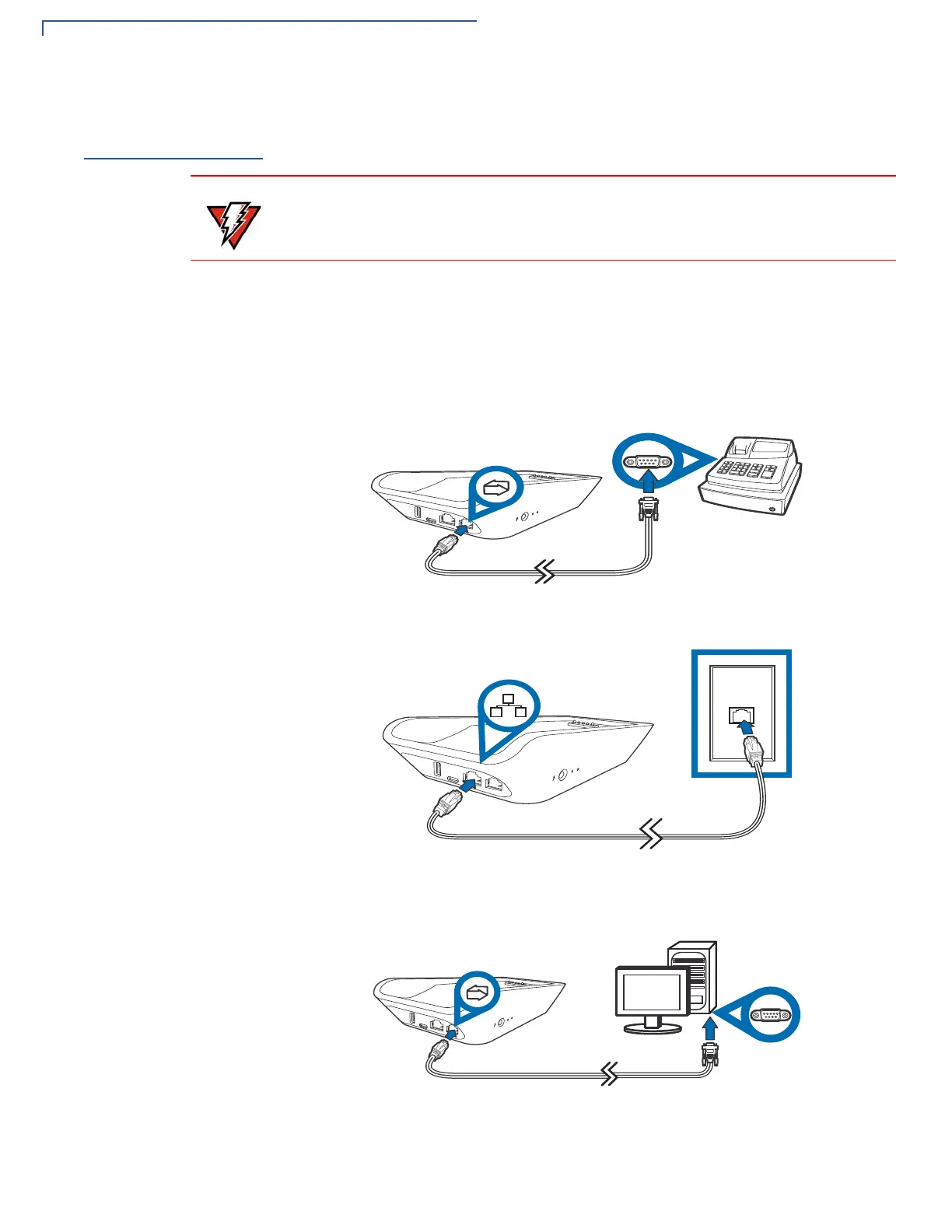

Figure 14 Full-Feature Base Peripheral Connections
Turn off or unplug the terminal when connecting or disconnecting the device to
avoid device memory corruption and data loss.
