DEVICE SETUP
Optional Accessories
T650
P INSTALLATION GUIDE 25
Optional
Accessories
These accessories can be used to further enhance the device’s functionality. See
Accessories and Documentation for additional information.
Bluetooth paring
Between Full-
Feature Base and
T650P
1 Download and Install Base Control app.

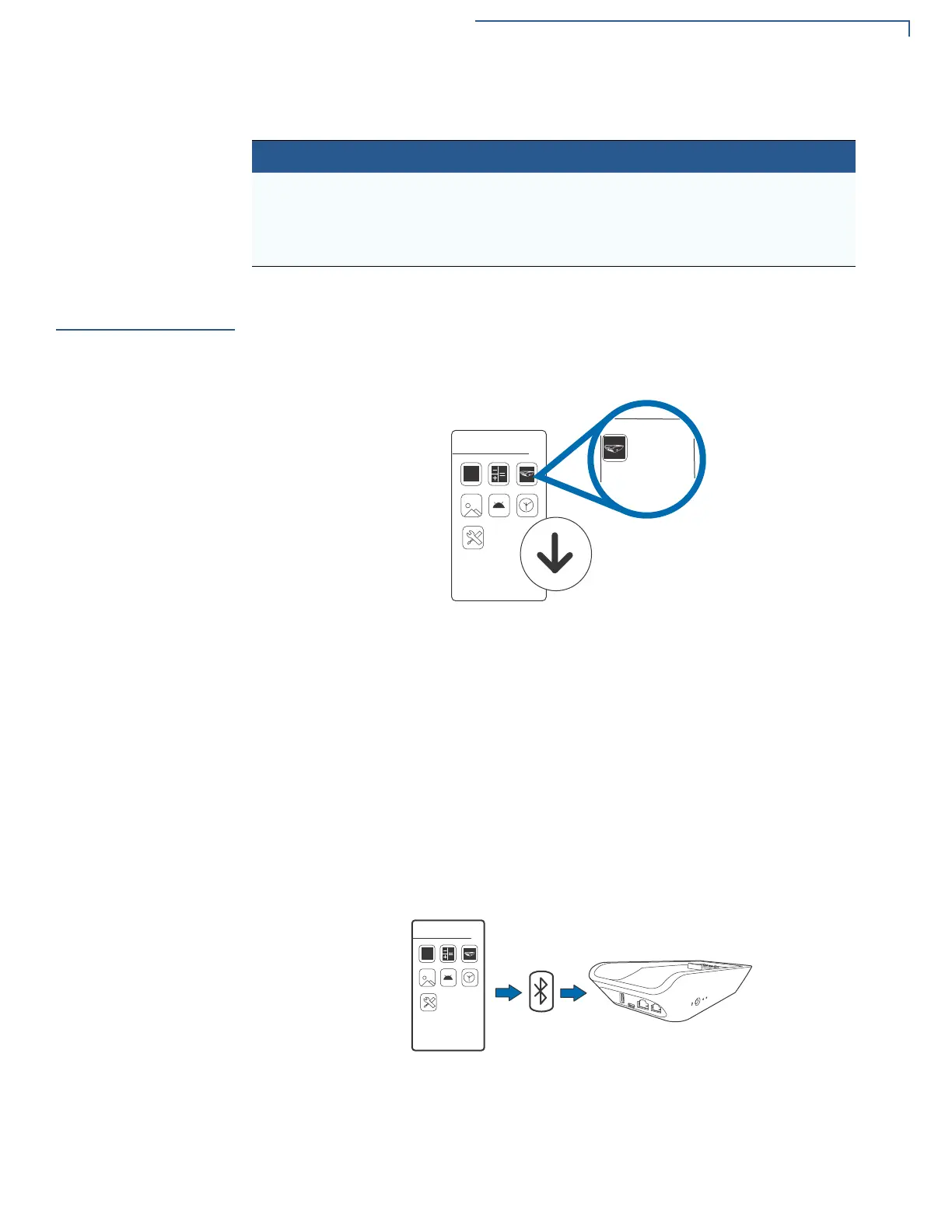

Figure 15 Download Base Control app
2 Make sure Bluetooth is turned ON and go to "PAIR A NEW DOCK" option in
the app.
3 Follow the instruction from the app to press pairing button on the base.
4 On the next screen, use the camera to align the circles over the LED lights on
the side of the base while the device lays on its side.
5 Make sure the circles and the LED lights on the base are lined up, hold still
T650p and pairing will start automatically.
6 Follow the instruction on the screen to hold the pairing button on the base for 3
seconds and release the button.
Figure 16 T650p Bluetooth Pairing with Base
7 Once pairing is successfully completed, the base with its S/N will show up
under "Connected Docks" on the screen.
Cable Configuration
Ethernet port RJ-45 socket (for connecting PINPad to
LAN infrastructure)
RS232 port RJ-45 socket
USB ports Micro USB and type A USB
