2. Installation Instruction Of Three-Layer Battery Rack
Packing list
Accessory 1 Accessory 2 Accessory 3 Accessory 4

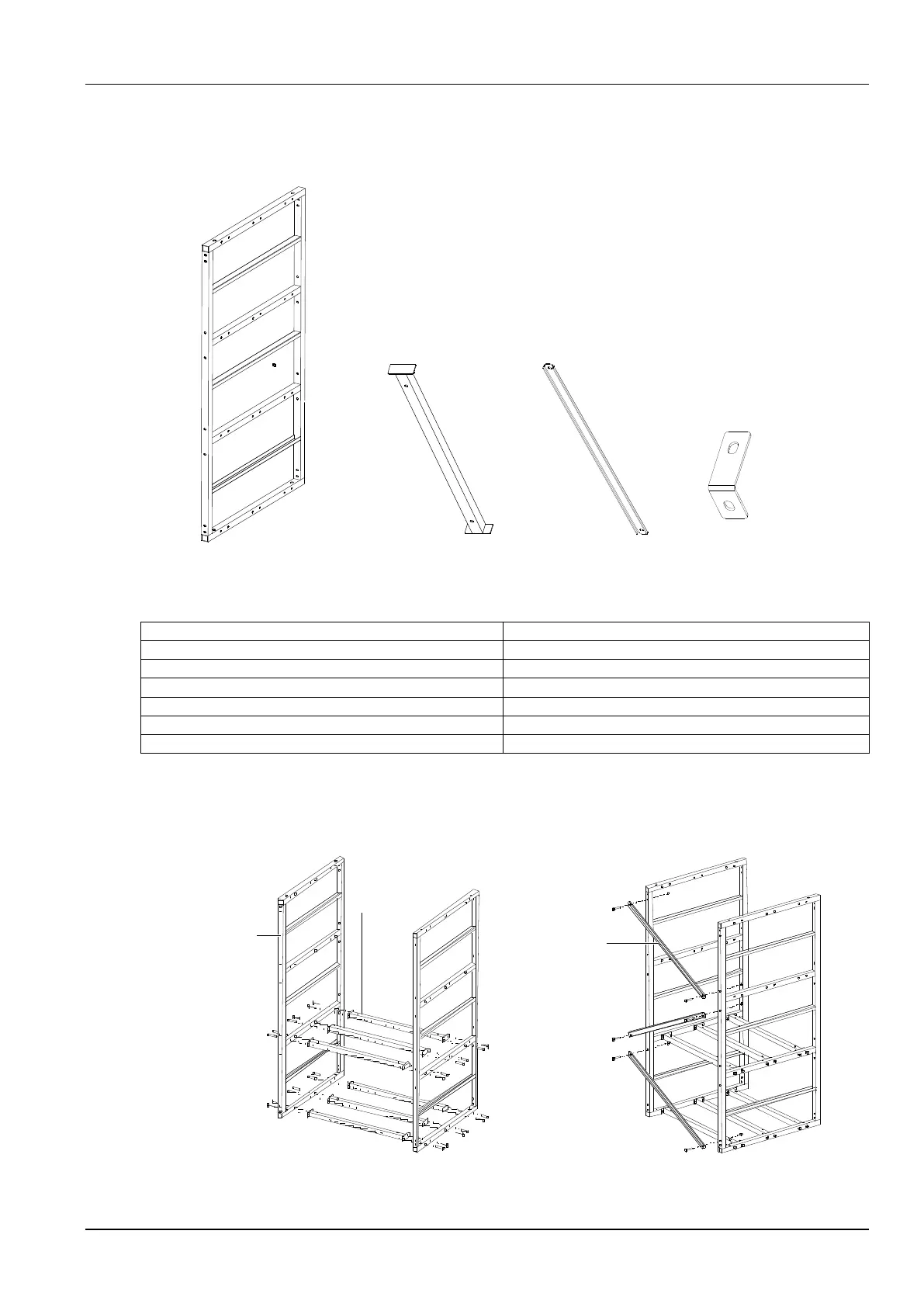

Figure 5 Accessory
Table 3 Packing list of the battery rack
Accessory
Accessory number
Accessory 1
2
Accessory 2
6
Accessory 3
3
Accessory 4
2
Expansion bolt
4 pieces
Fastener
1 set
Installation procedures
1. Install accessory 1 and accessory 2 according to Figure 6 (a).
2. Install accessory 3 according to Figure 6 (b).
Accessory 1
Accessory 2
Accessory 3
(a) (b)
Figure 6 Installation procedure of accessory 1 ~ accessory 3
