13F4, 13A4, 13A4.B - 13F7, 13A7, 13A7.B

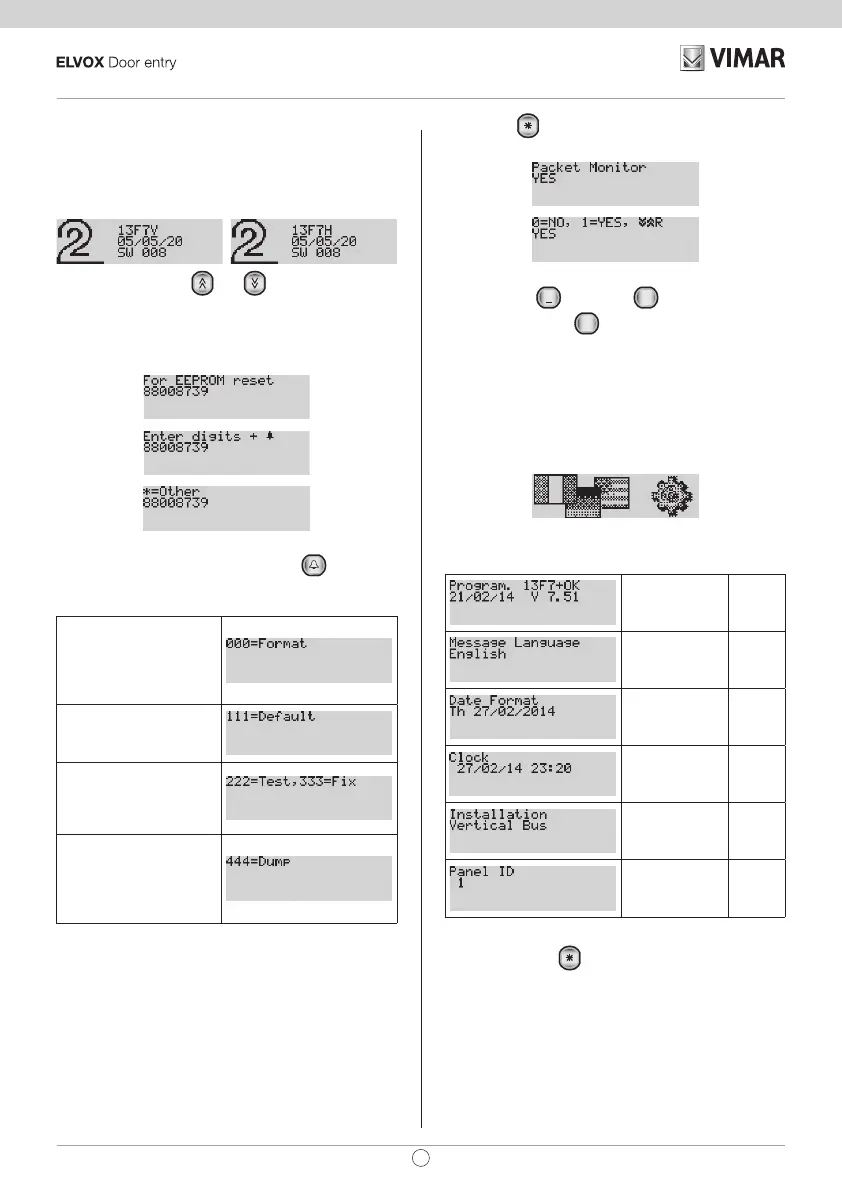

Switching on the electronic unit
Each time the electronic unit is switched on, the display shows
the animation of the Due Fili Plus logo. To skip it, press any key
on the numeric keypad. At the end a picture shows the main FW
version, release date and whether it is working as a Vertical or
Horizontal Installation (V and H respectively).
You can now press the and buttons simultaneously
to enter the factory conguration initialization procedure. Keep
them pressed until conrmation on the display.
Factory initialization procedures
The number on the second line will be different each time. Key
in the number displayed and then press the
button. You
can now:
Completely delete all the
stored information and then
return the current congura-
tion to the factory default.
This procedure takes time.
Takes the current congura-
tion to the factory default.
Checks the congruence of
the internal structures (Test)
and corrects them if there is
any error (Fix).
Extracts the current con-
guration and some of
those after formatting. You
need special software for
your PC.
Note: Except for 111, all these procedures are to be carried out
only when directed by Customer Service.
Note: The entire procedure for entering the 8 digits and select-
ing the function must be completed within 20 s of starting, with
no timeout renewal.
After clearing the memory, the electronic unit restarts and re-
verts automatically to at-rest status.
Other settings
Press button . The only current item is:
Enabling is essential in order to use the SW on PC SaveProg
/ EVCom. Press
1
for YES and
0
+
for NO. To exit pro-
gramming mode, press
R
.
Default: Yes
Switching on the rst time
When the electronic unit is turned on for the rst time, the rst
conguration procedure starts automatically which consists in
the prompt to specify some basic parameters. The procedure is
highlighted by this picture:
You can now run a subset of the congurations of the electronic
unit, those that most determine the operating characteristics or
that are necessary for other reasons.
PARAMETER Para-
graph
Language 1.0
Date and Time
format
4.10
Date and time 5.0
Installation 1.2
Electronic unit ID 1.1
The first switch-on procedure ends due to timeout (30 s) or by
explicitly exiting with
. At the next restart it will no longer be
automatically presented. To invoke it again, press the RESET
button and then keep the PRG button pressed down until the
first switch-on procedure is invoked.
Indoor unit ID codes
An unambiguous ID code can be attributed to each indoor unit.
The encoding is performed by the MASTER electronic unit that
may be the electronic unit with ID = 1 in the case of Vertical
