13F4, 13A4, 13A4.B - 13F7, 13A7, 13A7.B

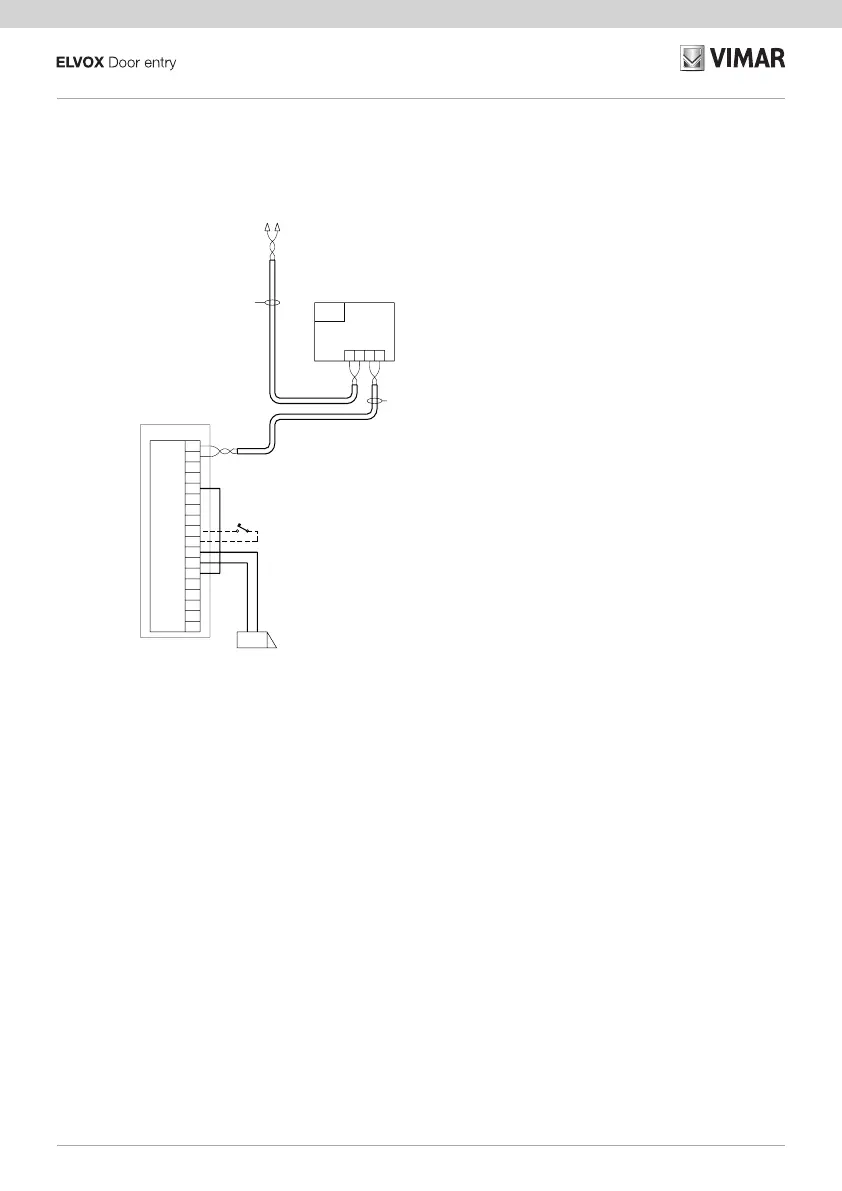

Schema di collegamento unità elettronica audio o video
Wiring diagram for audio or video electronic unit
B1
1
2B2
EXT+
EXT-
M
PA
X
VLED
B1
B2
S+
S-
F2
F1
SR
-L
+12V
M
M
CA
EXT+
EXT-
M
PA
X
VLED
B1
B2
S+
S-
F2
F1
SR
-L
+12V
M
M
CA
1
2
RETE
MAINS
Montante
Cable riser
D
F
P
L
x
x
C - Unità elettronica audio o video
F - Alimentatore di sistema
L - Serratura elettrica 12 Vdc
P - Comando apriporta
X - Cavo twistato
C - Audio or video electronic unit
F - System power supply unit
L - Electric lock 12 V DC
P - Door release control
X - Twisted pair cable
Schemi di collegamento - Wiring diagrams
