3) DESCRIPTION OF THE STAIRLIFT
3.1) Description

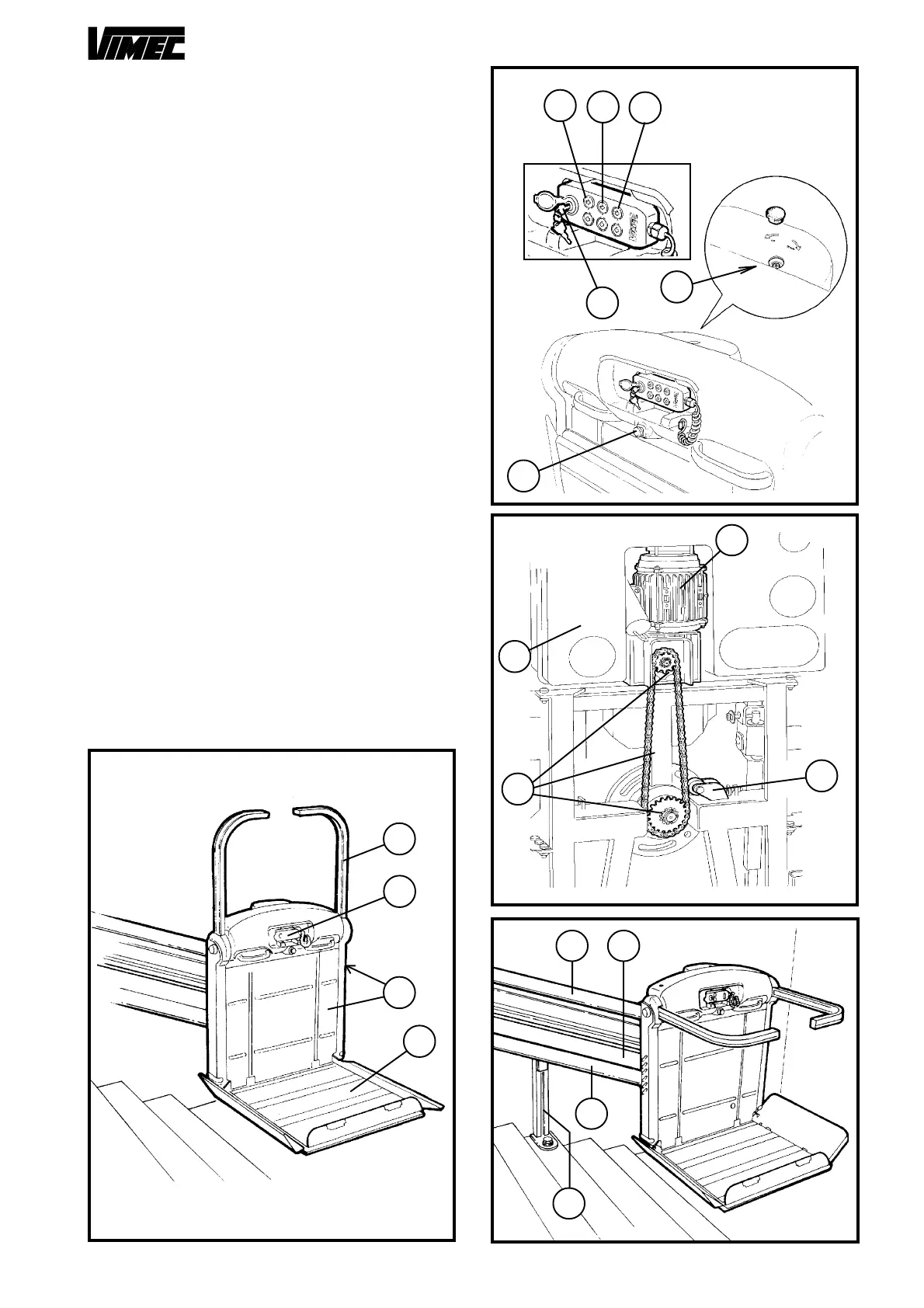

Lift unit - Fig. 1
Comprises:
- carriage.
- load-bearing structure.
- safety bars - Fig. 1/a.
- load platform - Fig. 1/c.
- bodywork - Fig. 1/b.
- control board - Fig. 1/d.
Contains:
- motor - Fig. 3/a.
- transmission components - Fig. 3/b.
- electric system - Fig. 3/c.
The control board carries the following controls:
- control enabling key - Fig. 2/a.
- up/down buttons - Fig. 2/b.
- bar operating buttons - Fig. 2/c.
- platform operating buttons - Fig. 2/d.
On the lift unit:
- emergency stop(red mushroom-head button) Fig.2/e.
- connection for handwheel for manual operation Fig.2/f.
Rails - Fig. 4
Comprises:
- Rail - Fig. 4/a.
- Wall connections.
- Plastic cable carrier chain with guide - Fig. 4/c.
- Feet for stairs (optional) - Fig. 4/b.
FIG.1
FIG.3
a
b
c
a
b
f
d
c
d
b
c
b
a
FIG.4
a
b
c
a
e
