18 19
TF40
ONLY

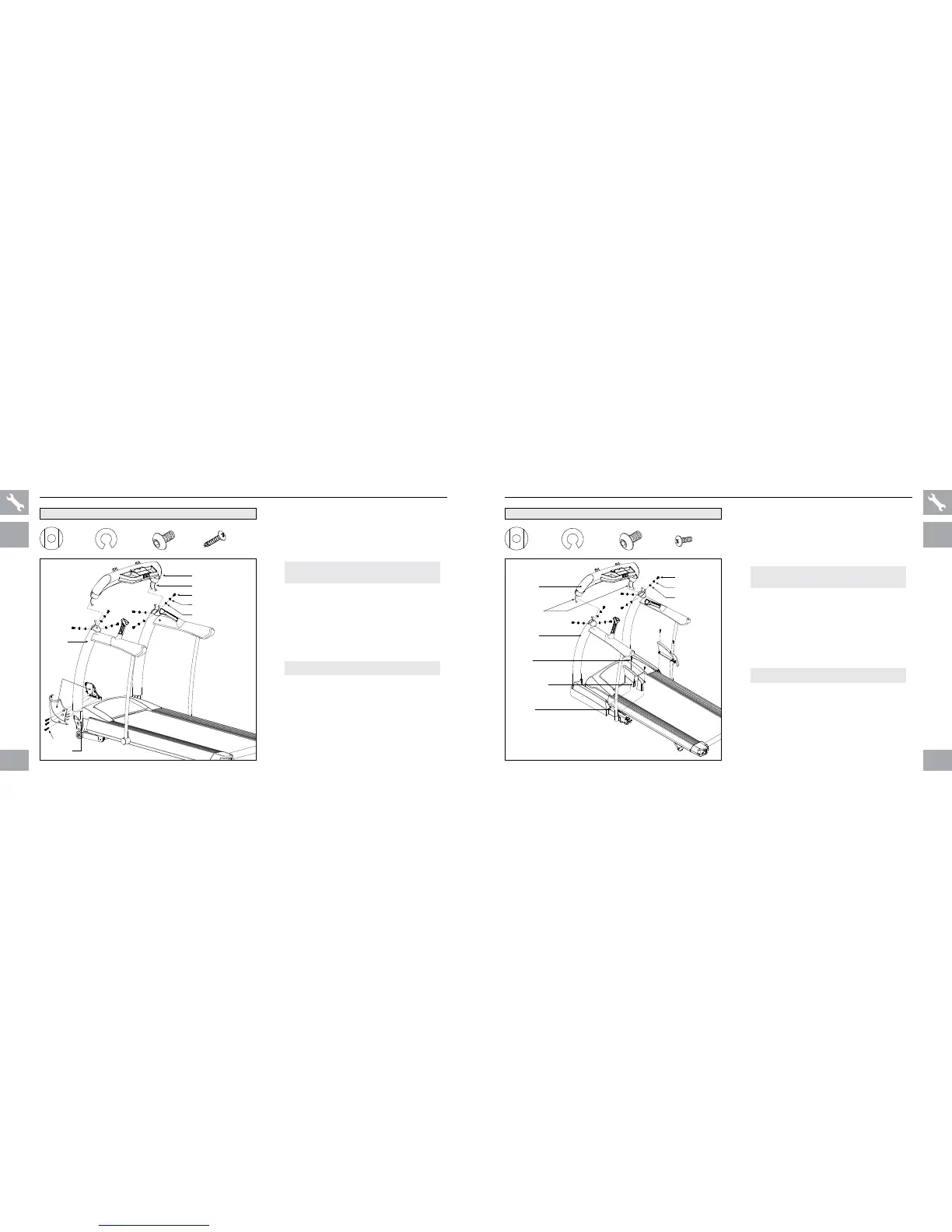

T40 ASSEMBLY STEP 4
T40
ONLY
BOLT (A)
20 mm
Qty: 6
SCREW (G)
12 mm
Qty: 6
SPRI NG
WASHER (B)
8.2 mm
Qty: 6
ARC
WASHER (E)
8.4 mm
Qty: 6
HARDWARE FOR STEP 4 :
ARC WASHERS (D)
SPRI NG WASHERS (B)
SCREWS (G)
MAST
COVERS
CONSOLE
MAST
BASE FRAME
BOLTS (A)
CONSOLE BASE
CONSOLE CABLES
NOTE: This step is for T40 models only.
A Open hardware for step 4.
B Gently place console base on top of
console masts.
C Connect the console cables and tuck
them inside the console masts and slide
console base into console masts.
D Connect the console base to console
masts using 6 arc washers (e), 6
spring washers (b) and 6 bolts (a).
E Attach mast covers to base frame
using 3 screws (g).
F Repeat on other side.
NOTE: Be careful not to pinch the console
cables while attaching the console base.
NOTE: Tighten all bolts from STEPS 1–3.
BOLT (A)
20 mm
Qty: 6
SPRI NG
WASHER (B)
8.2 mm
Qty: 6
ARC
WASHER (E)
8.4 mm
Qty: 6
SCREW (N)
12 mm
Qty: 4
TF40 ASSEMBLY STEP 4
HARDWARE FOR STEP 4 :
ARC WASHER S (D)
SPRI NG WASHER S (B)
BOLTS (A)
CONSOLE BASE
CONSOLE CABLES
CONSOLE MAST
BASE FRAME COVER
SCREWS (N)
BASE FRAME
NOTE: This step is for TF40 models only.
A Open hardware for step 4.
B Gently place console base on top of
console masts.
NOTE: Be careful not to pinch the console
cables while attaching the console base.
C
Connect the console cables and tuck
them inside the console masts and slide
console base into console masts.
D Connect the console base to console
masts using 6 arc washers (e), 6
spring washers (b) and 6 bolts (a).
NOTE: Tighten all bolts from STEPS 1–3.
E
Attach the base frame covers to the
base frame using 4 screws (n).
T40 ONLY TF40 ONLY
