10TA Service Manual

SERVICE OPERATIONS

4/28/14

9-15

Solenoid Valves All solenoid valves are pilot operated with “floating” type diaphragms. For

satisfactory operation, be sure that the manual opening stem is in the closed or automatic position.

This means the stem is backed all the way out. Correct direction of stem rotation should be labeled

on the stem seal nut.

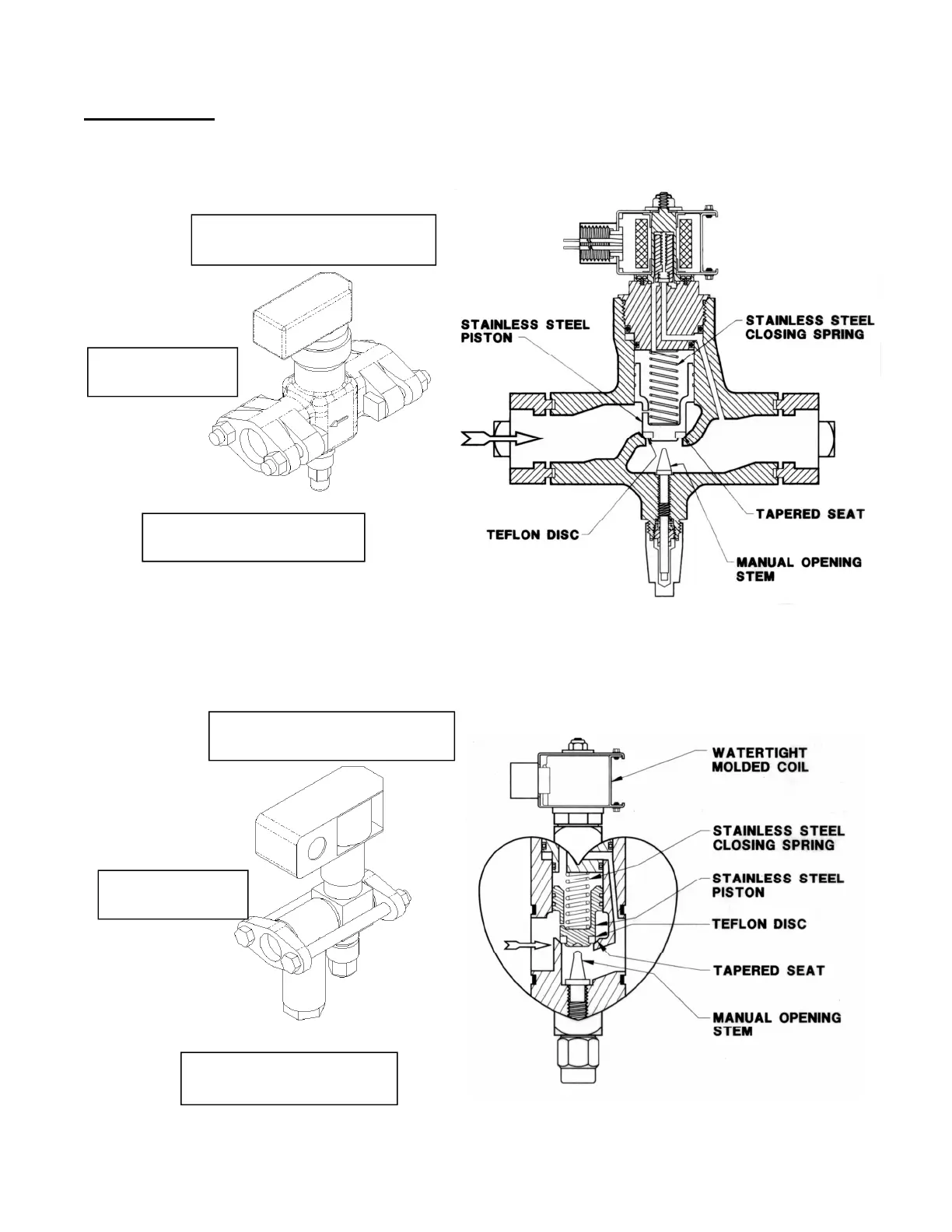

FIGURE 9-10A

Thawing Gas Solenoid Valve (“D” Valve)

FIGURE 9-10B

Liquid Feed Solenoid Valve (“A1” & “A2” Valve)

Hansen 1 1/4” Solenoid Valve

Part No. 12A4200A1001

Hansen Rebuild kit – HS8

Part No. 12A4199V51

Hansen 1/2” Solenoid Valve

Part No. 12A4200A0604

208/230V coil

Part No.126229

Hansen Rebuild Kit – HS7

Part No. 12A4199V52

208/230V coil

Part No.126229
