6.3 Detecting leaks in refrigerant circuit us‐
ing leak detecting system - VAS 6196-
or leak detecting system - VAS 6201- or
a later model
Note
Small leaks can be detected with, for example, an UV leak de‐
tector additive.
– Evacuate refrigerant circuit using an air conditioner service
station ⇒ page 50 .
Note
♦
If a larger leak is detected during the evacuation process, de‐
termine cause and rectify as described ⇒ page 50 .
♦
If during the evacuation process no leak is detected or a very
small leak is detected that but cannot be located, proceed as
follows ⇒ page 56 .
♦
Refrigerant gas is quickly dispersed by air motion. Therefore
drafts must be avoided during a search for leaks.
♦
If the refrigerant circuit is completely empty, charge with about
10% of refrigerant capacity (sticker R134a or vehicle-specific
workshop manual).

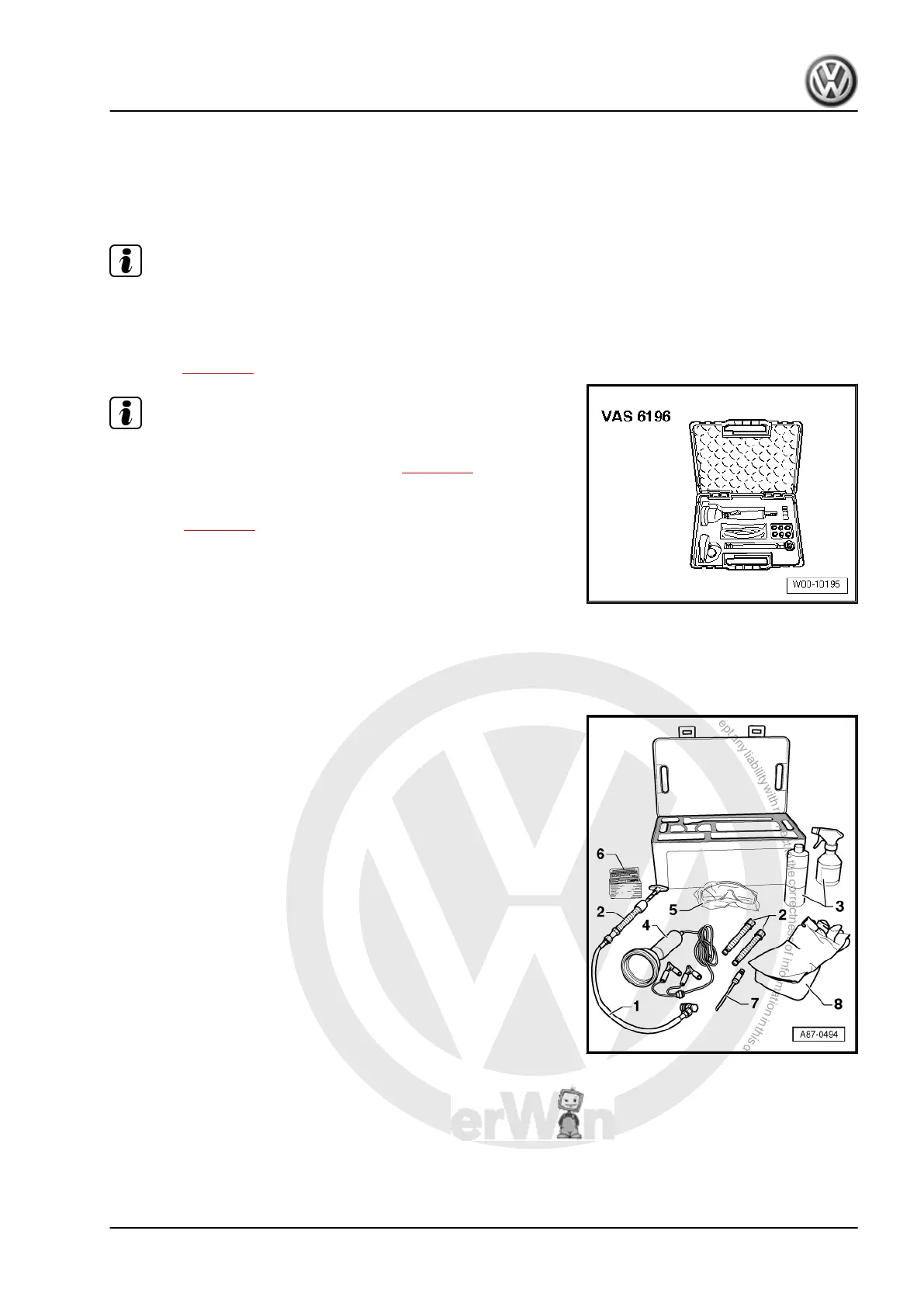

Leak detecting system - VAS 6196-
or
Leak detecting system - VAS 6201- or later model
1 - Hand pump with low-pressure service hose, service cou‐
pling and non-return valve - VAS 6201/1-
2 - Cartridge - VAS 6201/2-
3 - Cleaning solution - VAS 6201/3-
4 - UV leakage detector lamp - VAS 6201/4-
5 - UV absorbing eye protection - VAS 6201/6-
6 - Label - VAS 6201/7-
7 - Tube
VAS 6201/8
8 - Protective gloves - VAS 6201/9-
Amarok 2011 ➤ , Beetle 2012 ➤ , Bora 1999 ➤ , CC 2010 ➤ , CC 2012 ➤ , ...
Air conditioning system with refrigerant R134a - Edition 10.2014
6. Detecting leaks in refrigerant circuit 59
