2.8-ltr. V6 Engine ACK
Variable valve timer
A hydraulic cylinder lifts and lowers the variable
valve timer. Oil is supplied to the hydraulic cylinder
via the engine oil circuit.
The engine control unit controls the hydraulic cylin-
der via the variable valve timing valve, which is bol-
ted directly to the variable valve timer housing.

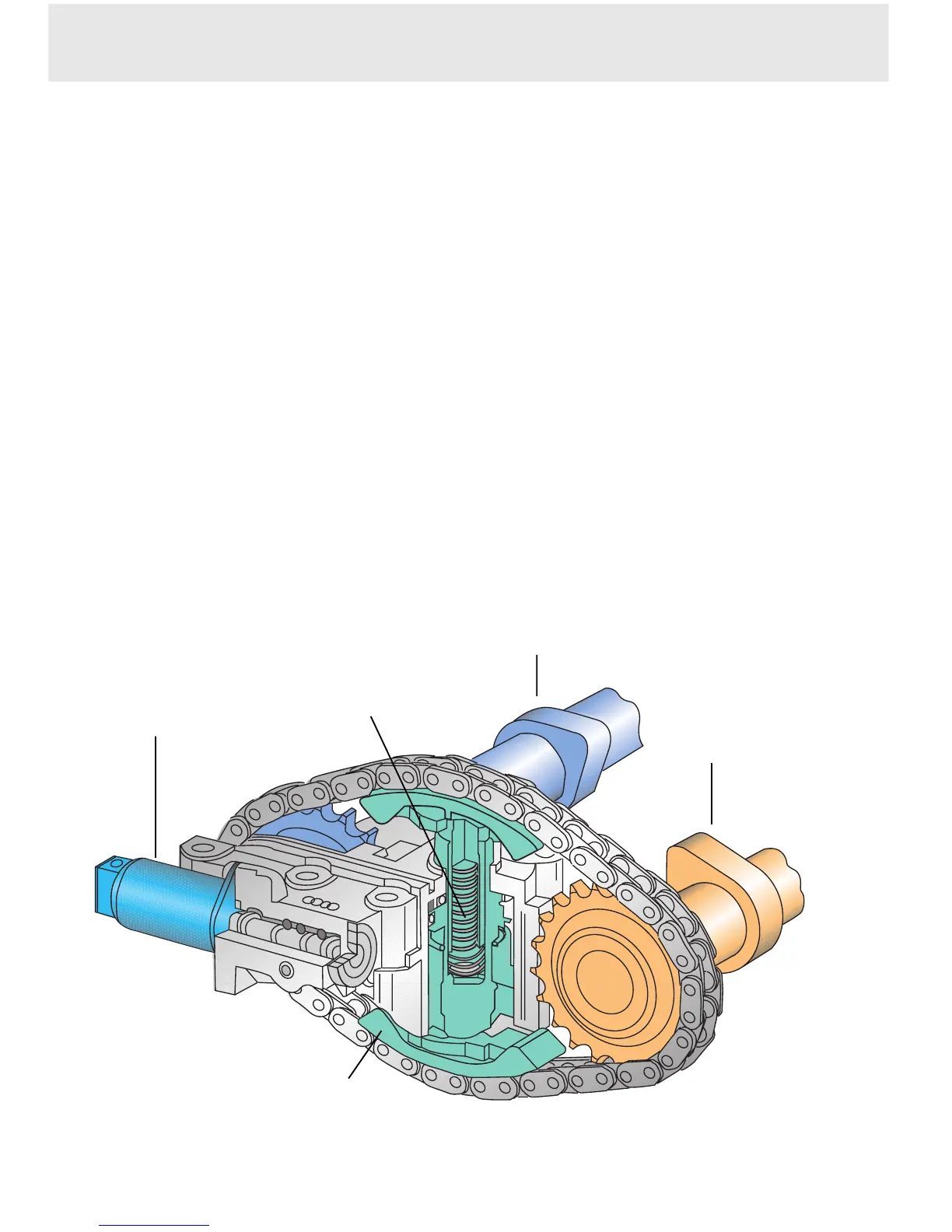

Variable valve timer with
integrated chain tensioner
Bank1, variable valve timing
valve N205
Hydraulic cylinder
Inlet camshaft
SSP 192/108
Exhaust camshaft
