17 18
16
IN OUT

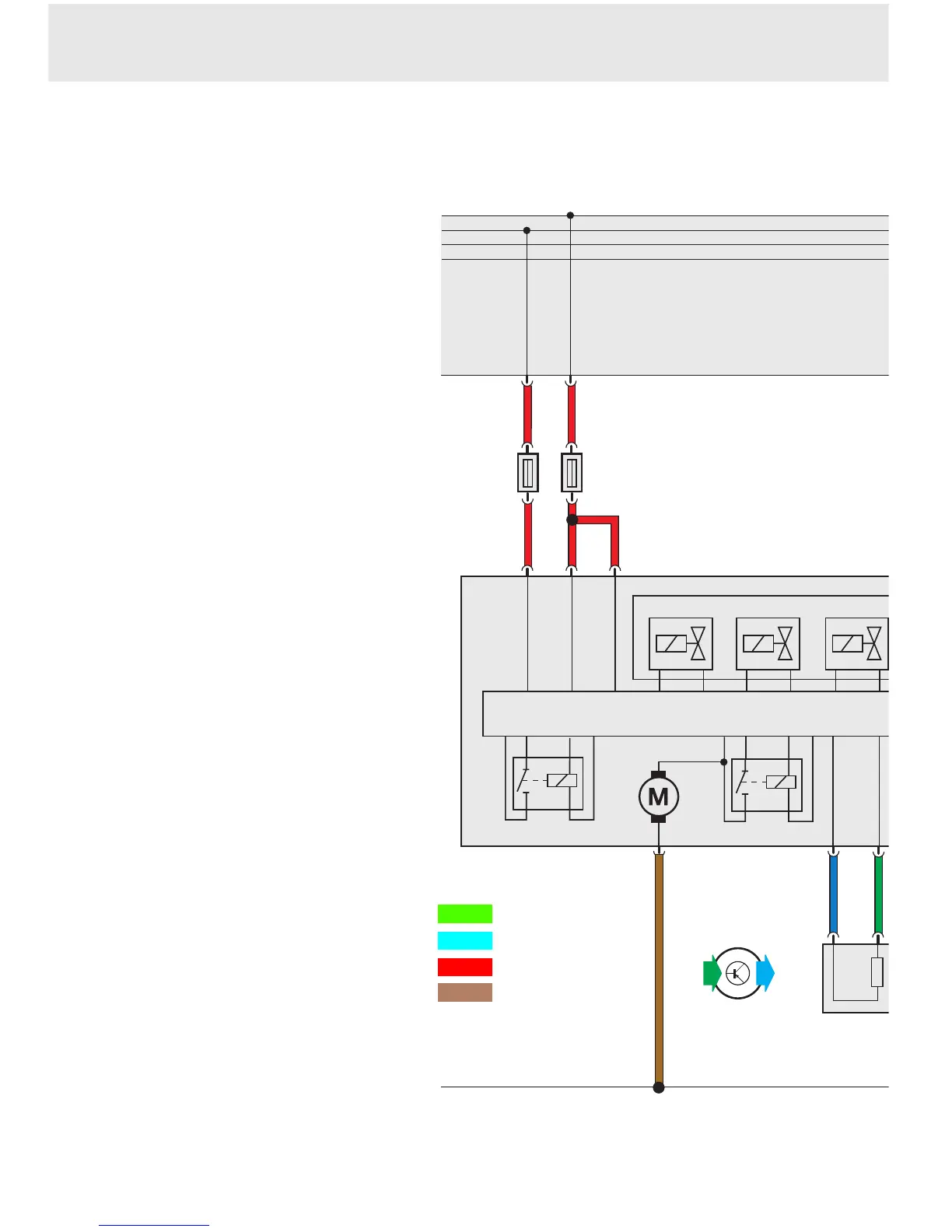

Components
F Brake light switch
G44 Rear right speed sensor 4
G45 Front right speed sensor 2
G46 Rear left speed sensor 3
G47 Front left speed sensor 1
J104 Control unit for ABS with EDL
J105 ABS recirculating pump relay
J106 Solenoid valve relay
J220 Control unit for Motronic
J285 Control unit with display unit
in dash panel insert
J401 Control unit for navigation system
with CD-ROM drive
K 47 ABS warning lamp
N99 Front right ABS inlet valve
N100 Front right ABS outlet valve
N101 Front left ABS inlet valve
N102 Front left ABS outlet valve
N133 Rear right ABS inlet valve
N134 Rear left ABS inlet valve
N135 Rear right ABS outlet valve
N136 Rear left ABS outlet valve
N166 Front right EDL switchover valve
N167 Front right EDL outlet valve
N167 Front left EDL switchover valve
N168 Front left EDL outlet valve
S Fuse
V39 ABS recirculating pump
Colour code
Input signal
Output signal
Positive
Earth
