52
Maintenance: Fuel System

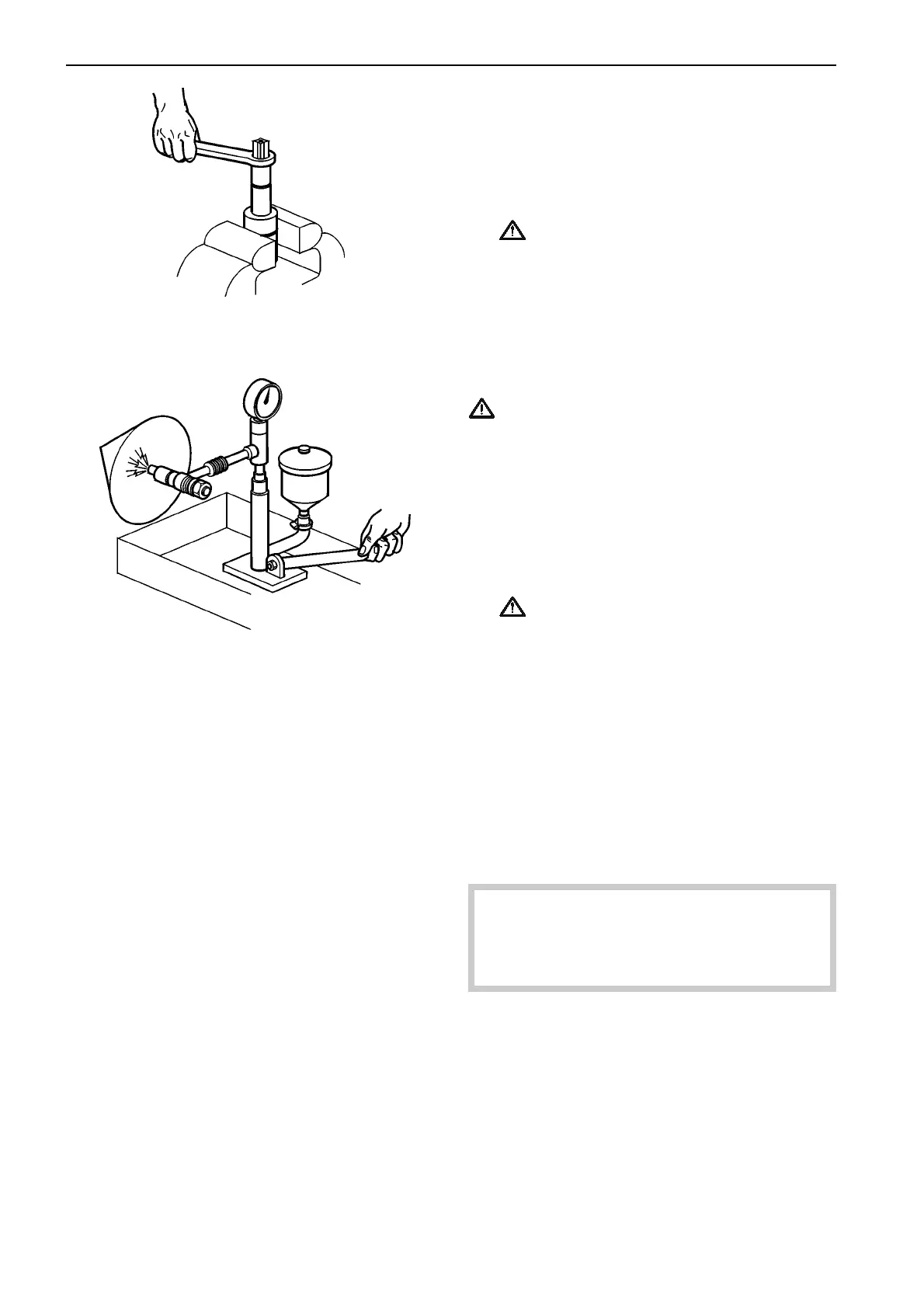

Installing the nozzle
1. Install the nozzle according to the pin on the
nozzle.
2. Tighten the retaining nut by applying the specified
torque 177 to 196 Nm (18 to 20kpm) [130 to 145
lbf.ft]. (Apply oil to the nut.)
IMPORTANT! Do not use Moly Disulfide.
3. Adjust the nozzle opening pressure and check
spray conditions.
Fuel injection pressure
WARNING! Do not allow the fuel injected from a
nozzle to contact the skin or body when
inspecting the nozzle using a nozzle tester. The
fuel injected from the nozzle has an extremely
high pressure, strong enough to penetrate skin
and causing serious injury.
1. Attach the fuel injector to the nozzle tester.
2. While watching the pressure gage of the nozzle
tester, push the handle down slowly.
IMPORTANT! If fuel drips from the end of
the nozzle tip it must be replaced.
3. When the handle is being pressed down, the fuel
is injected, and the pressure on the pressure
gage drops suddenly. The pressure value indica-
ted at this point is the fuel injection start pressure.
4. Close the valve on the injection pump. If the pres-
sure on the gage drops too fast ( most probably
due to lekage) the nozzle must be replaced.
NOTE! Make sure it isn’t the injection pump itself that
is leaking.
Nozzle opening pressure
21.57 MPa (220 kp/cm
2
) [3130 psi]
