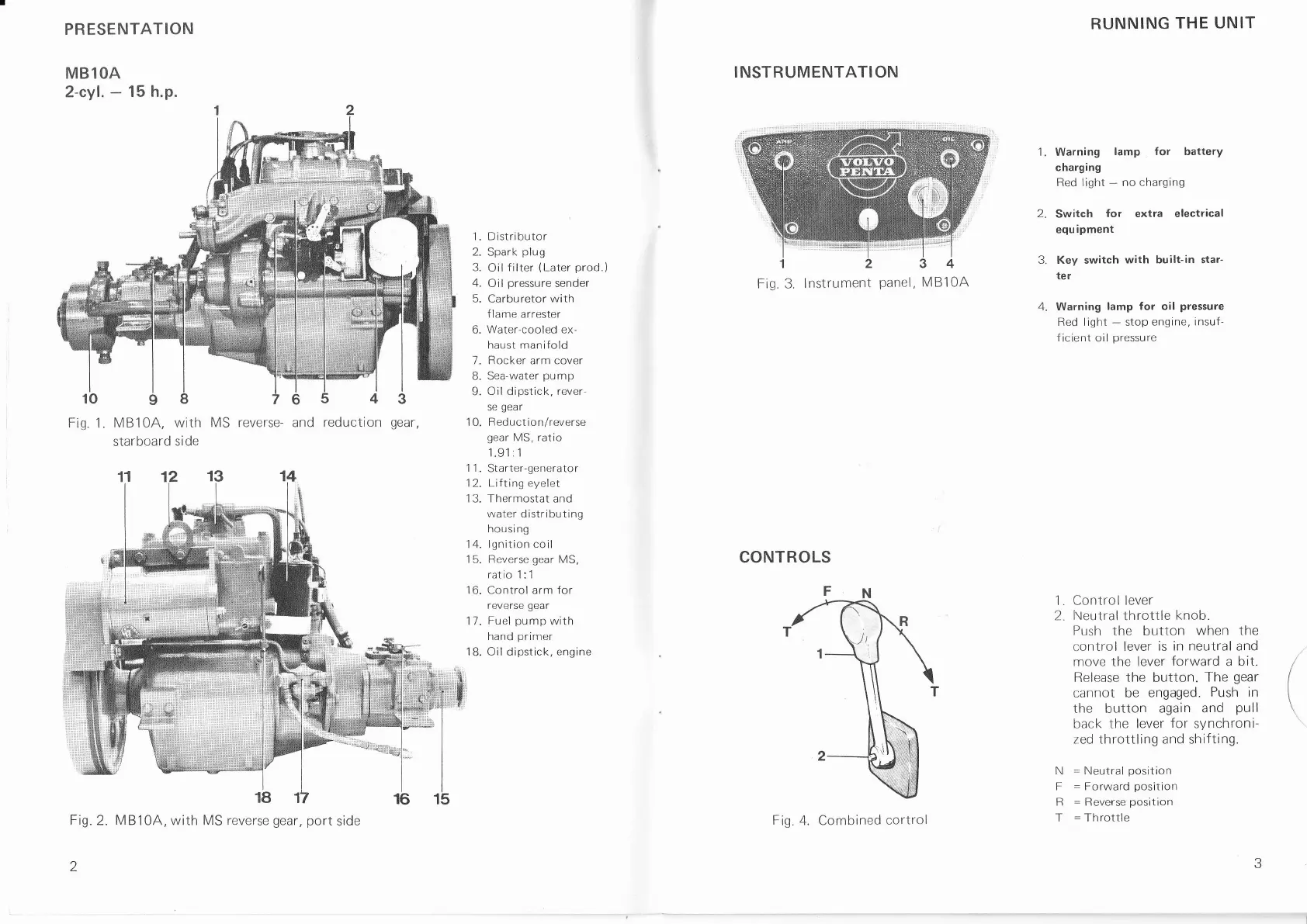

PRESENTATION
MBlOA
2-cvl.
-
15 h.p.
Fig.
1.
MB10A, with
MS reverse- and
reduction
gear,
starboard
side
Fig.
2.
MB10A,
with MS
reverse
gear, port
side
2
1. Distributor
2. Spark
plug
3.
Oilfilter
(Later
prod.)
4.
Oil
pressure
sender
5. Carburetor
with
flame
arrester
6.
Water-cooled ex-
haust manifold
7. Rocker arm cover
B. Sea-water
pump
9.
Oil dipstick, rever-
se
gear
1 0. Reduction/reverse
gear
l\,4S. ratio
1.91 : 1
1 1.
Starter-generator
1 2. Lifting eyelet
1 3. Thermostat and
water distributing
housing
14. lgnition coil
1 5.
Reverse
gear
MS,
ratio
1
I
1
16. Control arm for
reverse
gear
17.
Fuel
pump
with
hand
primer
18. Oil dipstick,
engine
INSTRUMENTATION
CONTROLS
RUNNING
THE UNIT
2.
1. Warning
lamp f
or
battery
charging
Red
light
-
no
charging
Switch
for extra electrical
equ
ipment
3. Key switch
with built-in star-
ter
4. Warning
lamp for oil
pressure
Red light
-
stop
engine, insuf-
ficient
oil
pressure
1. Control Iever
2.
l\eutral
throttle
knob.
Push
the button
when
the
control lever is
in neutral and
move the lever
forward
a
bit.
Release the
button.
The
gear
cannot be
engaged.
Push in
the button
again and
pull
back the
lever
for
synchroni-
zed
throttling
and shifting.
N
=
Neutral
position
F
-
Forward
posltion
R
=
Reverse
position
T
=
Throttle
.J
Fig.3.
lnstrument
panel,
MB10A
Fig
4. Combined
cortrol
