Control units

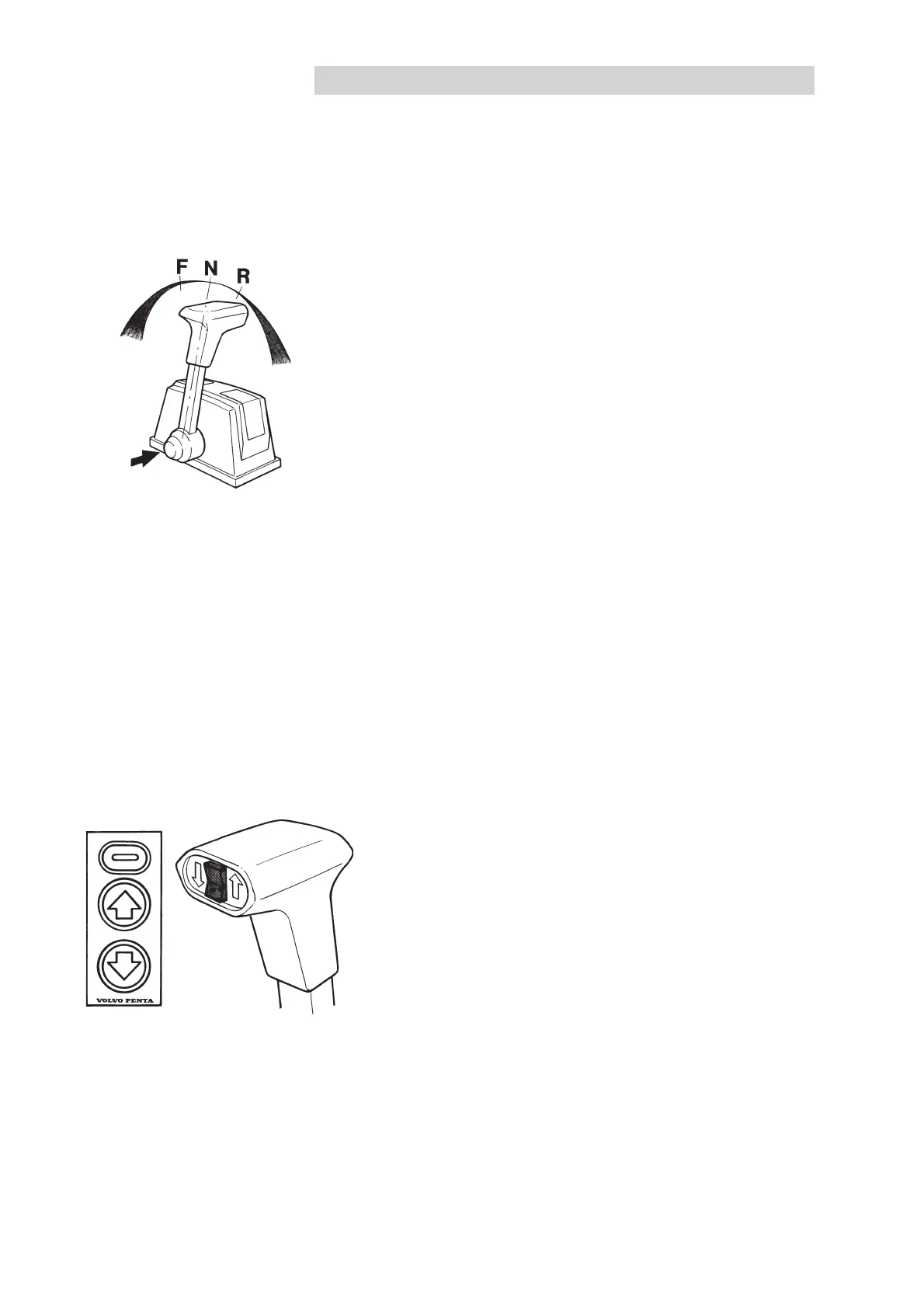

Single lever control
Release. Lever in neutral N. Press the button in the
centre of the lever hub. Push the lever forward
slightly. Release the button. Only the speed will be
affected now. When the lever is returned to the neu-
tral position, it comes out of neutral automatically
and the speed, forward and reverse can be regula-
ted.
F = Forward. Simultaneous control of speed and
movement.
R = Reverse. Simultaneous control of speed and
movement.
Power Trim controls
Trimming and tilting the drive is done either from
the separate control panel or using trim buttons on
the control, if the control is suitably equipped.
The drive’s trim position is shown on the separate
instrument which is available in two configurations -
digital and analog.
The control panel has three buttons. The bottom
one lowers the bow, the middle one raises the bow
and the other, red, button in combination with the
middle button trims the drive in the Beach range
(not DPX).
The control button on the control lever raises and
lowers the bow by pressing its upper or lower seg-
ment. The separate switch on the instrument panel
must be pressed to put the drive into Beach range
(not DPX).
