13
Trim instruments

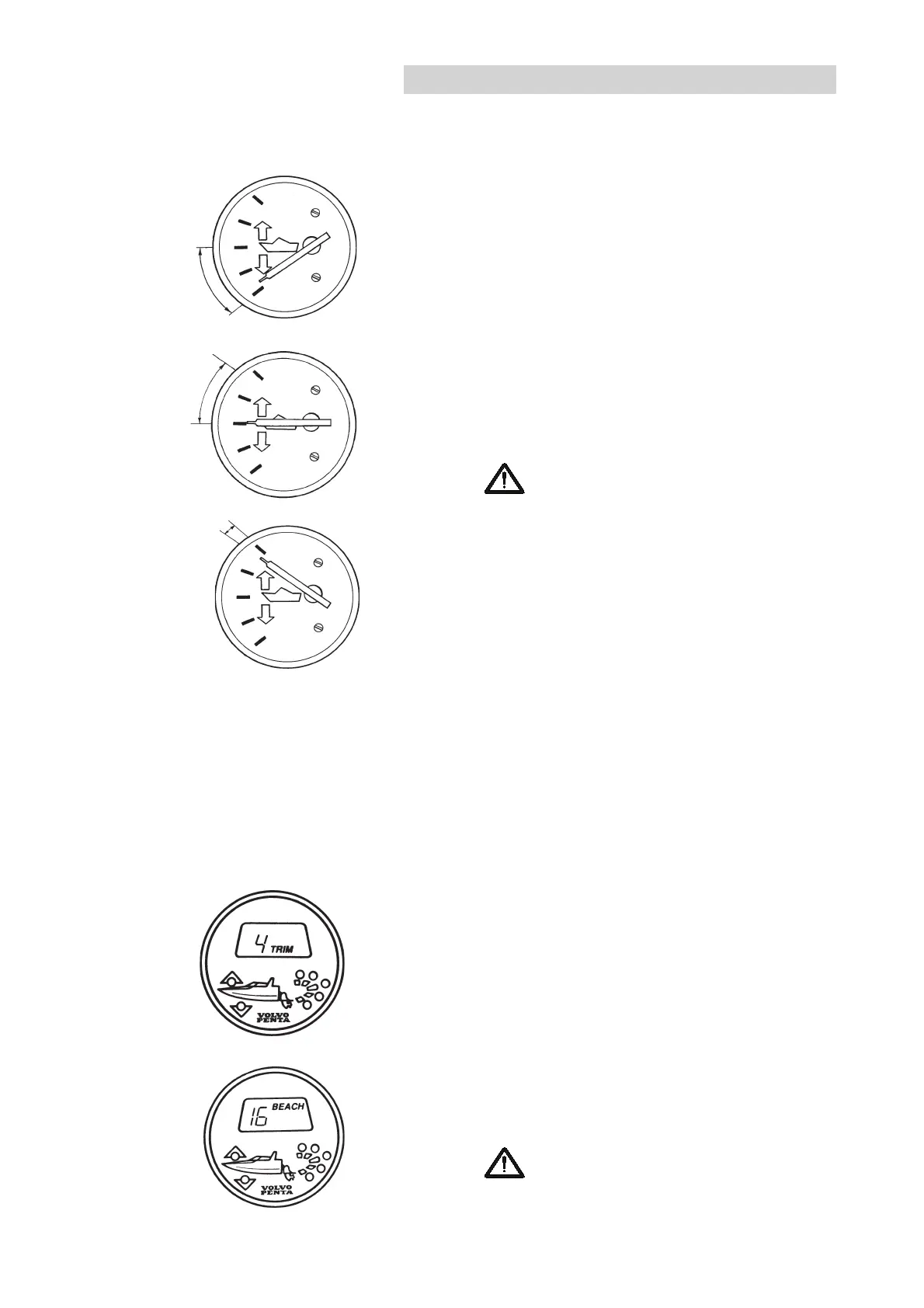

Analog trim instrument, DP
The instrument is provided with a 5-line instrument
face. The range from the lowermost to the 4th mark
is the trim range, and is used during running, from
start to planing speed.
The red range to just below the the last line is the
beach range. Thebeach range is used where shal-
low waters are suspected and when running in shal-
low waters at reduced speed, when launching or
winching from/to a trailer ramp and when the boat is
beached.
The area just before the last line is the lift range.
This range is used whenyou need a maximum tilt.
The Power Trim system is provided with an automa-
tic switch which breaks the current at the end posi-
tion. The stop is reset automatically when the drive
is lowered.
WARNING ! The engine must never be run
while the drive is in the lift range.
Digital trim instrument, DP
Shows the current figure within the measurement
ange. This figure corresponds to the drive’s angle in
relation to a vertical line (boat laying still). The
Power Trim instrument is provided with a built-in
checking program, which starts every time the in-
strumentation is engaged – every time the key
switch is turned on. When the checking program is
running, all the LCD segments light up and “A BE-
ACH” is indicated. After that the instrument returns
to the mode indicating the actual trim angle of the
drive.
TRIM = Max trim through 5. Drive position at all
speeds.
BEACH = Used when tying up in shallow water or
where there is doubt about the depth. The speed
must always be slow. Range 6 through 40
LIFT = Flashing red warning light (digital instru-
ments). Drive fully tilted.
WARNING ! The engine must never be run
while the drive is in the lift range.
