Control panel
The control unit is manouvred by pushing the seven buttons on the control panel. The panel is also equipped
with an LCD screen and three separate LEDs for indication. Three of the buttons are also equipped with
indicating LEDs.
If your boat is fitted with instruments not described here and you are not sure of their function, please get in touch
with your boat dealer.

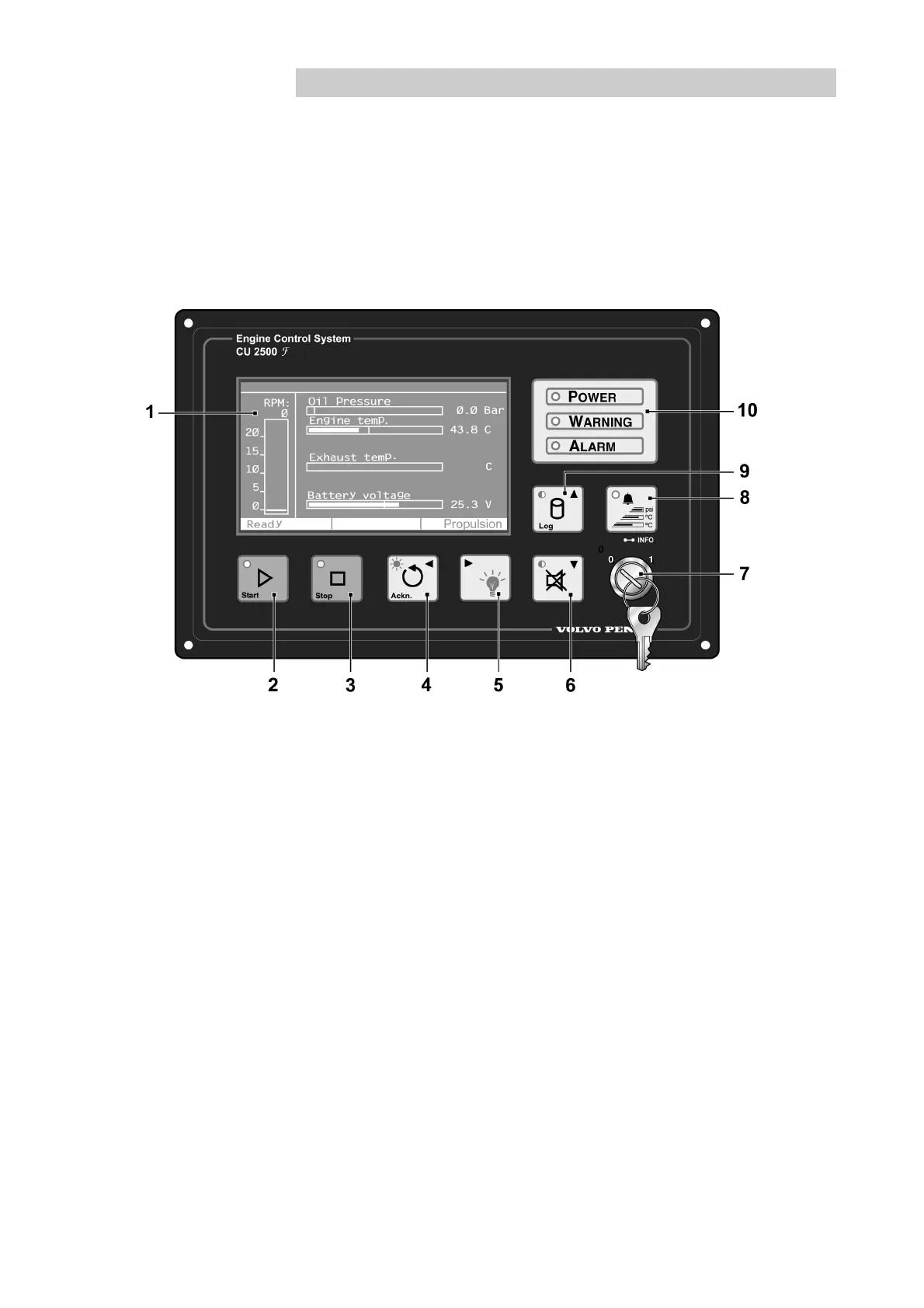

Control panel
1. LCD screen
2. Start button
3. Stop button
4. Acknowledge button and Left button
5. Lamptest button and Right button
6. Buzzer off* button and Down button
7. Key switch,
0 = Off position
1 = Voltage on (drive position)
The key can be removed in either position
8. Display button (”Change view”)
9. Log button and Up button
10. LEDs for indication
* Note. Pressing and holding “Buzzer off” button toggles day- and night light conditions.
