Drive belt, change
1 Disconnect the main switch(es) and check that the
engine is not connected to system voltage.
2 Remove the fan guard and fan ring round the
cooling fan.
3 Remove the belt guard.

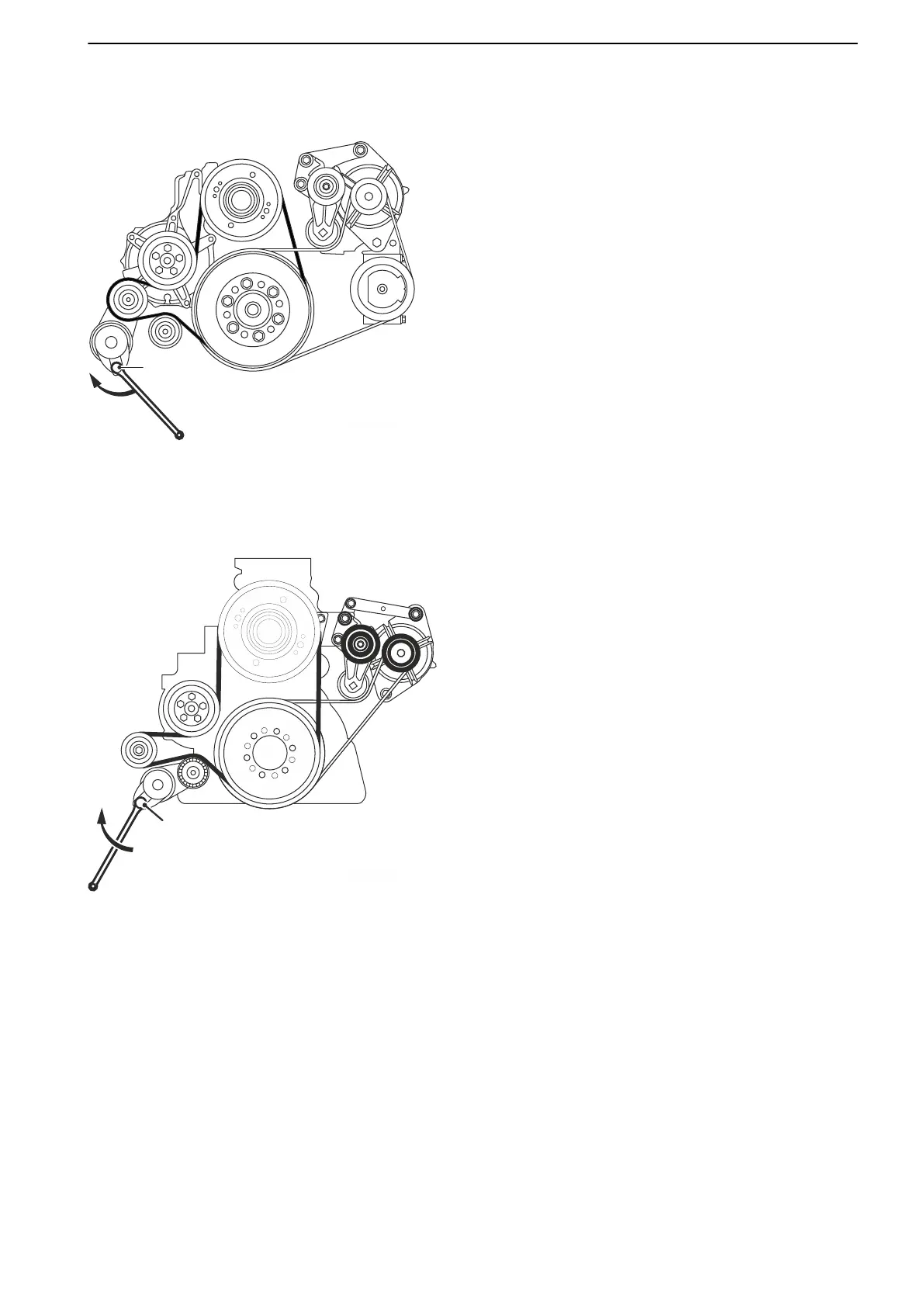

4 Insert a 1/2” square wrench in the belt tensioner (1).
Lift the wrench and remove the drive belt.
5 Thread the drive belt round the fan and remove it.
6 Check that the pulleys are clean and undamaged.
7 Thread the new drive belt over the fan.
8 Lift the 1/2" wrench and install the new drive belt.
9 Install the belt guards.
10 Install the fan guard and fan ring round the cooling
fan.
11 Start the engine and do a function check.
TAD1640GE-B, TAD1641GE-B, TAD1642GE-B, TAD1650GE,
TAD1651GE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B,
TAD1643VE, TAD1643VE-B, TAD1650VE, TAD1650VE-B,
TAD1651VE
TWD1643GE, TWD1644GE, TWD1645GE, TWD1652GE,
TWD1653GE
Maintenance
47711296 01-2019 © AB VOLVO PENTA 67
