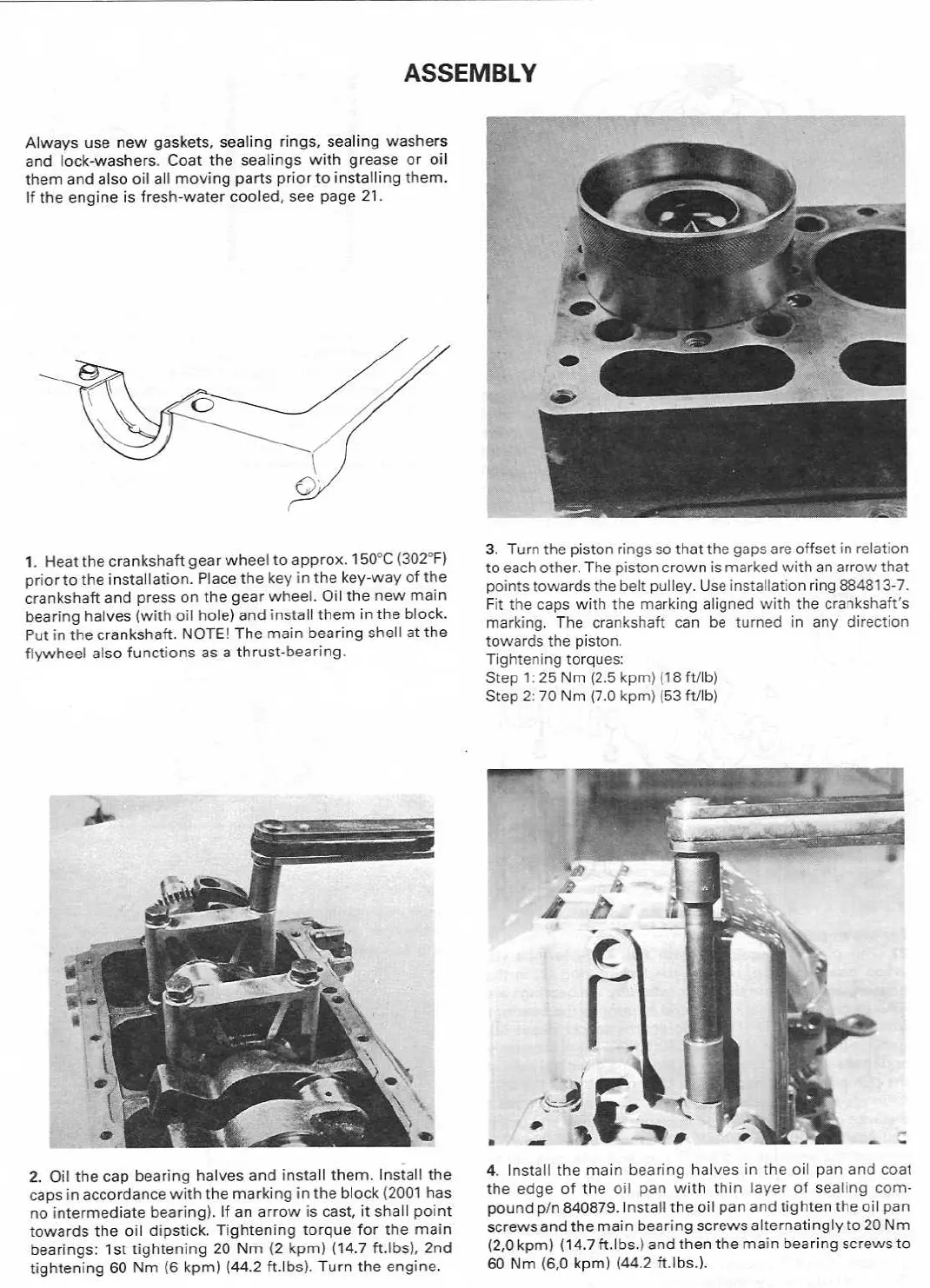

Always use new gaskets,
sealing rings, sealing washers
and
lock-washers . Coat the sealings with grease or
oil
them and also oil
all moving parts prior to installing them .
If
the
engine is fresh-water cooled, see page
21 .
1 . Heat the crankshaft
gearwheel to approx .
150°C (302 ° F)
prior to
the installation . Place the
key in the key-way of the
crankshaft and press
on the gear wheel .
Oil
the
new main
bearing halves (with oil hole) and
install them in the block .
Put in
the crankshaft . NOTE! The main bearing
shell at the
flywheel
also functions as a thrust-bearing
.
ASSEMBLY
2 . Oil the cap bearing halves
and install them . Install the
caps in accordance with
the marking in the block (2001 has
no intermediate
bearing) . If an arrow is cast, it shall
point
towards the oil dipstick .
Tighteningtorque for the main
bearings : 1st tightening 20 N m (2 kpm) (14 .7 ft .lb),
2nd
tightening 60 Nm (6 kpm)
(44 .2 ft .lbs) . Turn the engine .
3 .
Turn
the piston
rings
so that the gaps
are offset in relation
to each
other . The
piston
crown is marked withan arrow that
points towards the belt pulley . Use installation ring 884813-7
.
Fit
the caps
with the marking aligned with the crankshaft's
marking . The crankshaft can be turned in any direction
towards the piston
.
Tightening torques :
Step
1 :
25
Nm (2
.5 kpm)
(18
ft/lb)
Step 2 : 70 Nm (7 .0 kpm) (53
ft/lb)
4 . Install the main bearing halves
in
the
oil pan
and coat
the edge of the
oil pan with thin layer of sealing
compound
p/n
840879 .
Install the oil panand tighten the oil pan
screws
and the main bearing screws
alternatingly to 20 Nm
(2,0 kpm) (14 .7 ft .lbs .)
and then the main bearing screws to
60 Nm (6,0
kpm) (44 .2
ft .lbs .) .
