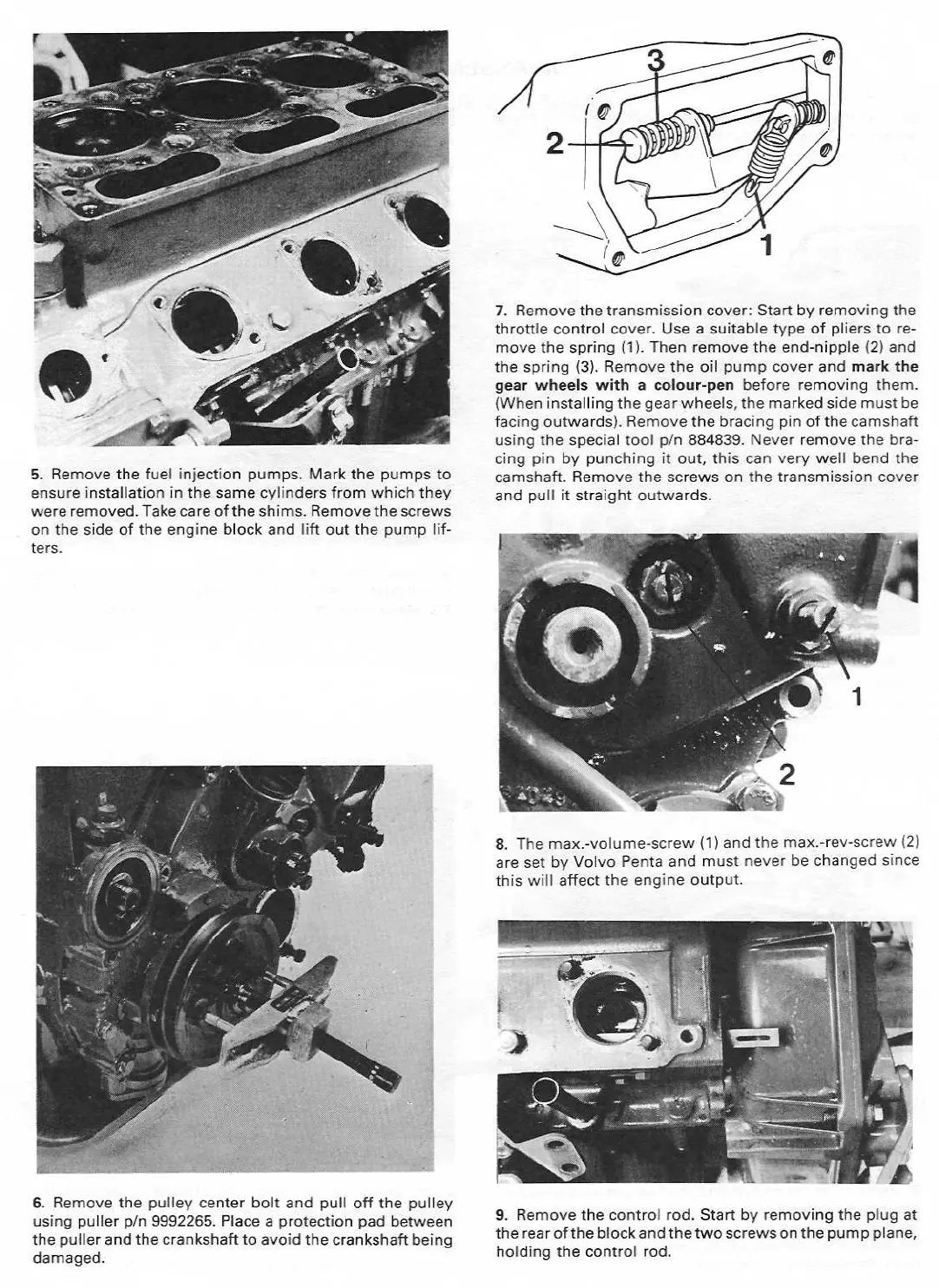

5 . Remove the fuel injection pumps . Mark the pumps to
ensure installation in the same cylinders fromwhich they
were removed . Take care of the shims . Remove the screws
on the side of the engine block and lift out the pump
lifters .
6. Remove the pulley center bolt and pull off the pulley
using puller
p/n
9992265 . Place
a protection padbetween
the puller and the crankshaft to avoid the crankshaft being
damaged .
7 . Remove the transmission cover : Start by removing the
throttle
control cover . Usea suitable type of pliers to
remove the spring (1) . Then remove the end-nipple (2) and
the spring (3) . Remove the oil pump cover and mark the
gear wheels with a colour-pen before
removing them .
(When installing the gear wheels, the marked side must be
facing outwards) . Remove the bracing pin of the camshaft
using the special tool
p/n
884839 . Never remove the
bracing pin by punching it out, this can very well bend the
camshaft . Remove the screws on the transmission cover
and pull it straight outwards .
8 . The max .-volume-screw
(1) and the max .-rev-screw (2)
are set by
Volvo Penta and must never be
changed since
this
will
affect the engineoutput
.
9 . Remove the control rod . Start by removing the plug at
the rearof the block and thetwo screws on the pump plane,
holding the control rod .
