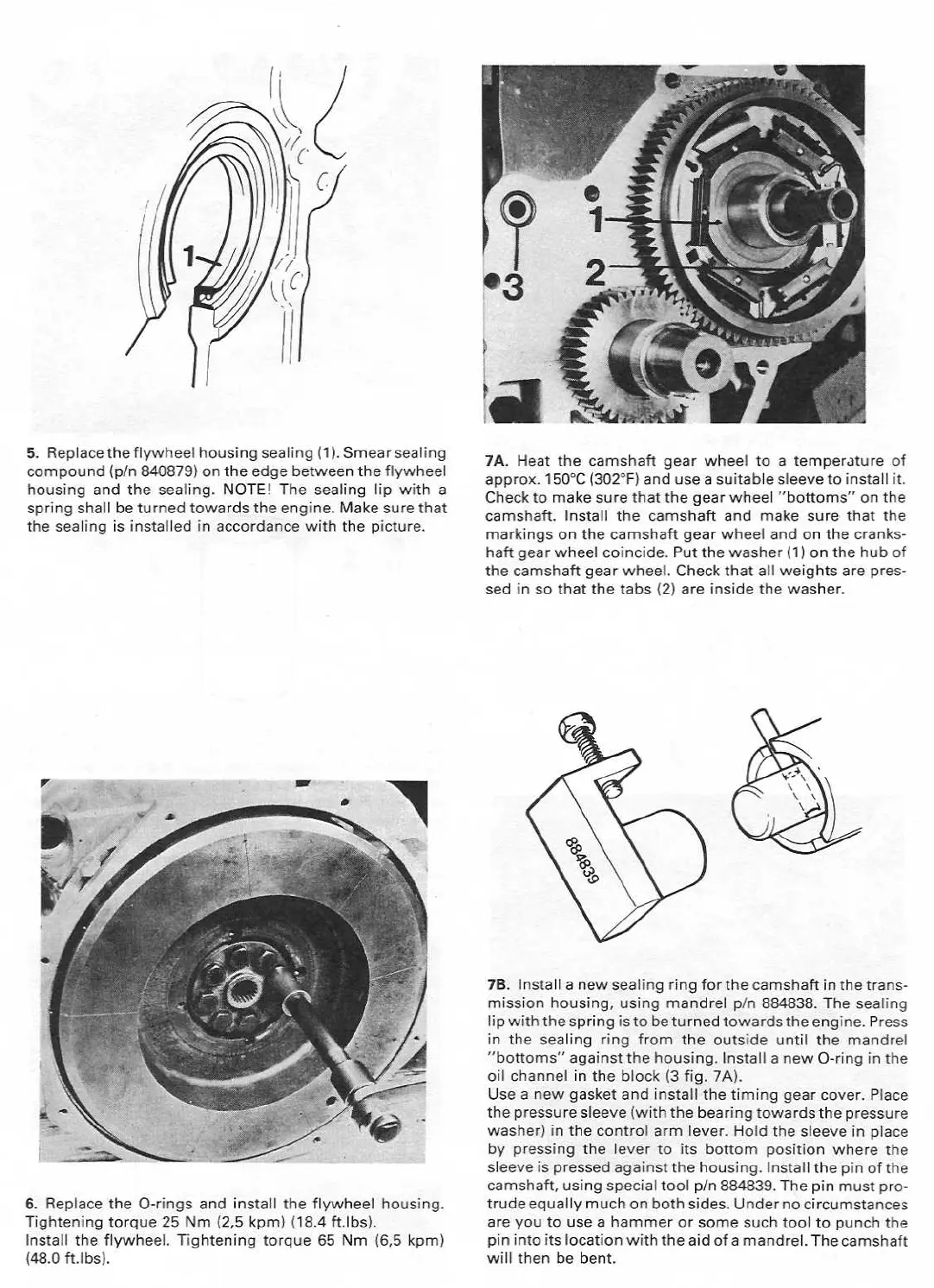

5 . Replace the
flywheel housing sealing (1) . Smear sealing
compound (p/n 840879) on the edge between the flywheel
housing and the sealing . NOTE! The sealing lip with a
spring shall beturned towards the engine . Make sure that
the sealing is installed in accordance with the picture .
r
6 . Replace the O-rings and install the flywheel housing .
Tightening torque 25 Nm (2,5 kpm) (18 .4 ft .lbs) .
Install the flywheel . Tighteningtorque65 Nm (6,5 kpm)
(48 .0 ft .lbs).
7A . Heat the camshaft gear wheel to a temperature of
approx . 150°C (302°F) anduse a suitable sleeve to install it .
Check to make sure
that the
gear
wheel "bottoms" on the
camshaft . Install the camshaft and make sure that the
markings on the camshaft gear
wheel
and on
the
crankshaft
gear wheel coincide . Put the washer (1) on the hub of
the camshaftgear
wheel .
Check that
all weights
are pressed
in so that the tabs (2) are inside the washer .
7B . Install
anew sealing ring for the camshaft in the
transmission housing, using mandrel
p/n
884838 . The sealing
lip with
thespring is to beturnedtowards the engine . Press
in the sealing ring from
the outside until the mandrel
"bottoms" against the housing . Install a new O-ring in the
oil channel in
the block (3 fig . 7A) .
Use a new gasket and install the timing gear
cover
.
Place
the pressure sleeve (with the bearing towards the pressure
washer) in the control arm lever . Hold the
sleeve in place
by pressing the lever to its bottom position where the
sleeve is pressed against the housing . Install
the pin of the
camshaft, using special tool
p/n
884839 . The pin must
protrude equally much on both sides . Underno circumstances
are you to use a hammer or some such
tool to punch the
pin
into its location with the aid of a mandrel . The camshaft
will then be bent .
